Wilwood Front AERO6 Six-Piston Brake Kit for Corvette C7 (2014–2019), Red Calipers, 14-Inch SRP

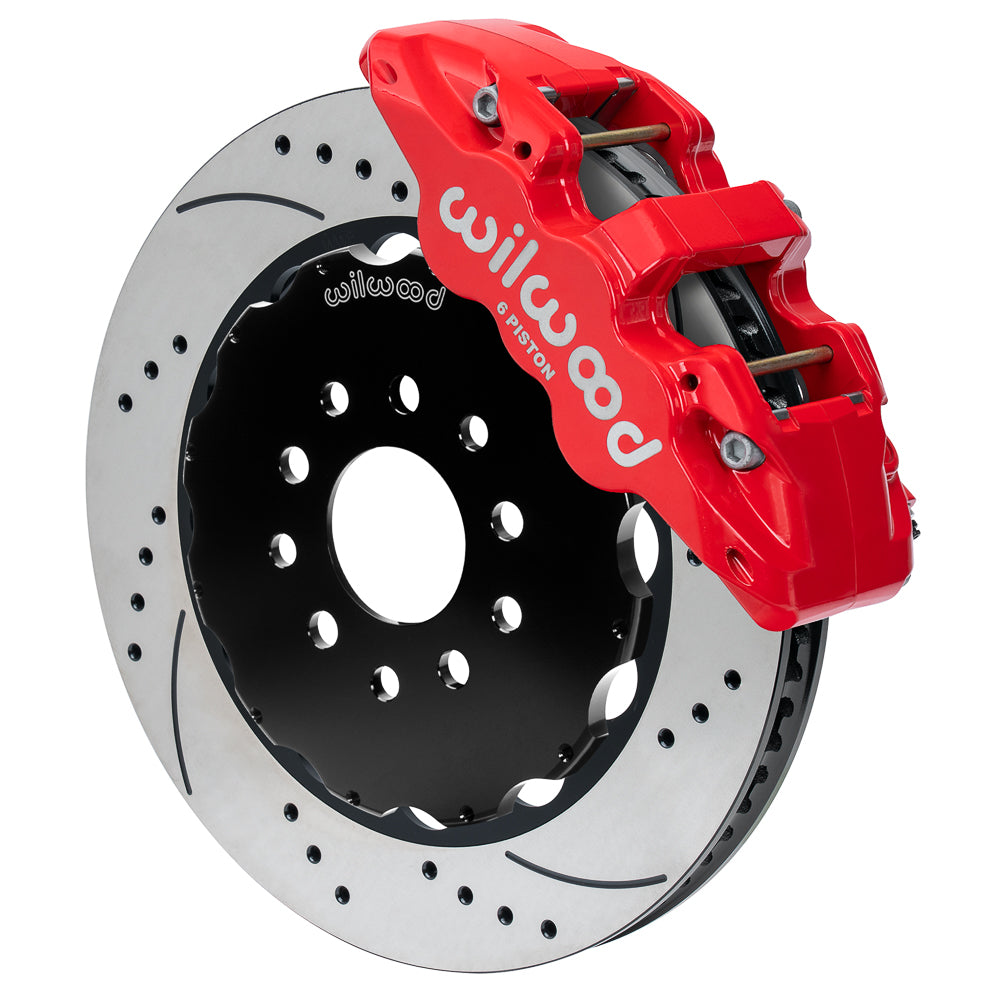

Red AERO6 calipers mount with Wilwood 14-inch SRP rotors on the specified Corvette C7 front assembly. Verify the trim and required hydraulic lines. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

• Manufacturer part number: 140-18535-DR
• Brake calipers: For this package, the forged aluminum calipers have red powder coat exteriors and stainless pistons, 6 per caliper.
• Rotor geometry: Each rotor is 1.25 inch wide with a 14.00-inch outside diameter; the vented spec-37 iron design has srp drilled and slotted surfaces.
• Installation interfaces: Confirm radial mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 18-inch minimum package.

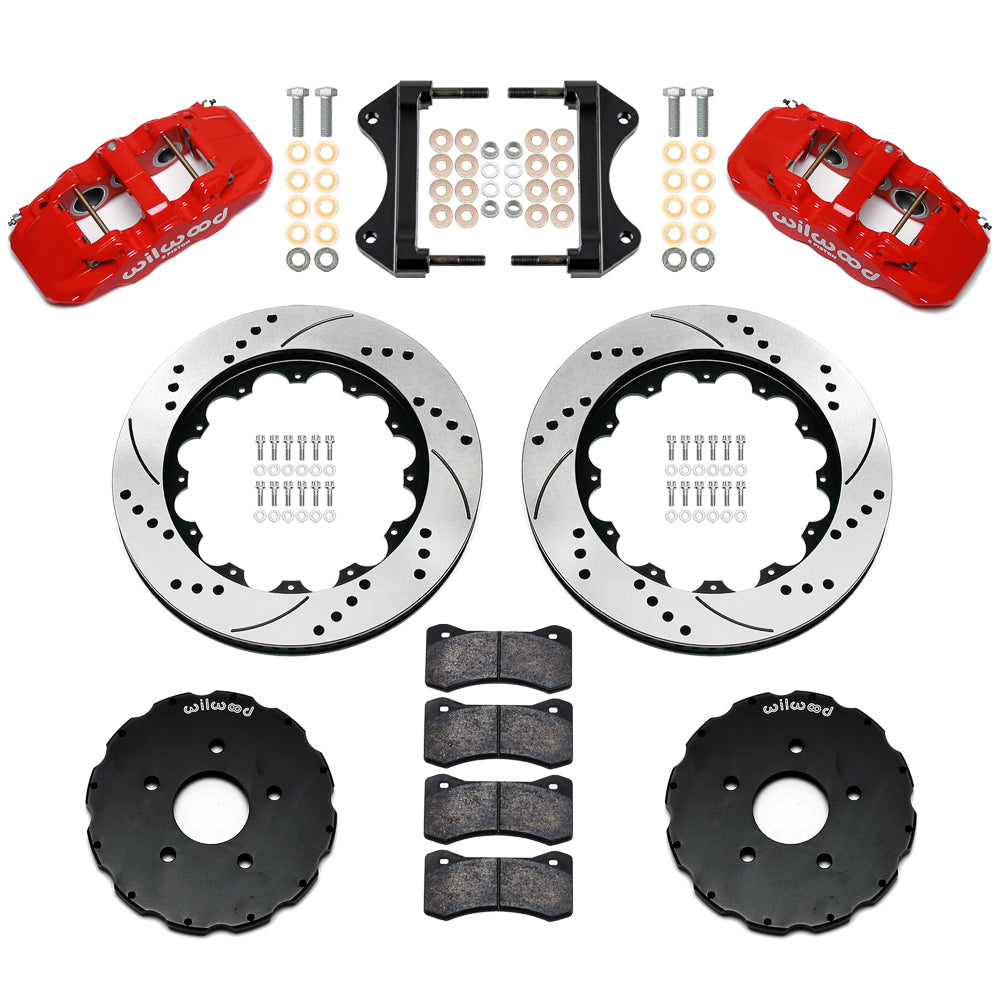

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

DS-1730 defines the AERO6 mounting arrangement for 2014–2019 C7 uprights and hubs. Consult the table below for the separate Stingray, Z51, Z06, Grand Sport and ZR1 year limits. Verify the existing components, select compatible flexlines and check the 18-inch-wheel template; factory trim alone does not establish that the original brake hardware can be reused.

Manufacturer Documents

• Wilwood DS1730 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
