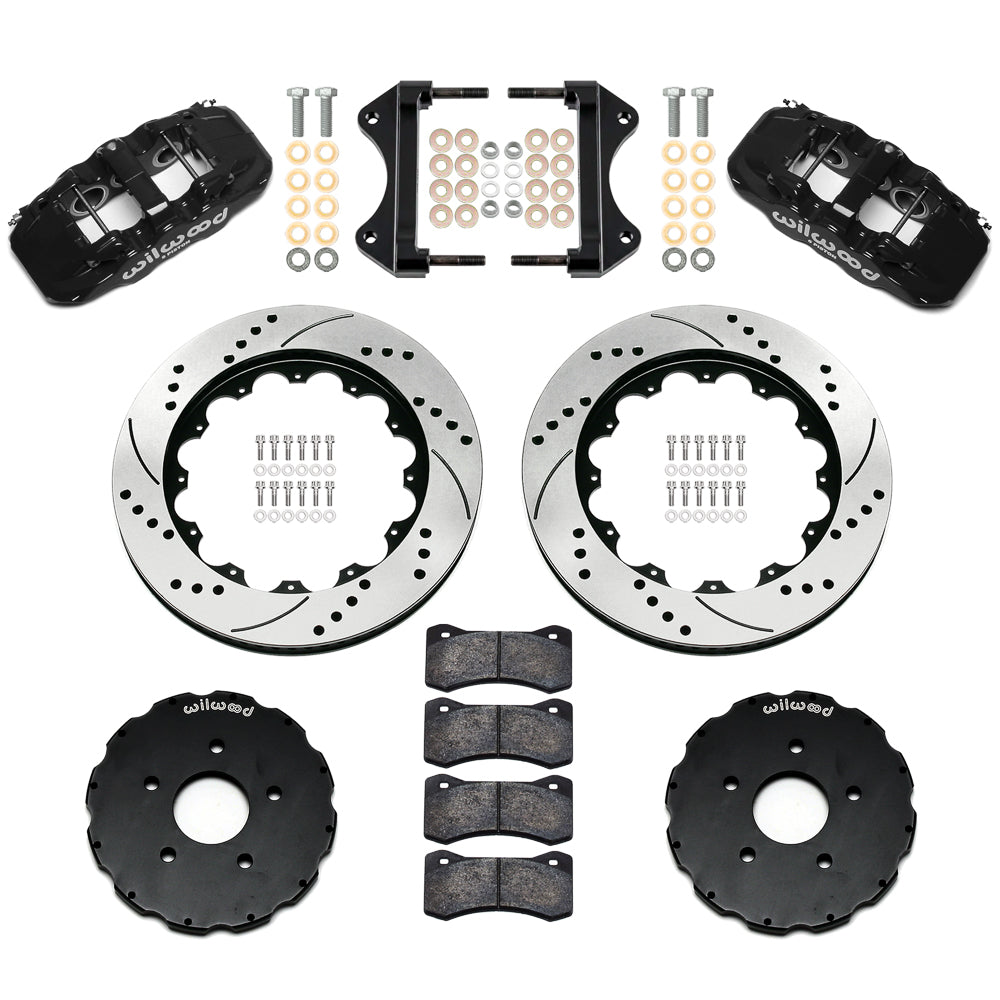

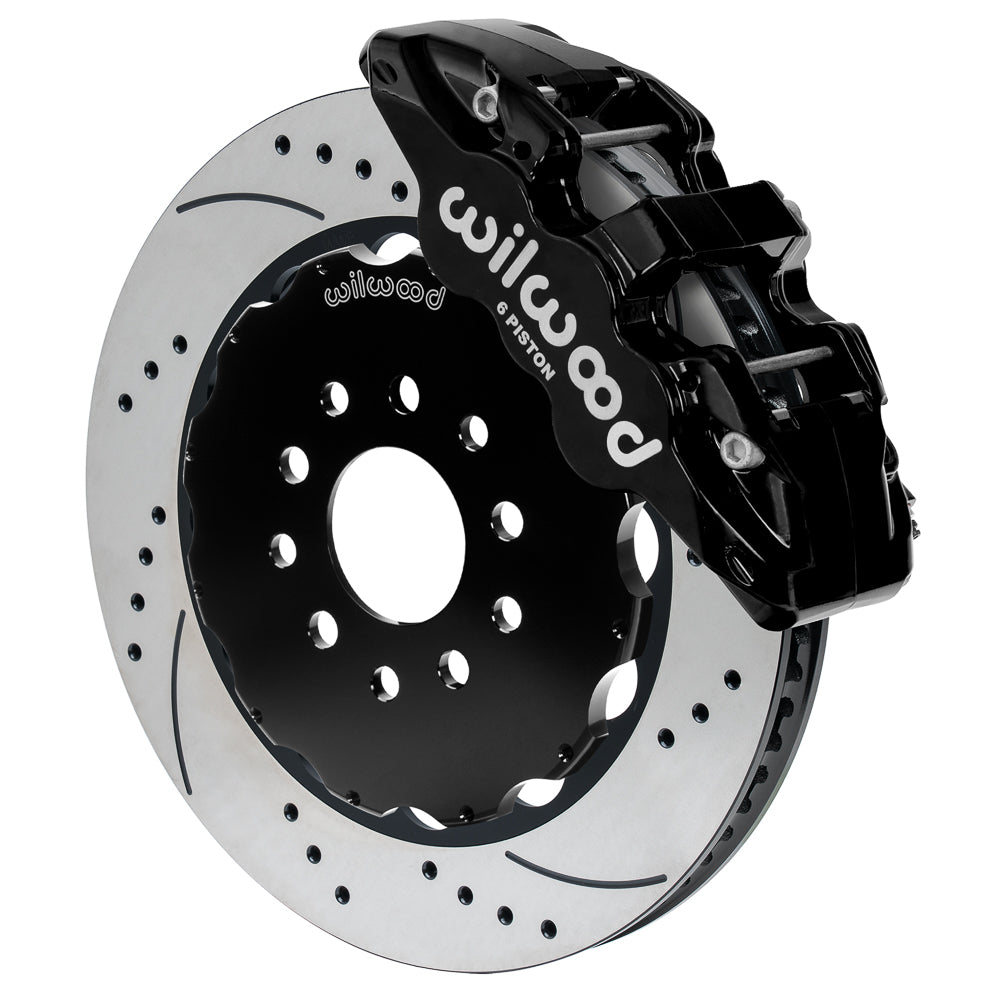

Wilwood Front Black AERO6 and Drilled/Slotted 14-Inch Rotor Kit for Corvette C7 (2014–2019)

Wilwood Corvette C7 front brakes use black AERO6 calipers with 14-inch SRP rotors. Check the instructions for the complete mounting and wheel envelope. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

• Manufacturer part number: 140-18535-D
• Rotor material and size: Choose this 14.00 x 1.25-inch srp drilled and slotted rotor configuration. The rotor material is spec-37 iron and its construction is vented.
• Caliper specification: Finish selection is black powder coat. Each forged aluminum caliper carries 6 pistons with stainless construction.
• Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified radial mounting layout.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 18 inches.
• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

DS-1730 defines the AERO6 mounting arrangement for 2014–2019 C7 uprights and hubs. Consult the table below for the separate Stingray, Z51, Z06, Grand Sport and ZR1 year limits. Verify the existing components, select compatible flexlines and check the 18-inch-wheel template; factory trim alone does not establish that the original brake hardware can be reused.

Manufacturer Documents

• Wilwood DS1730 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
