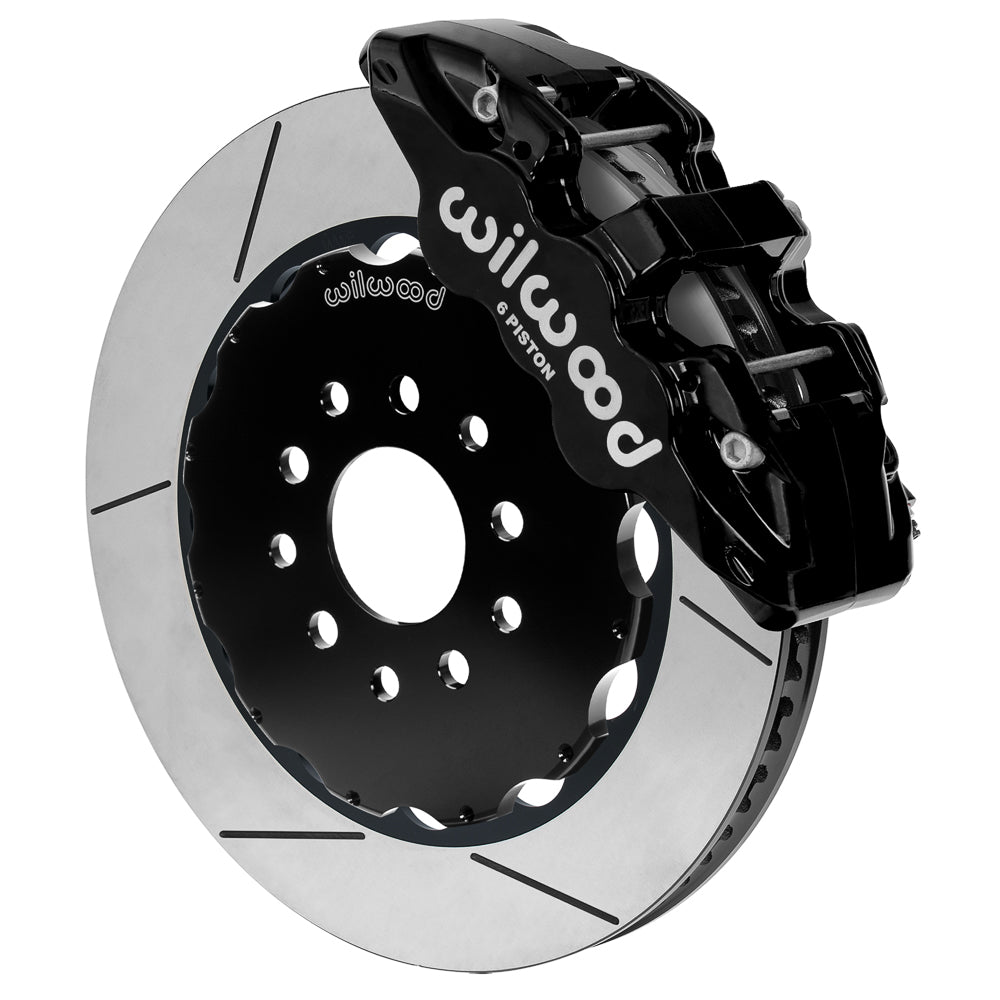

Wilwood Front AERO6 Brake Kit, Black Calipers/14-Inch GT Rotors, Corvette C7 (2014–2019)

AERO6 six-piston calipers in black and 14-inch GT rotors form this Wilwood Corvette C7 front kit. Confirm the upright/hub and separate line setup. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.

Technical Details

• Manufacturer part number: 140-18535
• Calipers supplied: 6-piston forged aluminum construction; piston material stainless; external finish black powder coat.
• Rotor selection: Diameter 14.00 in; width 1.25 in. The selected rotor has a gt slotted face and vented spec-37 iron construction.
• Fluid connections: Use the radial-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: An 18-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.

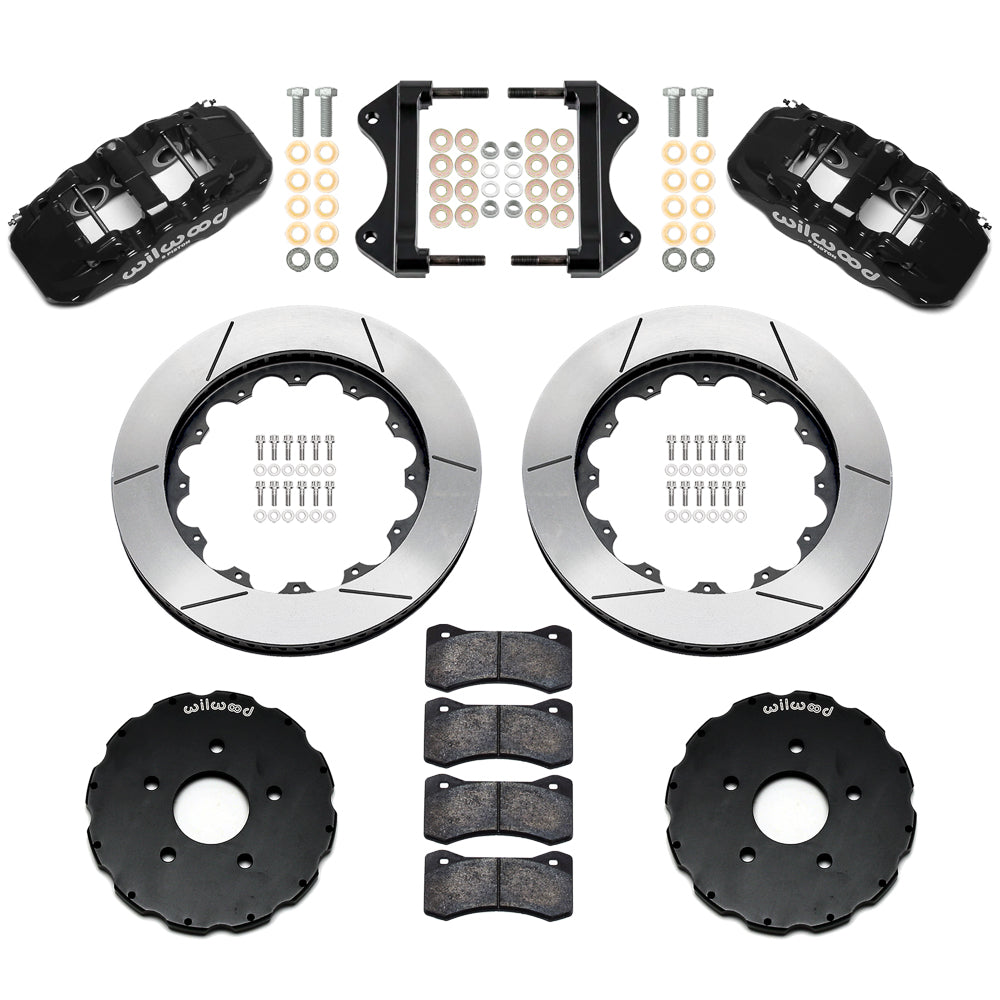

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-20 compound for this rotor configuration.

Fitment & Compatibility

DS-1730 defines the AERO6 mounting arrangement for 2014–2019 C7 uprights and hubs. Consult the table below for the separate Stingray, Z51, Z06, Grand Sport and ZR1 year limits. Verify the existing components, select compatible flexlines and check the 18-inch-wheel template; factory trim alone does not establish that the original brake hardware can be reused.

Manufacturer Documents

• Wilwood DS1730 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
