Wilwood Front 14-Inch GT Conversion with Red XRS6R Calipers for Corvette C7 (2014–2019)

For Corvette C7 front brakes, this Wilwood kit combines red XRS6R calipers and 14-inch GT rotors. Verify hub fit and 18-inch-wheel clearances. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

• Manufacturer part number: 140-18534-R
• Brake calipers: For this package, the forged aluminum calipers have red powder coat exteriors and stainless pistons, 6 per caliper.
• Rotor geometry: Each rotor is 1.25 inch wide with a 14.00-inch outside diameter; the vented spec-37 iron design has gt slotted surfaces.
• Installation interfaces: Confirm radial mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 18-inch minimum package.

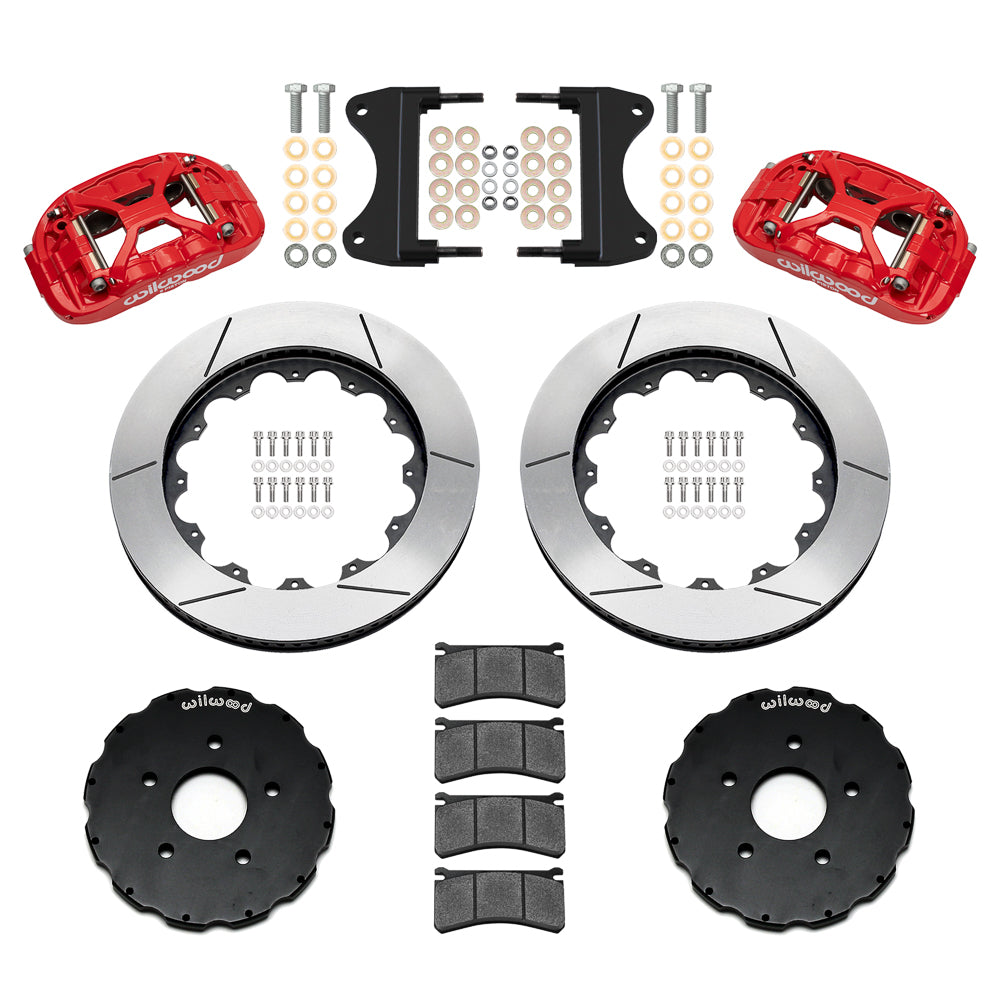

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-20 compound for this rotor configuration.

Fitment & Compatibility

Compare the 14.00-inch assembly in DS-1729 with the car and the table below. Stingray, Z51, Z06, Grand Sport and ZR1 have individual supported year ranges within 2014–2019; identify the actual upright, hub and brake package. This kit excludes flexlines. An 18-inch wheel is only a starting point: the spoke and barrel must clear the drawing.

Manufacturer Documents

• Wilwood DS1729 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
