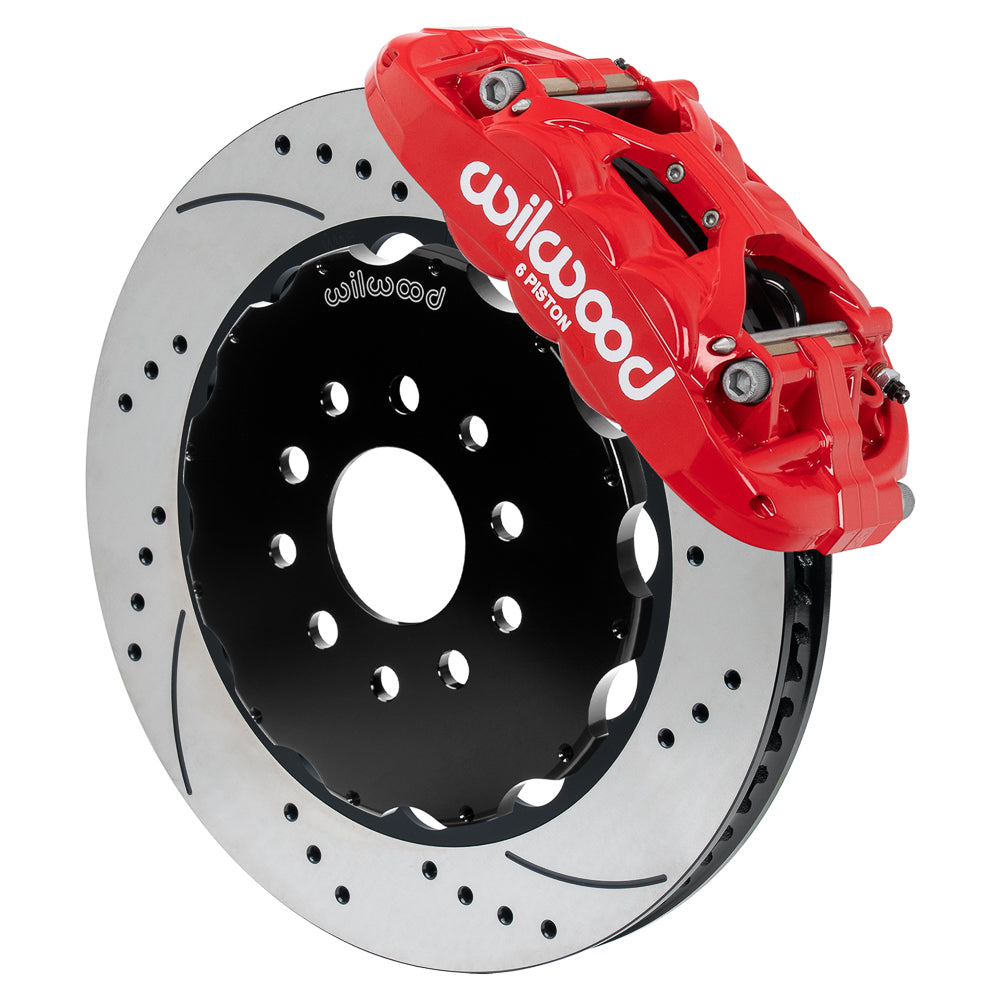

Wilwood Front Red XRS6R Brake Set with 14-Inch Drilled/Slotted Rotors, Corvette C7 (2014–2019)

Install the matched red XRS6R and 14-inch SRP arrangement on Corvette C7 front uprights. Check the Wilwood trim application and wheel template. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.

Technical Details

• Manufacturer part number: 140-18534-DR
• Rotor material and size: Choose this 14.00 x 1.25-inch srp drilled and slotted rotor configuration. The rotor material is spec-37 iron and its construction is vented.
• Caliper specification: Finish selection is red powder coat. Each forged aluminum caliper carries 6 pistons with stainless construction.
• Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified radial mounting layout.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 18 inches.

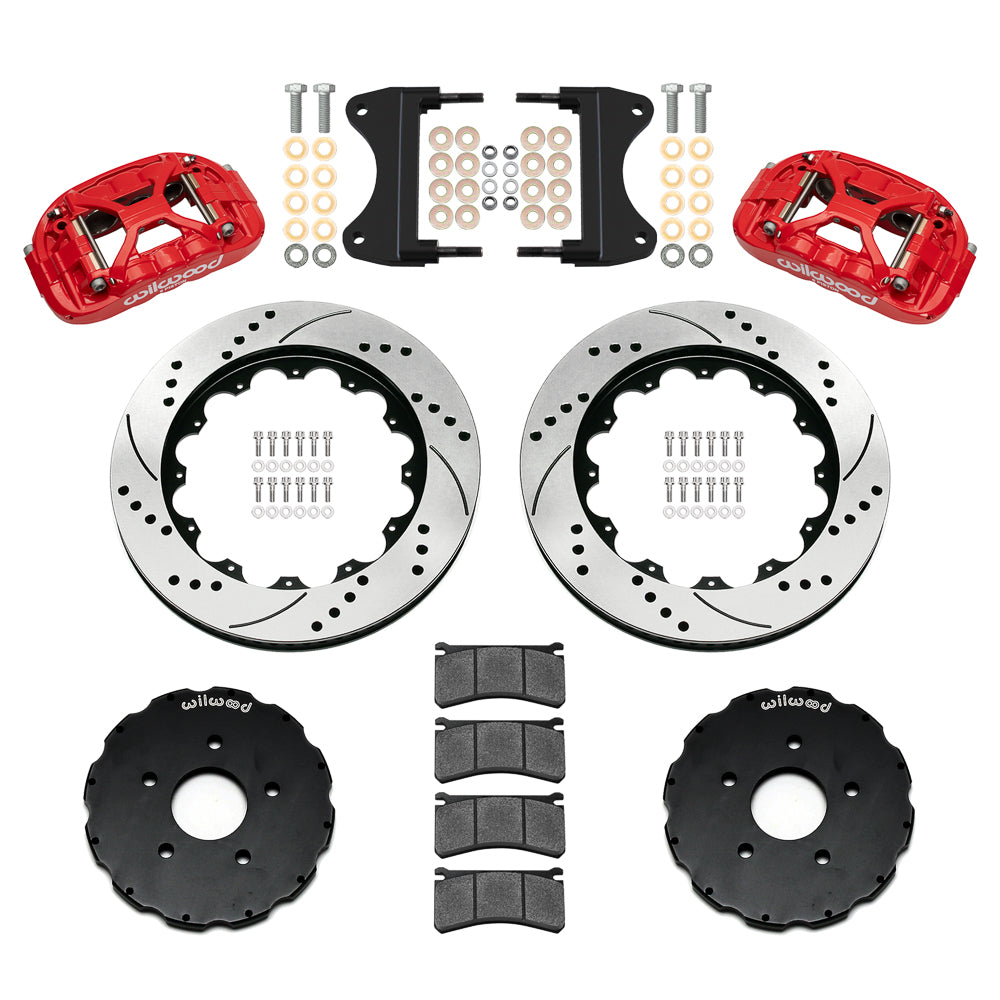

• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

Compare the 14.00-inch assembly in DS-1729 with the car and the table below. Stingray, Z51, Z06, Grand Sport and ZR1 have individual supported year ranges within 2014–2019; identify the actual upright, hub and brake package. This kit excludes flexlines. An 18-inch wheel is only a starting point: the spoke and barrel must clear the drawing.

Manufacturer Documents

• Wilwood DS1729 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
