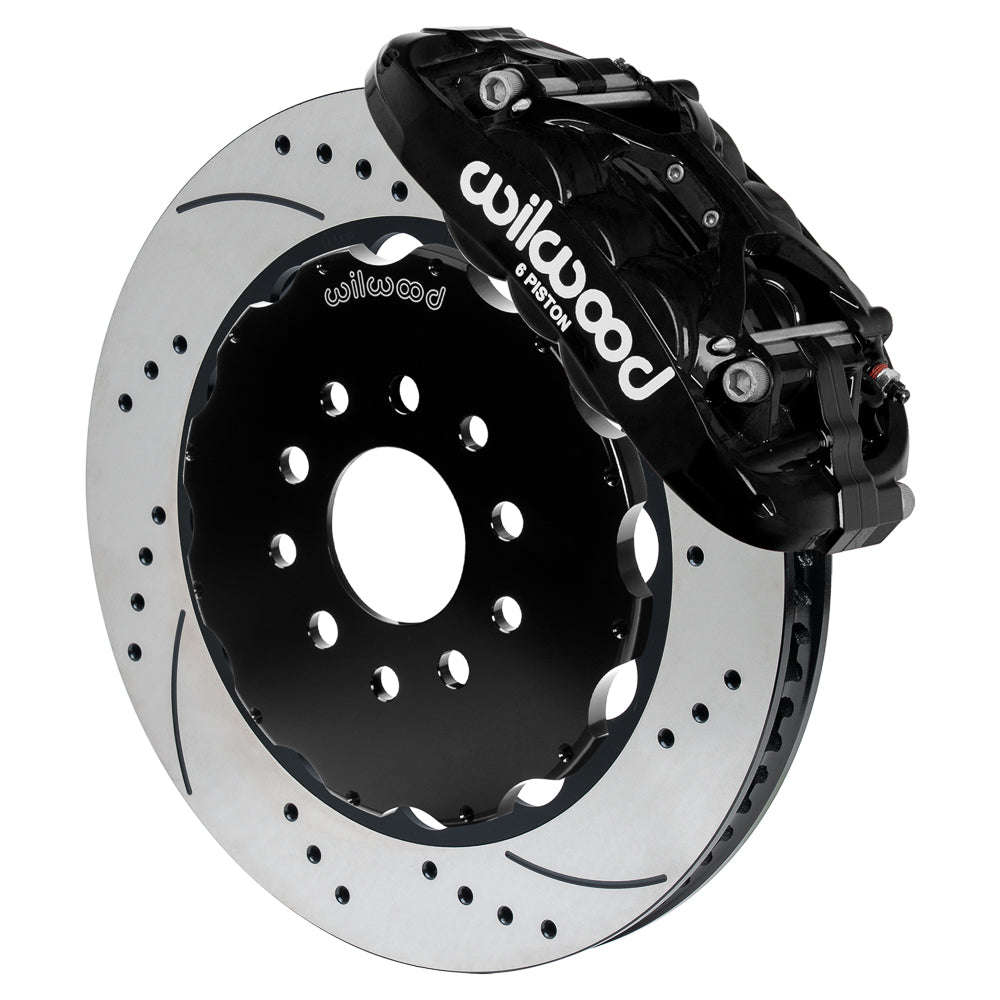

Wilwood Front SRP Rotor and Black XRS6R Kit, Corvette C7 (2014–2019), 14-Inch Rotors

Black XRS6R calipers and 14-inch SRP front rotors provide the Wilwood Corvette C7 conversion. Confirm radial mounting and supply suitable flexlines. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-18534-D
• Calipers supplied: 6-piston forged aluminum construction; piston material stainless; external finish black powder coat.
• Rotor selection: Diameter 14.00 in; width 1.25 in. The selected rotor has a srp drilled and slotted face and vented spec-37 iron construction.
• Fluid connections: Use the radial-mount bracket arrangement and fittings matched to the 1/8-27 NPT caliper inlet.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: An 18-inch wheel is a starting dimension. Confirm the full wheel profile with the kit drawing.

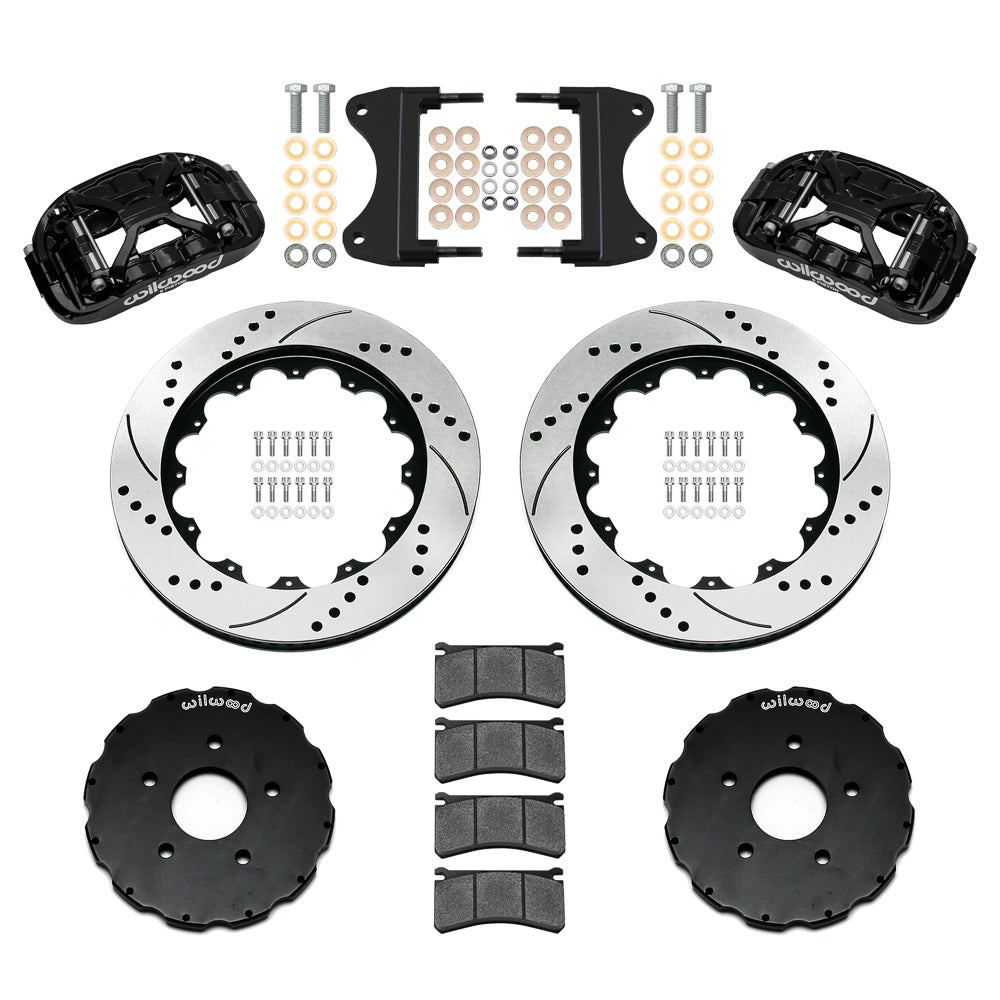

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

Compare the 14.00-inch assembly in DS-1729 with the car and the table below. Stingray, Z51, Z06, Grand Sport and ZR1 have individual supported year ranges within 2014–2019; identify the actual upright, hub and brake package. This kit excludes flexlines. An 18-inch wheel is only a starting point: the spoke and barrel must clear the drawing.

Manufacturer Documents

• Wilwood DS1729 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
