Wilwood Front 14-Inch XRS6R Brakes for Corvette C7 (2014–2019), Black Calipers, GT Rotors

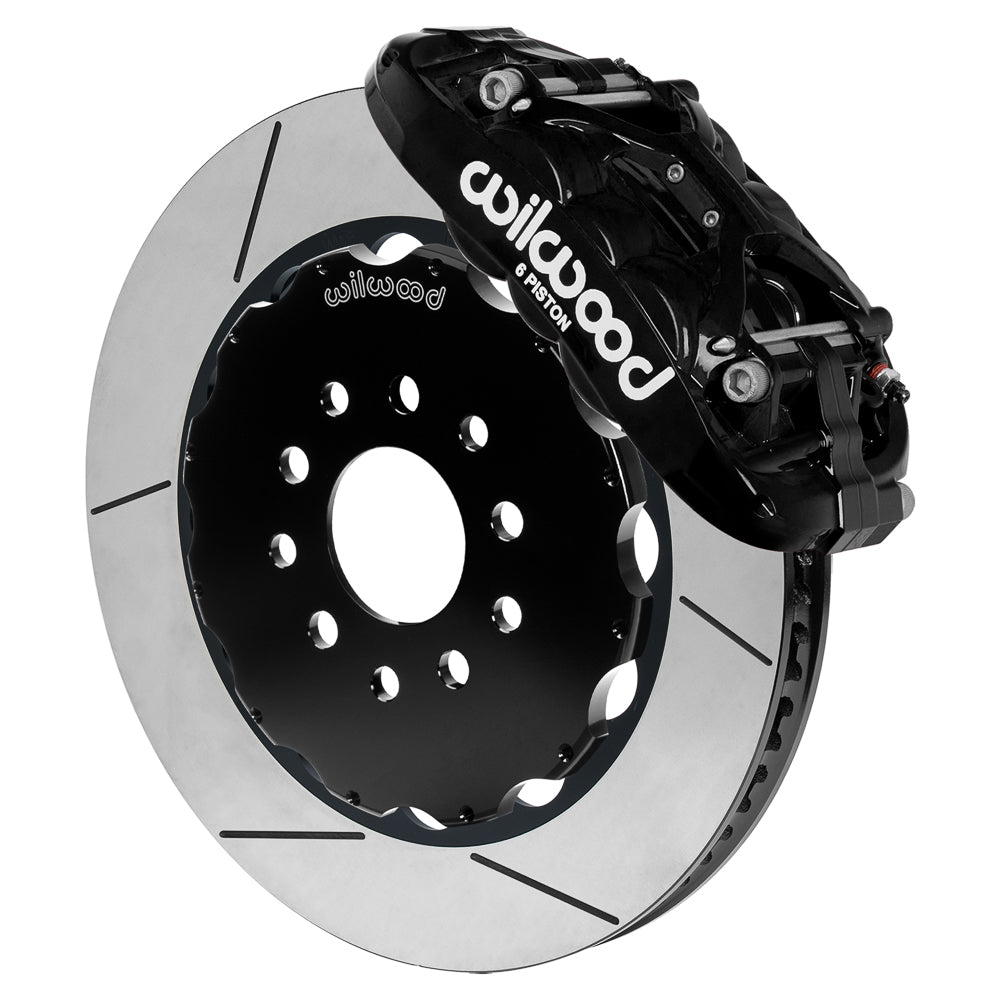

This Wilwood Corvette C7 front assembly uses black XRS6R calipers and 14-inch GT rotors. Compare the kit drawing with the actual upright and wheel profile. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

• Manufacturer part number: 140-18534
• Rotating brake parts: Vented spec-37 iron rotors measure 14.00 inches across by 1.25 inch thick, with gt slotted friction surfaces.
• Service calipers: The black powder coat calipers use forged aluminum bodies and 6 stainless pistons apiece.
• Attachment requirements: The caliper uses a radial mount and accepts the specified 1/8-27 NPT inlet fitting.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: The nominal 18-inch wheel requirement is conditional on the actual spoke and barrel shape.

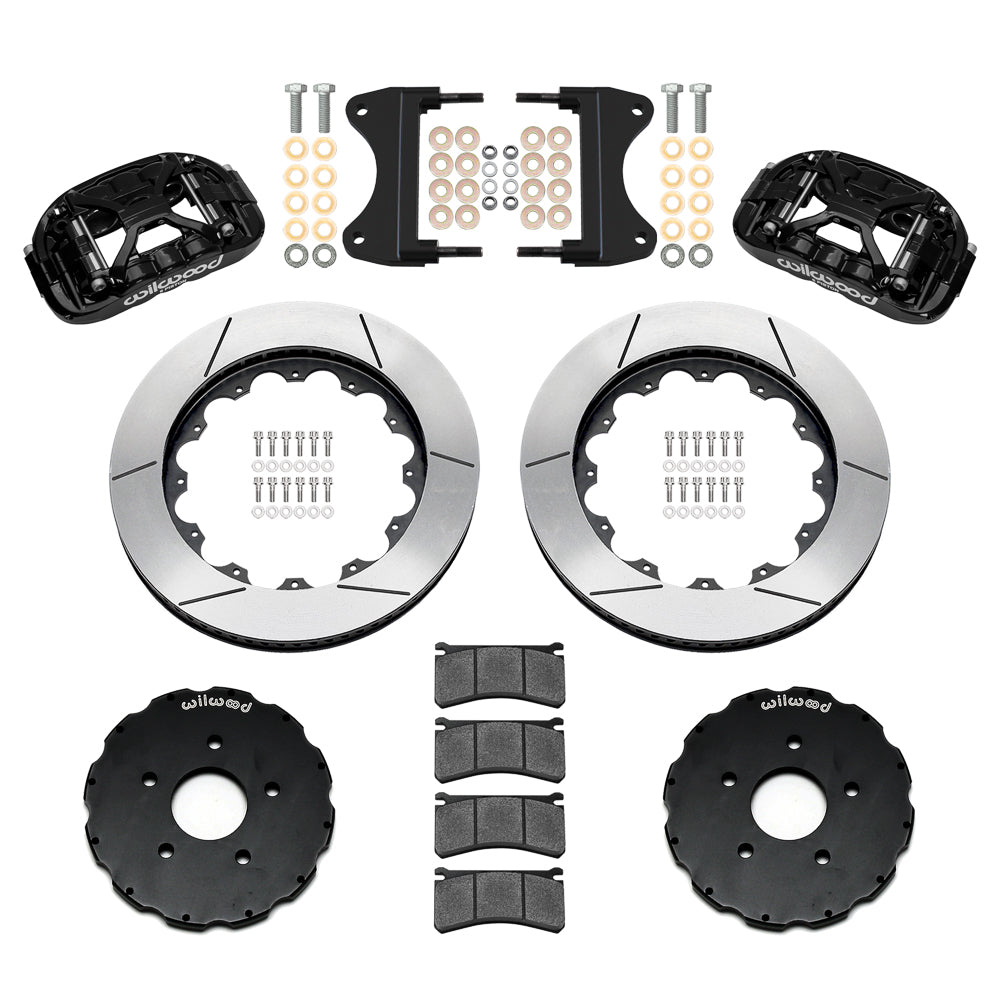

• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-20 compound for this rotor configuration.

Fitment & Compatibility

Compare the 14.00-inch assembly in DS-1729 with the car and the table below. Stingray, Z51, Z06, Grand Sport and ZR1 have individual supported year ranges within 2014–2019; identify the actual upright, hub and brake package. This kit excludes flexlines. An 18-inch wheel is only a starting point: the spoke and barrel must clear the drawing.

Manufacturer Documents

• Wilwood DS1729 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
