Wilwood Front FNSL6R Caliper and 14-Inch SRP Rotor Set, Black, Corvette C7 (2014–2019)

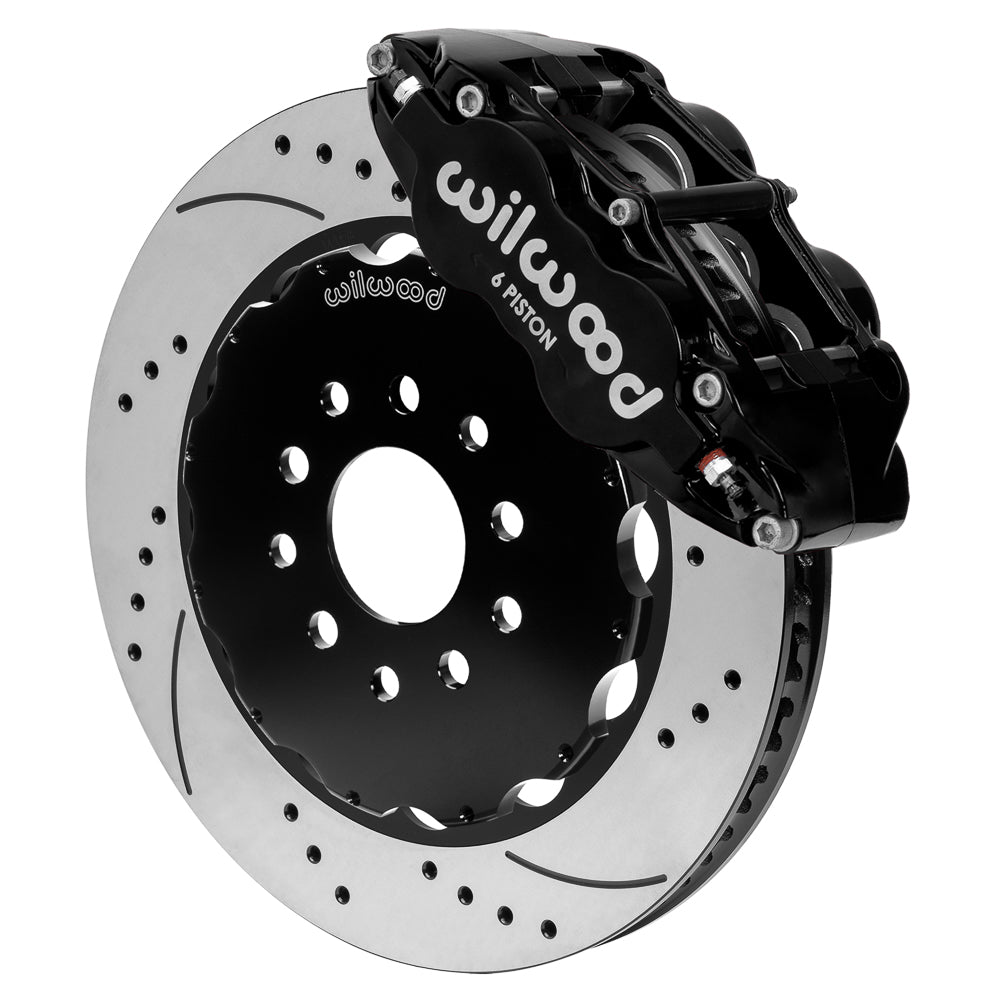

Wilwood Corvette C7 front package with black Superlite 6R calipers and 14-inch SRP rotors. Verify upright mounting; hydraulic lines are separate. Bill Wood established Wilwood Engineering in 1977. From its base in Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, rotors, master cylinders, valves, fittings and brake lines. Individual parts are matched to complete motorsport, street-performance or specialized installations.

Technical Details

• Manufacturer part number: 140-18532-D
• Caliper construction: Caliper bodies are forged aluminum, finished in black powder coat; each has 6 pistons made from stainless.
• Rotor dimensions and face: The srp drilled and slotted option uses spec-37 iron, a 14.00-inch outside diameter and a 1.25-inch running width. Rotor construction is vented.
• Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: radial.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Use the manufacturer wheel template even when the wheel is 18 inches or larger.

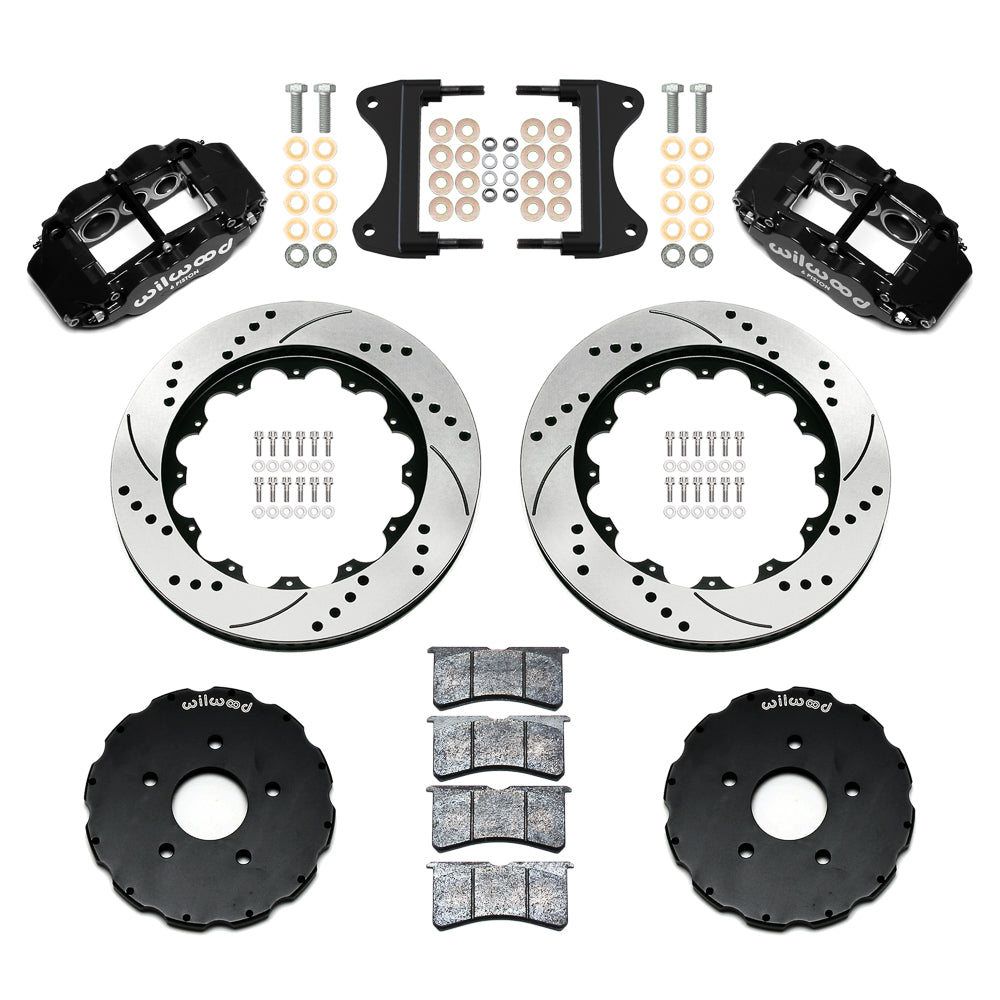

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

Follow DS-1728 for the 14.00-inch configuration and compare the installed upright/hub with the specified assembly. The table below includes Stingray, Z51, Z06, Grand Sport and ZR1 applications with different year limits; it does not make their factory brake packages identical. Check the individual trim row, choose separate compatible flexlines and test the wheel template. Wilwood lists a nominal 18-inch minimum, subject to actual wheel shape.

Manufacturer Documents

• Wilwood DS1728 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
