Wilwood Front 13.06-Inch SRP Brake Kit, Red FNSL6R Calipers, Corvette C7 (2014–2019)

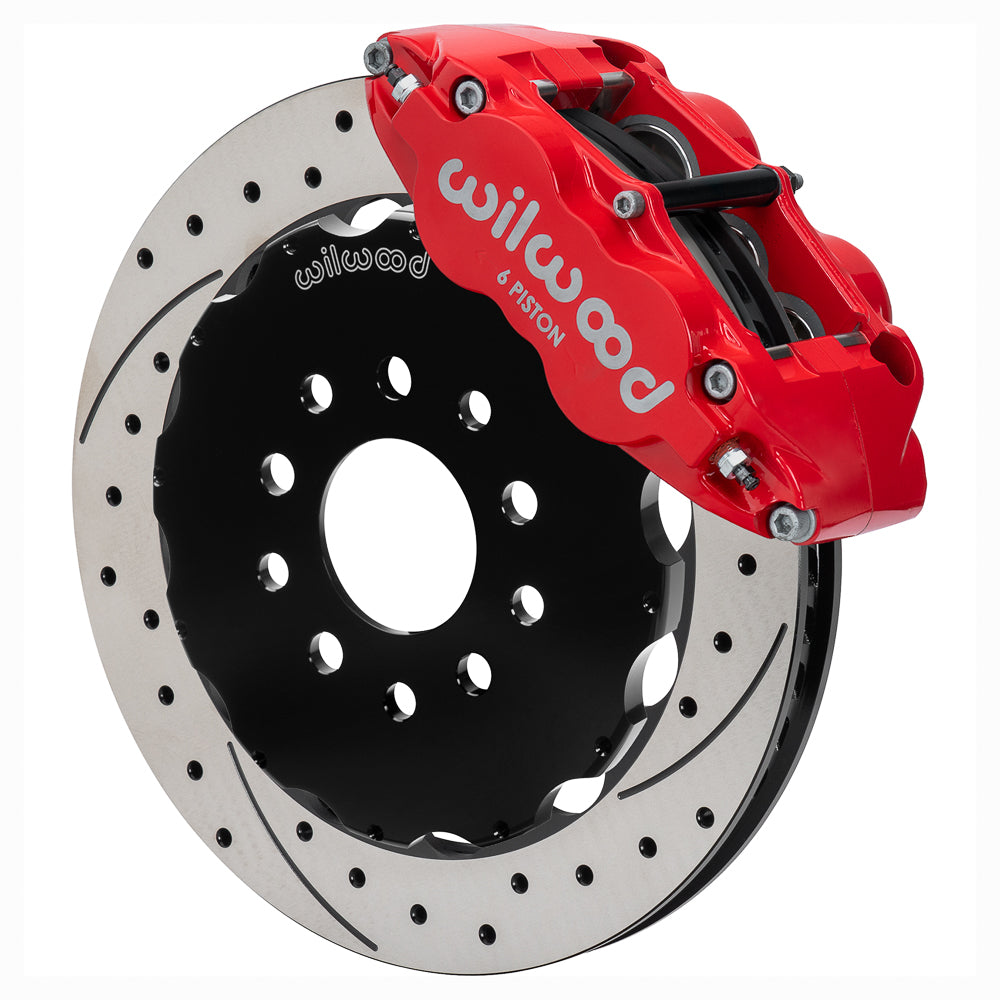

Red FNSL6R calipers and 13.06-inch drilled/slotted rotors form this Wilwood Corvette C7 front conversion. Confirm the hub arrangement and wheel fit. Wilwood Engineering, founded by Bill Wood in 1977, is based in Camarillo, California. It designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and lines must be selected to suit the complete braking system.

Technical Details

• Manufacturer part number: 140-18531-DR
• Caliper construction: Caliper bodies are forged aluminum, finished in red powder coat; each has 6 pistons made from stainless.
• Rotor dimensions and face: The srp drilled and slotted option uses spec-37 iron, a 13.06-inch outside diameter and a 1.25-inch running width. Rotor construction is vented.
• Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: radial.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Use the manufacturer wheel template even when the wheel is 17 inches or larger.

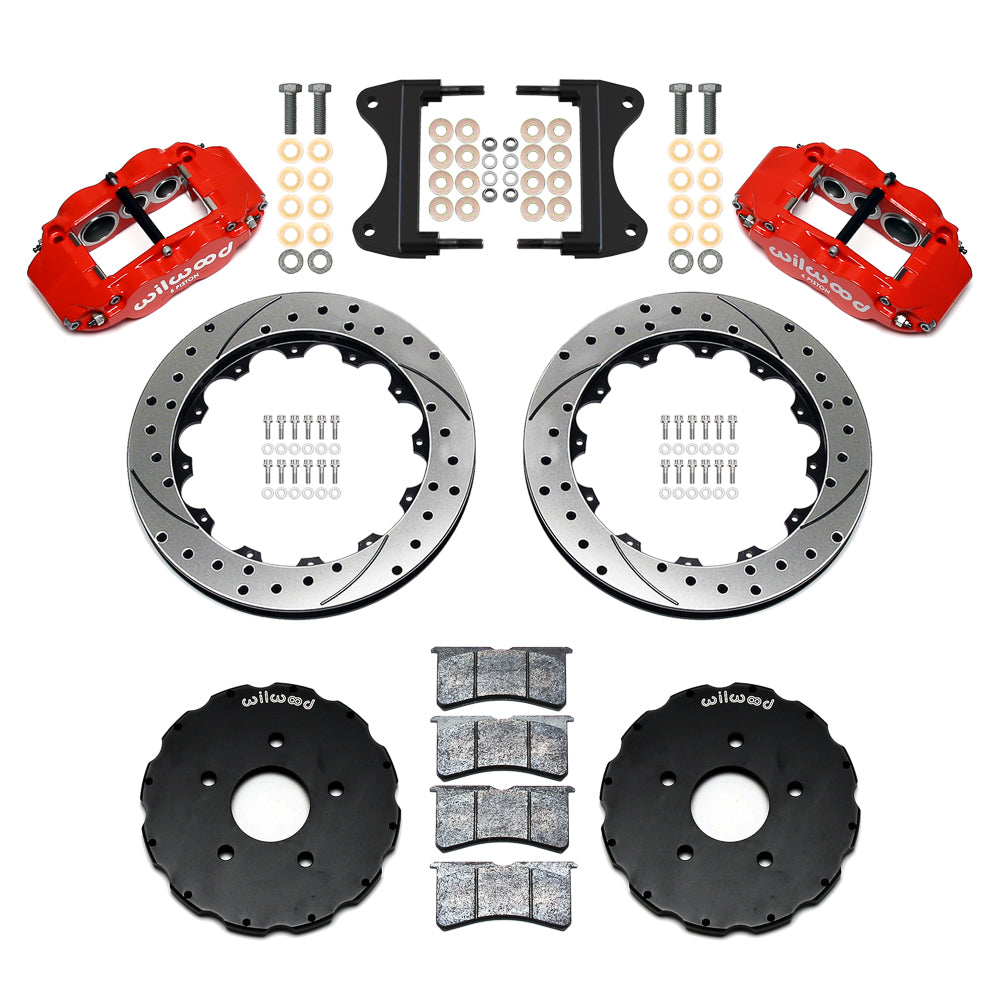

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

DS-1728 specifies C7 Corvette upright/hub applications. Read every trim and year in the table below: Stingray 2014–2019, Z51 2014–2016, Z06 2015–2019, Grand Sport 2017–2019 and ZR1 2019. Confirm the actual upright, hub and existing brake equipment before ordering; this conversion is not an assertion that those original brake packages are interchangeable. Flexlines are separate and wheel clearance must be checked against the kit drawing.

Manufacturer Documents

• Wilwood DS1728 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
