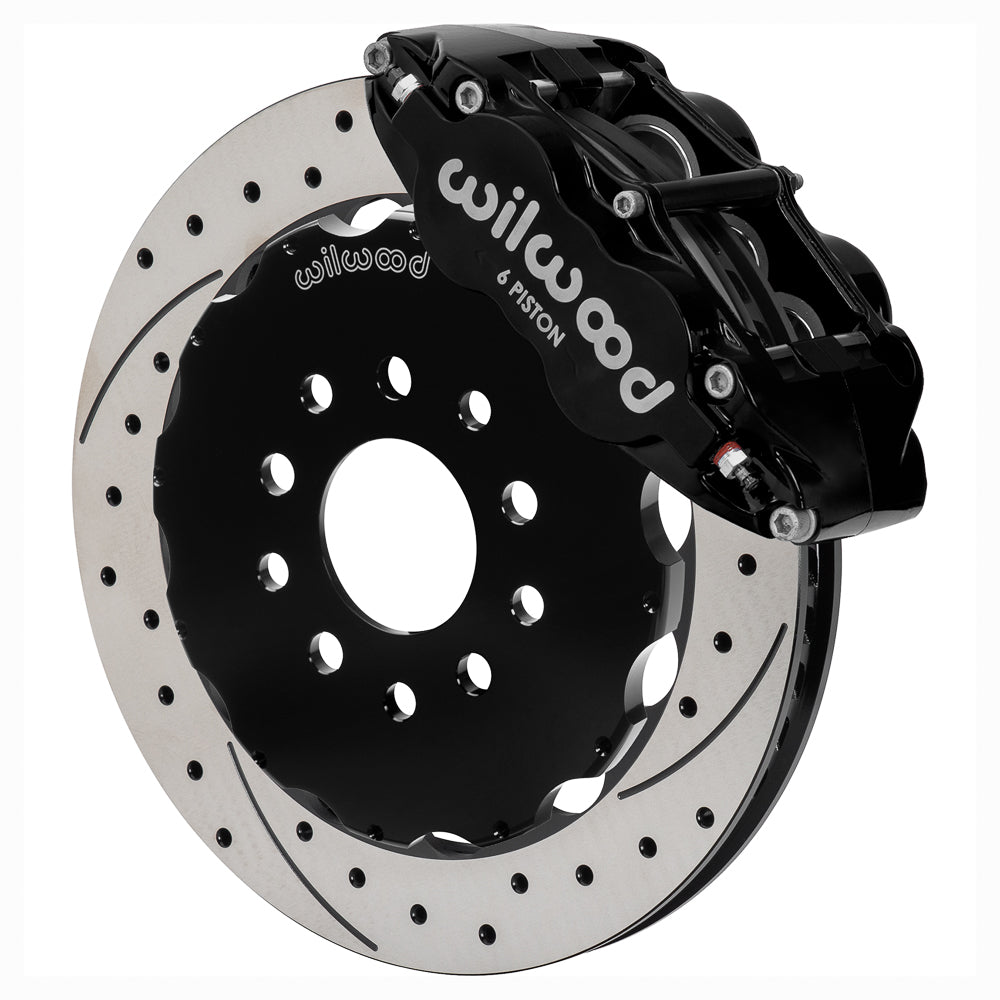

Wilwood Front Black Superlite 6R Kit for Corvette C7 (2014–2019), 13.06-Inch Drilled/Slotted Rotors

Fit the Corvette C7 upright with black Superlite 6R calipers and Wilwood 13.06-inch SRP rotors. Verify the trim, separate lines and wheel clearance. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-18531-D
• Rotor configuration: 13.06-inch diameter and 1.25-inch thickness; srp drilled and slotted vented spec-37 iron.
• Caliper assembly: 6 stainless pistons in each forged aluminum caliper, with black powder coat finish.
• Mount and inlet: Radial caliper attachment with 1/8-27 NPT fluid inlets.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: 17-inch nominal minimum; check both barrel and spoke clearance against the installation template.

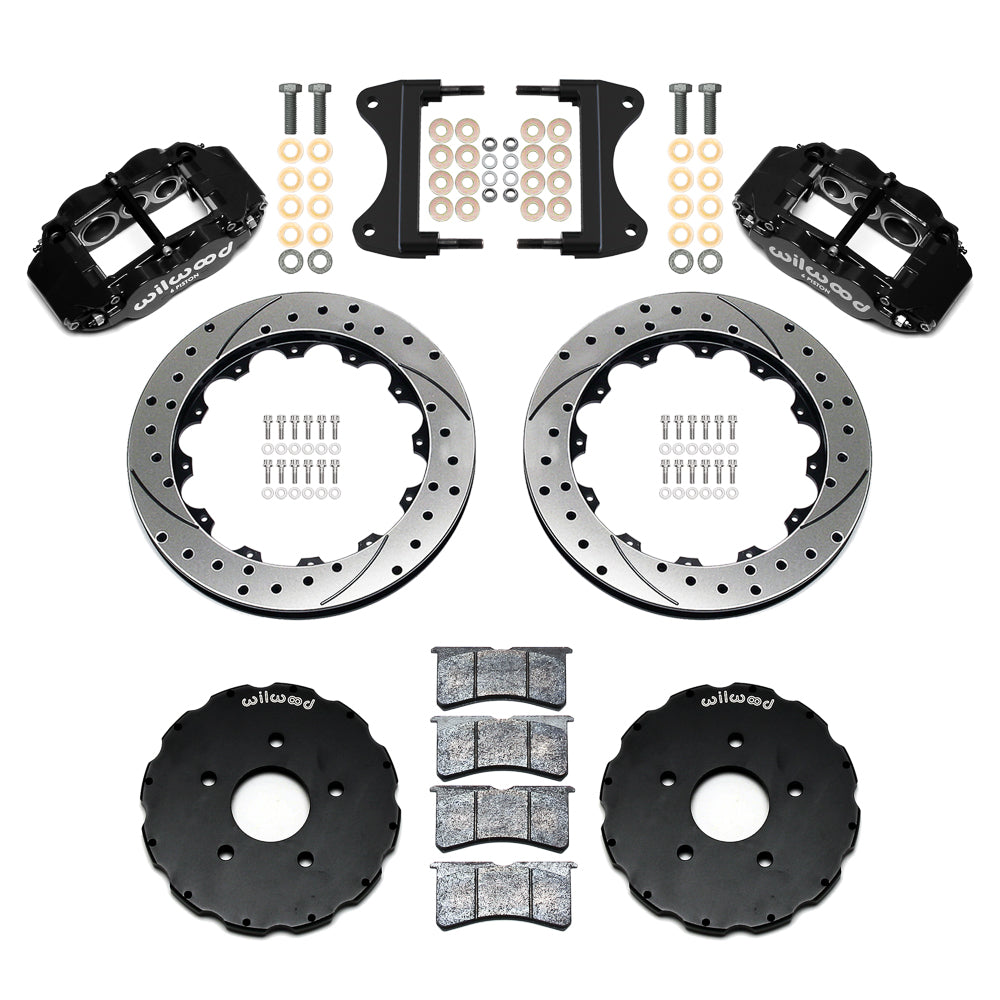

• Kit supply: mounting hardware
• Not included: master cylinder, booster, spindles, flexible brake lines, hubs
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-10 compound for this rotor configuration.

Fitment & Compatibility

DS-1728 specifies C7 Corvette upright/hub applications. Read every trim and year in the table below: Stingray 2014–2019, Z51 2014–2016, Z06 2015–2019, Grand Sport 2017–2019 and ZR1 2019. Confirm the actual upright, hub and existing brake equipment before ordering; this conversion is not an assertion that those original brake packages are interchangeable. Flexlines are separate and wheel clearance must be checked against the kit drawing.

Manufacturer Documents

• Wilwood DS1728 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
