Wilwood Front FNSL6R Brake Conversion, Black Calipers and 13.06-Inch GT Rotors, Corvette C7 (2014–2019)

Corvette C7 front kit with black Wilwood FNSL6R calipers and 13.06-inch GT rotors. Match the 2014–2019 upright/hub and choose separate flexlines. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

• Manufacturer part number: 140-18531

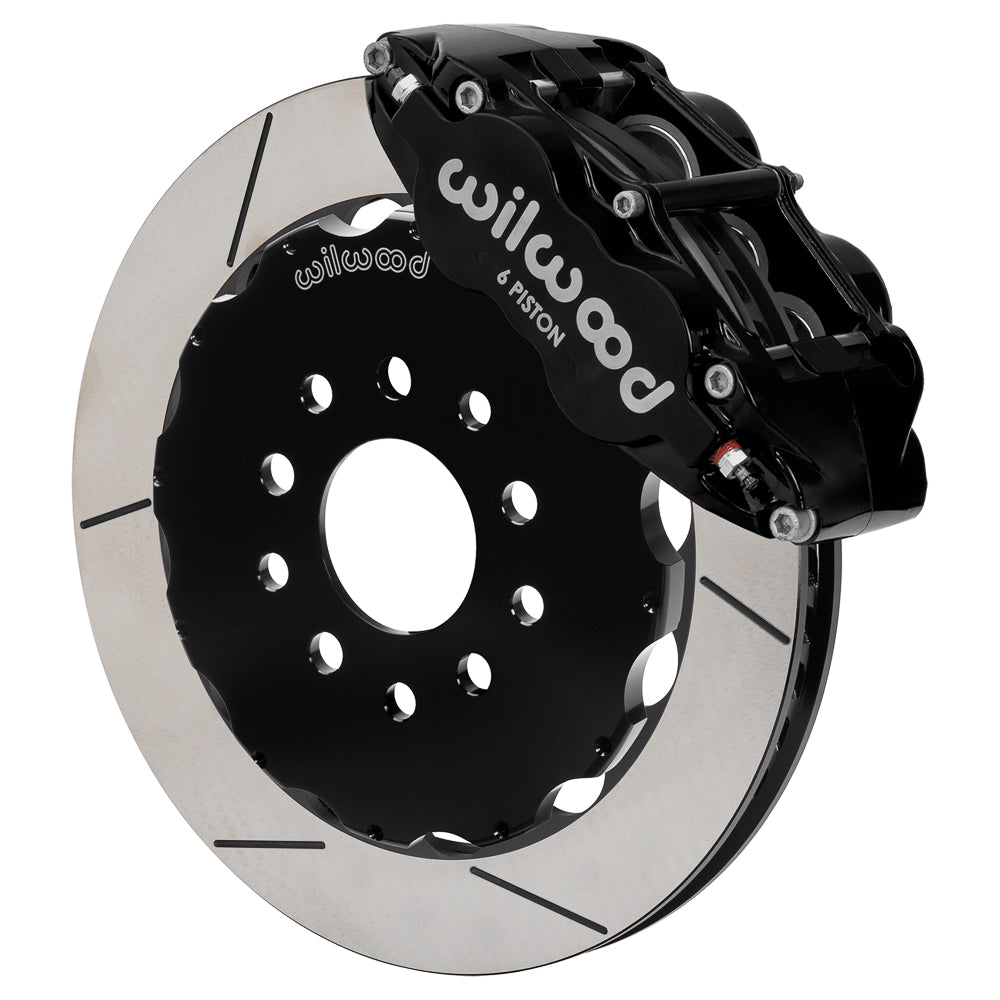

• Brake calipers: For this package, the forged aluminum calipers have black powder coat exteriors and stainless pistons, 6 per caliper.
• Rotor geometry: Each rotor is 1.25 inch wide with a 13.06-inch outside diameter; the vented spec-37 iron design has gt slotted surfaces.
• Installation interfaces: Confirm radial mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
• Rotor/hat wheel-stud clearance pattern: 5 x 4.5 in; 5 x 4.75 in (5 x 114.3 mm; 5 x 120.65 mm)
• Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 17-inch minimum package.

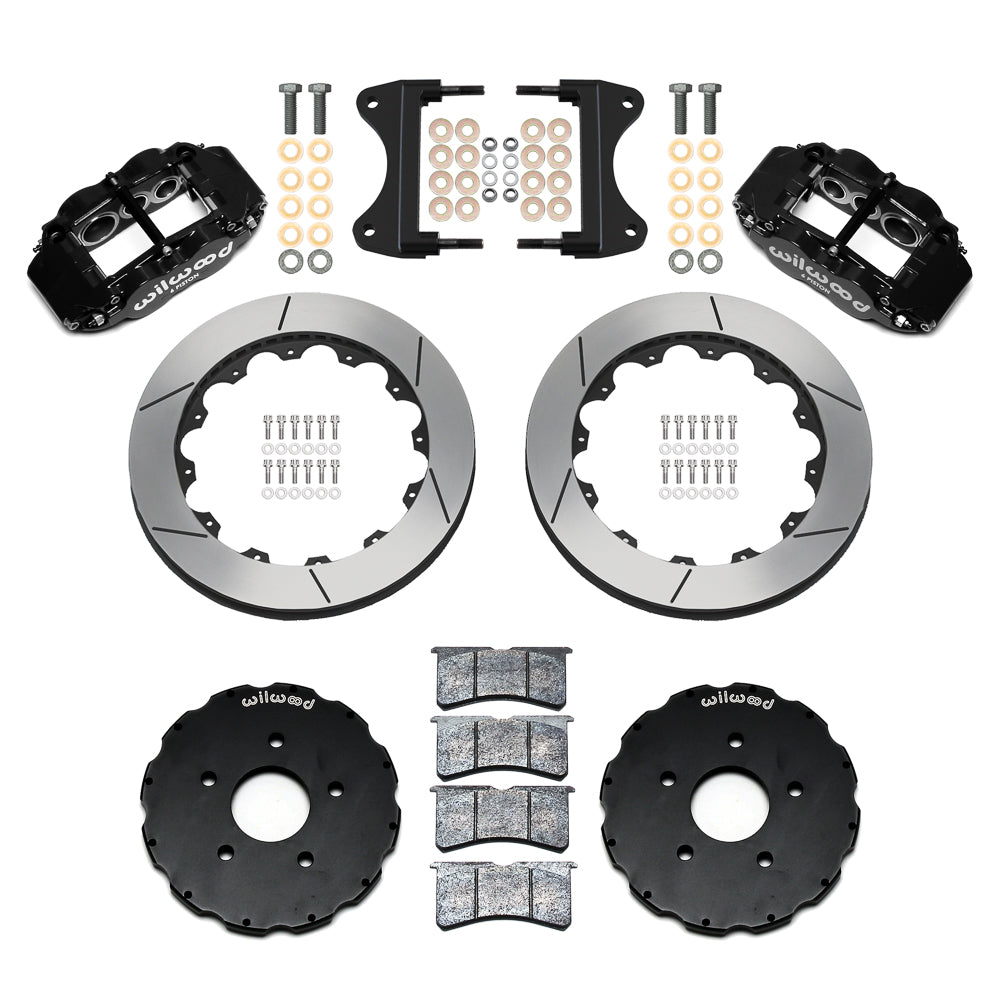

• Package scope: Supplied: mounting hardware. Not included: master cylinder, booster, spindles, flexible brake lines, hubs.
• Rotor assembly: Separate aluminum hats and vented iron rotors; compatible vehicle hubs retained
• Supplied brake pads: BP-20 compound for this rotor configuration.

Fitment & Compatibility

DS-1728 specifies C7 Corvette upright/hub applications. Read every trim and year in the table below: Stingray 2014–2019, Z51 2014–2016, Z06 2015–2019, Grand Sport 2017–2019 and ZR1 2019. Confirm the actual upright, hub and existing brake equipment before ordering; this conversion is not an assertion that those original brake packages are interchangeable. Flexlines are separate and wheel clearance must be checked against the kit drawing.

Manufacturer Documents

• Wilwood DS1728 installation instructions

Wilwood kit specifications and component list

Manufacturer Warning

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-8176, 220-9100, , , 220-12168
