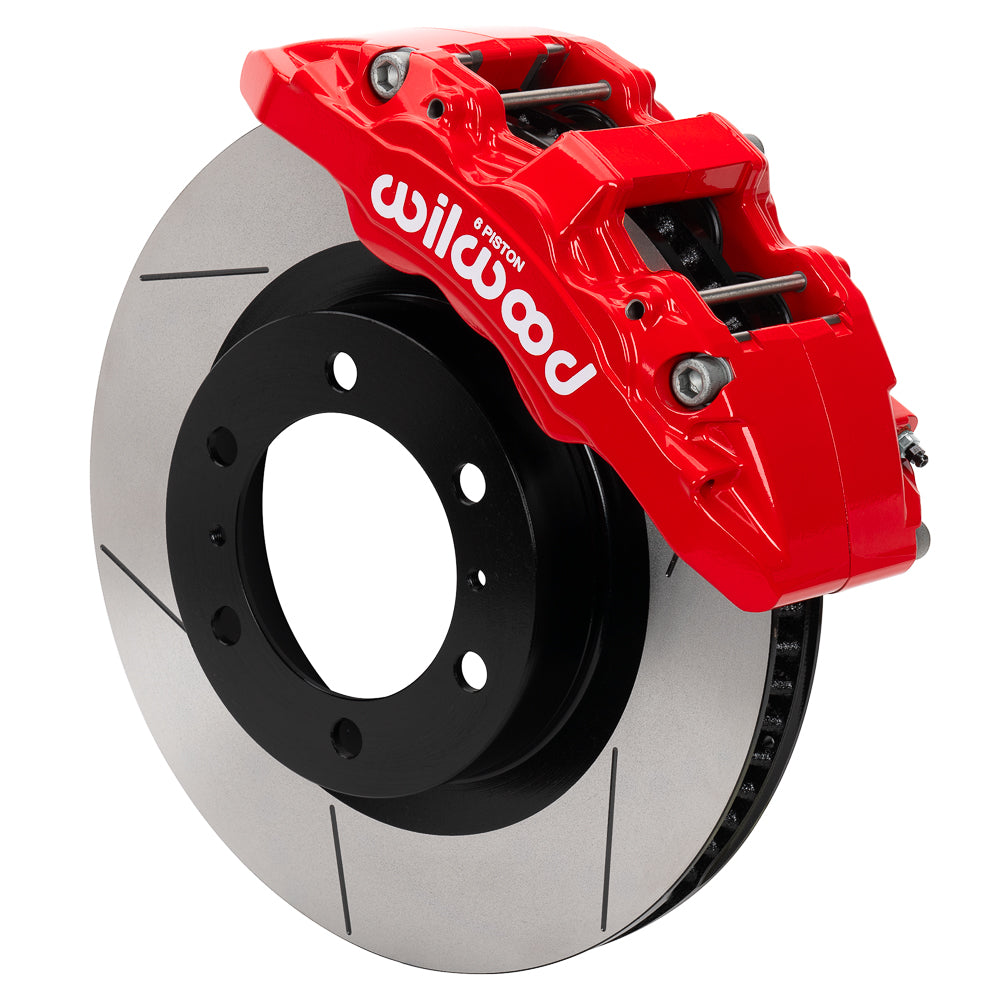

Wilwood Front GT Slotted 13.38-Inch Brake Kit with Red Calipers for Toyota Tacoma (2024–2025)

Convert the Tacoma front axle with red Wilwood AERO6-DM calipers, GT rotors and lines. Confirm the 2024–2025 application and actual wheel profile. Wilwood Engineering began in 1977 with founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. The company serves motorsport, street-performance and specialized applications, where the complete system determines component selection.

Technical Details

• Manufacturer part number: 140-18381-R
• Caliper construction: Caliper bodies are forged aluminum, finished in red powder coat; each has 6 pistons made from stainless.
• Rotor dimensions and face: The gt slotted option uses iron, a 13.38-inch outside diameter and a 1.26-inch running width. Rotor construction is vented.
• Hydraulic and mounting layout: Brake-fluid connection: 1/8-27 NPT; caliper mounting arrangement: lug.
• Rotor/hat wheel-stud clearance pattern: 6 x 5.5 in (6 x 139.7 mm)
• Wheel fit: Use the manufacturer wheel template even when the wheel is 17 inches or larger.

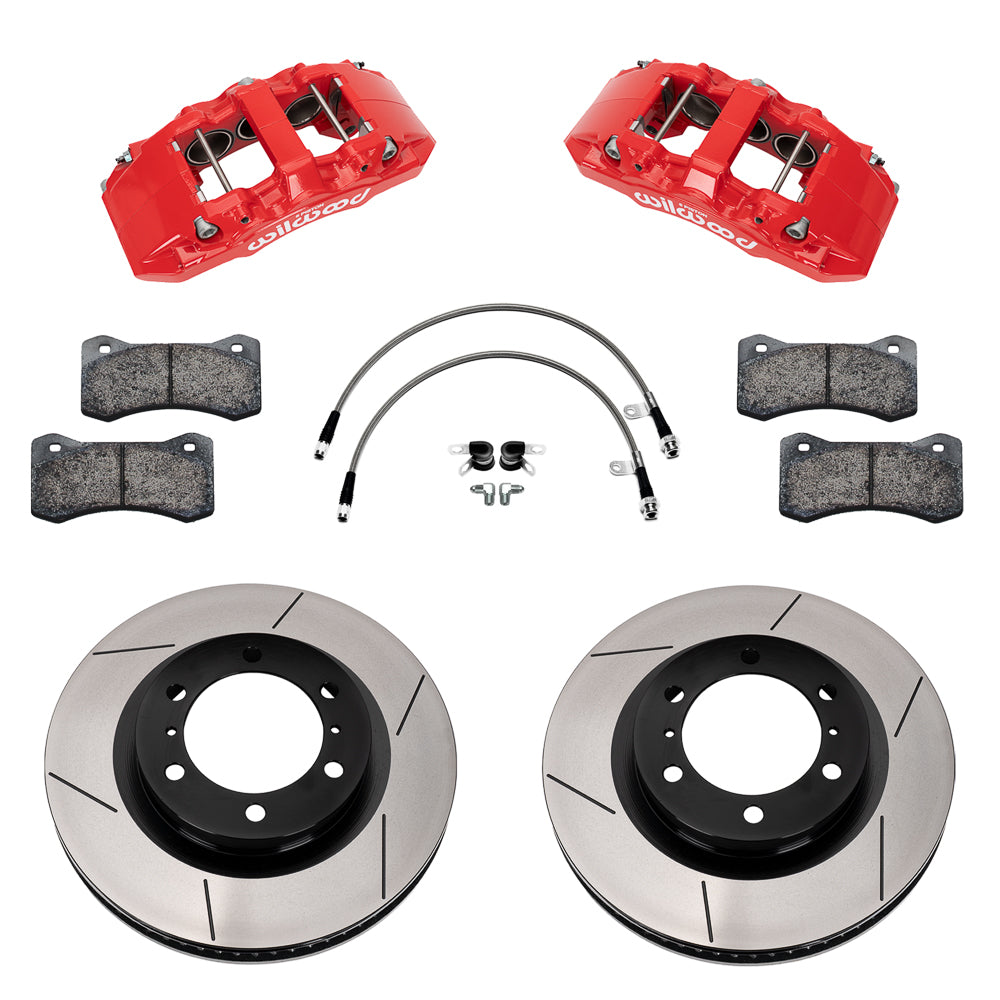

• Package scope: Supplied: mounting hardware, brake lines. Not included: master cylinder, booster, spindles, hubs.
• Rotor assembly: One-piece rotor/hat; supplied flexline kit 220-18382

Fitment & Compatibility

Use the factory disc spindle and check the exact Tacoma trim in the fitment table below, including SR, SR5, Limited, Trailhunter and the listed TRD versions. Confirm wheel spoke and barrel clearance with DS-1709; a nominal 17-inch wheel diameter does not establish clearance. The included line kit is 220-18382.

Manufacturer Documents

• Wilwood DS1709 installation instructions

Wilwood kit specifications and component list

Discuss the current brake arrangement with PMB Performance if a mounting or clearance requirement is uncertain. More than 20 years of experience informs our parts and fitment support.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18382 (23.00 in)
2. Front line-kit reference: 220-18382
