Wilwood Front Red AERO6-DM Caliper and SRP Rotor Kit, Toyota Tacoma (2024–2025), 13.38 Inches

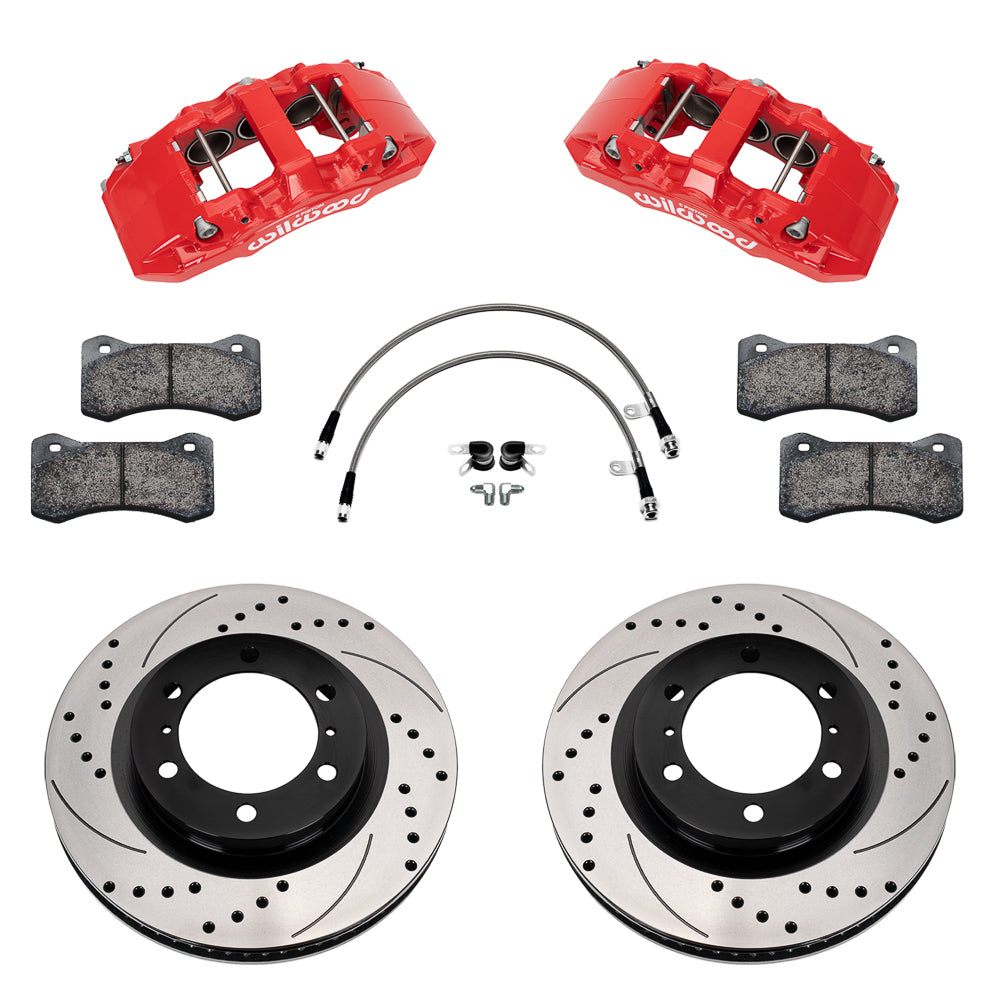

Wilwood Tacoma kit with red six-piston front calipers and 13.38-inch drilled/slotted rotors. Match the 2024–2025 spindle; flexlines are supplied. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc brake systems and the calipers, rotors, master cylinders, valves, fittings and lines used within them. Its motorsport, street-performance and specialized applications depend on compatible brake components.

Technical Details

• Manufacturer part number: 140-18381-DR

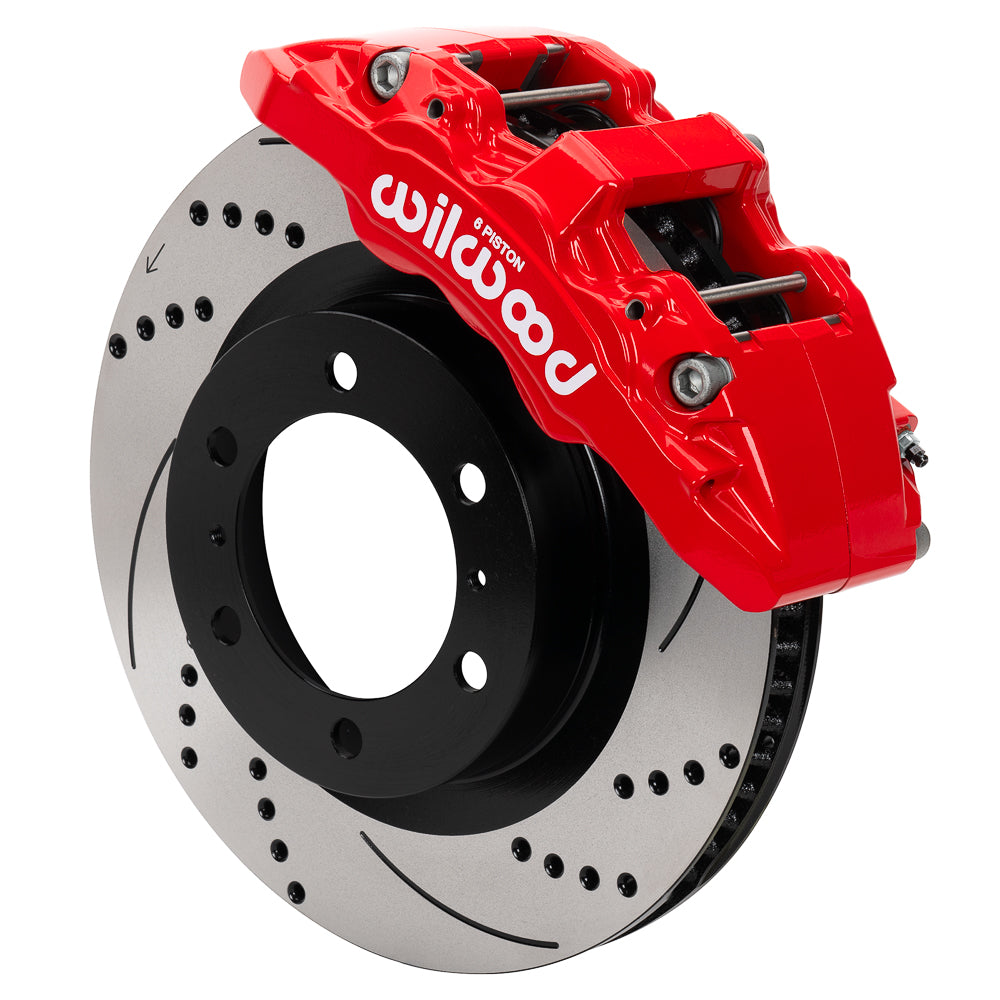

• Rotor configuration: 13.38-inch diameter and 1.26-inch thickness; srp drilled and slotted vented iron.
• Caliper assembly: 6 stainless pistons in each forged aluminum caliper, with red powder coat finish.
• Mount and inlet: Lug caliper attachment with 1/8-27 NPT fluid inlets.
• Rotor/hat wheel-stud clearance pattern: 6 x 5.5 in (6 x 139.7 mm)
• Wheel fit: 17-inch nominal minimum; check both barrel and spoke clearance against the installation template.
• Kit supply: mounting hardware, brake lines
• Not included: master cylinder, booster, spindles, hubs
• Rotor assembly: One-piece rotor/hat; supplied flexline kit 220-18382

Fitment & Compatibility

Use the factory disc spindle and check the exact Tacoma trim in the fitment table below, including SR, SR5, Limited, Trailhunter and the listed TRD versions. Confirm wheel spoke and barrel clearance with DS-1709; a nominal 17-inch wheel diameter does not establish clearance. The included line kit is 220-18382.

Manufacturer Documents

• Wilwood DS1709 installation instructions

Wilwood kit specifications and component list

With over 20 years of experience, PMB Performance can help identify the required brake-system components. Provide the vehicle details and the actual installed hardware when requesting a fitment check.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18382 (23.00 in)
2. Front line-kit reference: 220-18382
