Wilwood Front 13.38-Inch Drilled/Slotted Brake Conversion for Toyota Tacoma (2024–2025), Black AERO6-DM

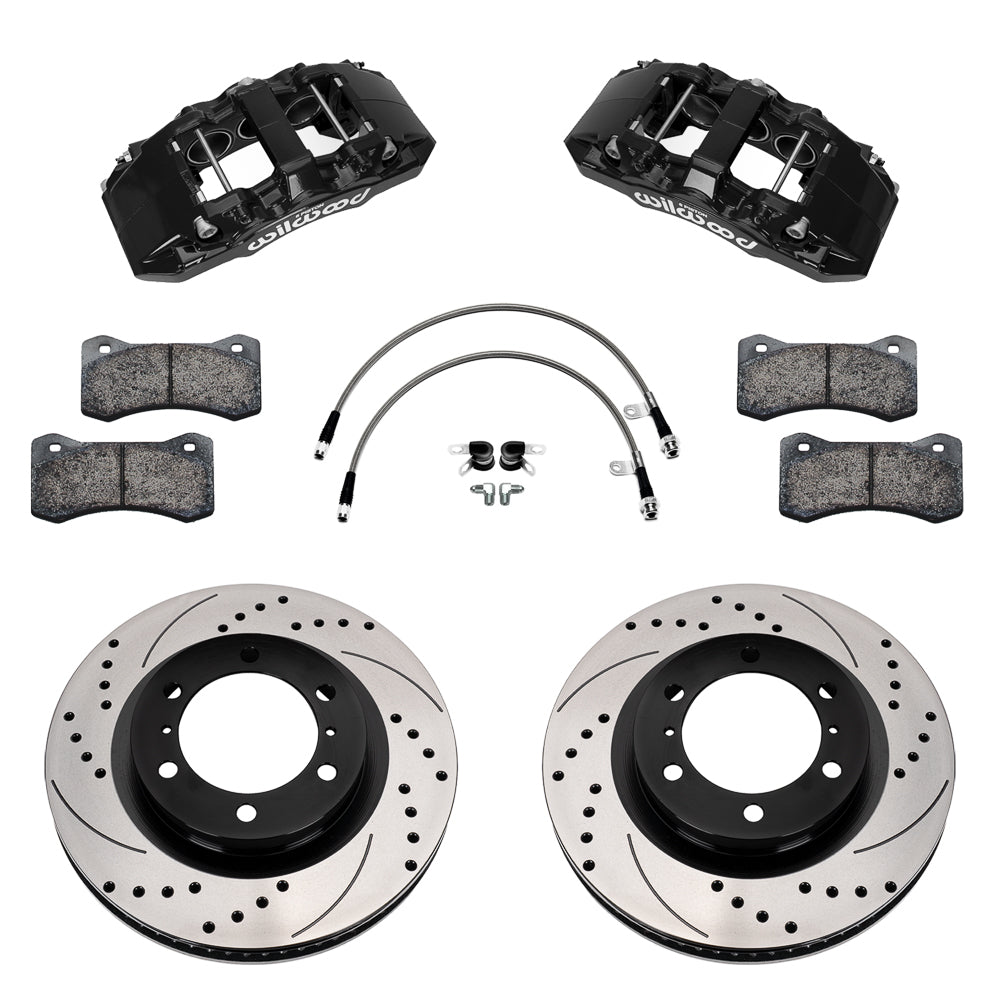

Black AERO6-DM calipers and 13.38-inch SRP rotors replace Tacoma front brakes. Wilwood flexlines are included; check the 2024–2025 wheel template. From Camarillo, California, Wilwood Engineering designs and builds disc braking systems for motorsport, street-performance and specialized uses. Founder Bill Wood started the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected for the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-18381-D

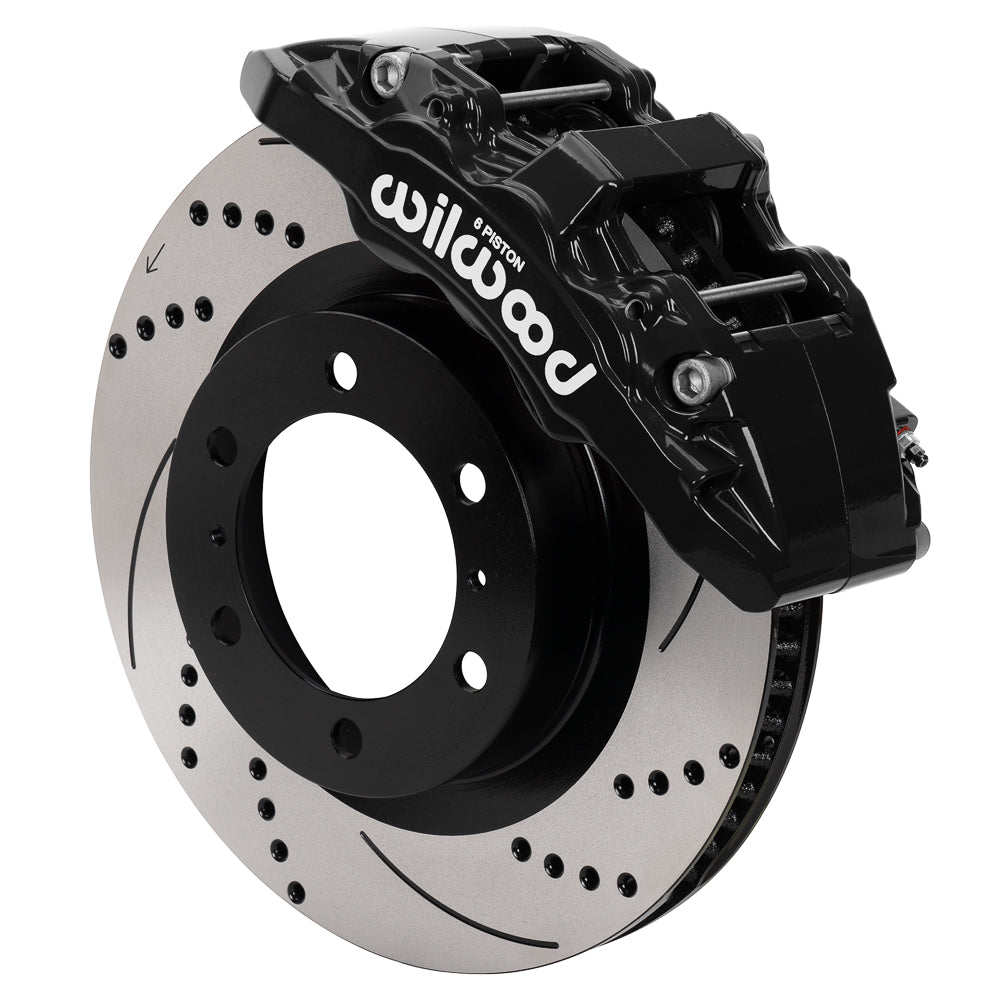

• Brake calipers: For this package, the forged aluminum calipers have black powder coat exteriors and stainless pistons, 6 per caliper.
• Rotor geometry: Each rotor is 1.26 inch wide with a 13.38-inch outside diameter; the vented iron design has srp drilled and slotted surfaces.
• Installation interfaces: Confirm lug mounting and a hydraulic connection compatible with the 1/8-27 NPT inlet.
• Rotor/hat wheel-stud clearance pattern: 6 x 5.5 in (6 x 139.7 mm)
• Wheel fit: Wheel diameter alone is insufficient: test the template for this nominal 17-inch minimum package.
• Package scope: Supplied: mounting hardware, brake lines. Not included: master cylinder, booster, spindles, hubs.
• Rotor assembly: One-piece rotor/hat; supplied flexline kit 220-18382

Fitment & Compatibility

Use the factory disc spindle and check the exact Tacoma trim in the fitment table below, including SR, SR5, Limited, Trailhunter and the listed TRD versions. Confirm wheel spoke and barrel clearance with DS-1709; a nominal 17-inch wheel diameter does not establish clearance. The included line kit is 220-18382.

Manufacturer Documents

• Wilwood DS1709 installation instructions

Wilwood kit specifications and component list

Before ordering for a modified vehicle, contact PMB Performance with the relevant dimensions and component numbers. Our team draws on more than 20 years of parts and fitment experience.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18382 (23.00 in)
2. Front line-kit reference: 220-18382
