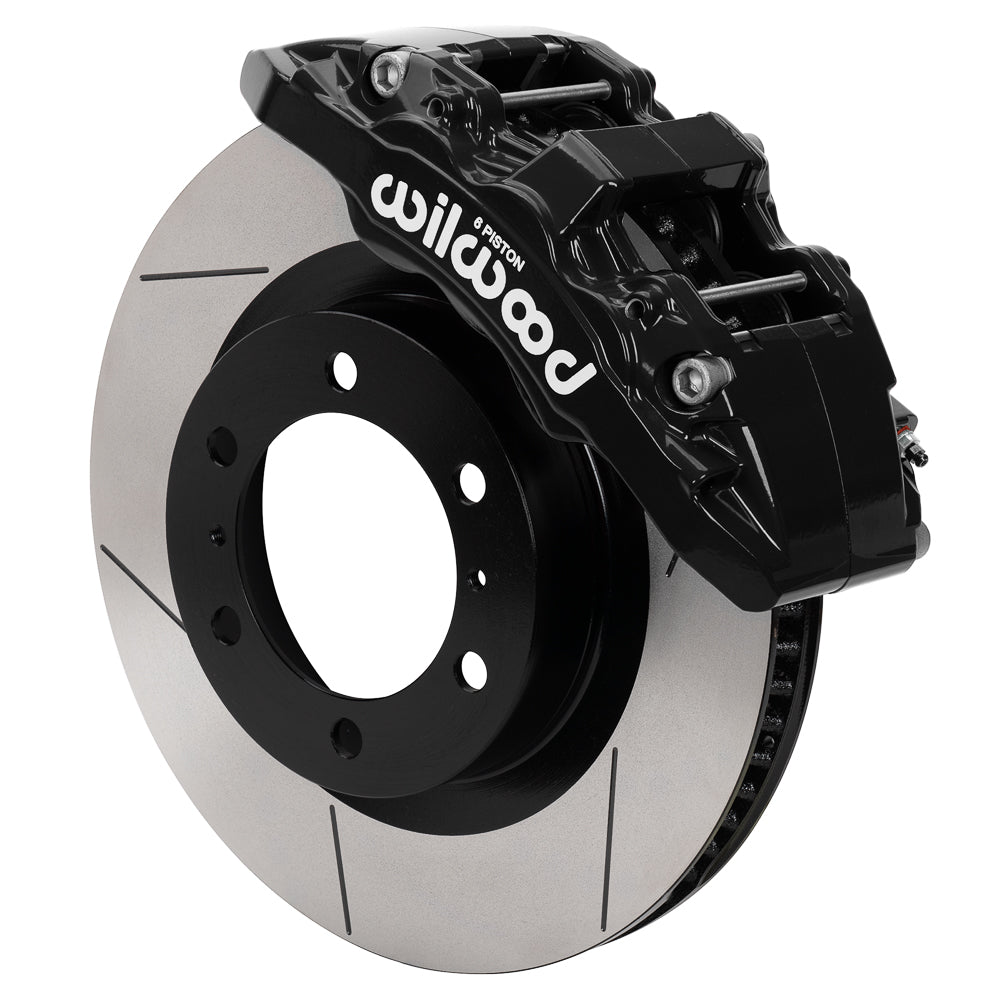

Wilwood Front AERO6-DM Brake Kit for Toyota Tacoma (2024–2025), Black Calipers, 13.38-Inch GT Rotors

Toyota Tacoma front conversion with black Wilwood AERO6-DM calipers, 13.38-inch GT rotors and flexlines. Verify the 2024–2025 trim and wheel clearance. The manufacturer is Wilwood Engineering of Camarillo, California, established in 1977 by Bill Wood. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and lines for motorsport, street-performance and specialized vehicles; suitability depends on the full brake-system configuration.

Technical Details

• Manufacturer part number: 140-18381
• Rotor material and size: Choose this 13.38 x 1.26-inch gt slotted rotor configuration. The rotor material is iron and its construction is vented.
• Caliper specification: Finish selection is black powder coat. Each forged aluminum caliper carries 6 pistons with stainless construction.
• Caliper interface: 1/8-27 NPT inlet thread; calipers attach through the specified lug mounting layout.
• Rotor/hat wheel-stud clearance pattern: 6 x 5.5 in (6 x 139.7 mm)
• Wheel fit: Check the wheel-clearance diagram; the listed minimum wheel diameter is 17 inches.

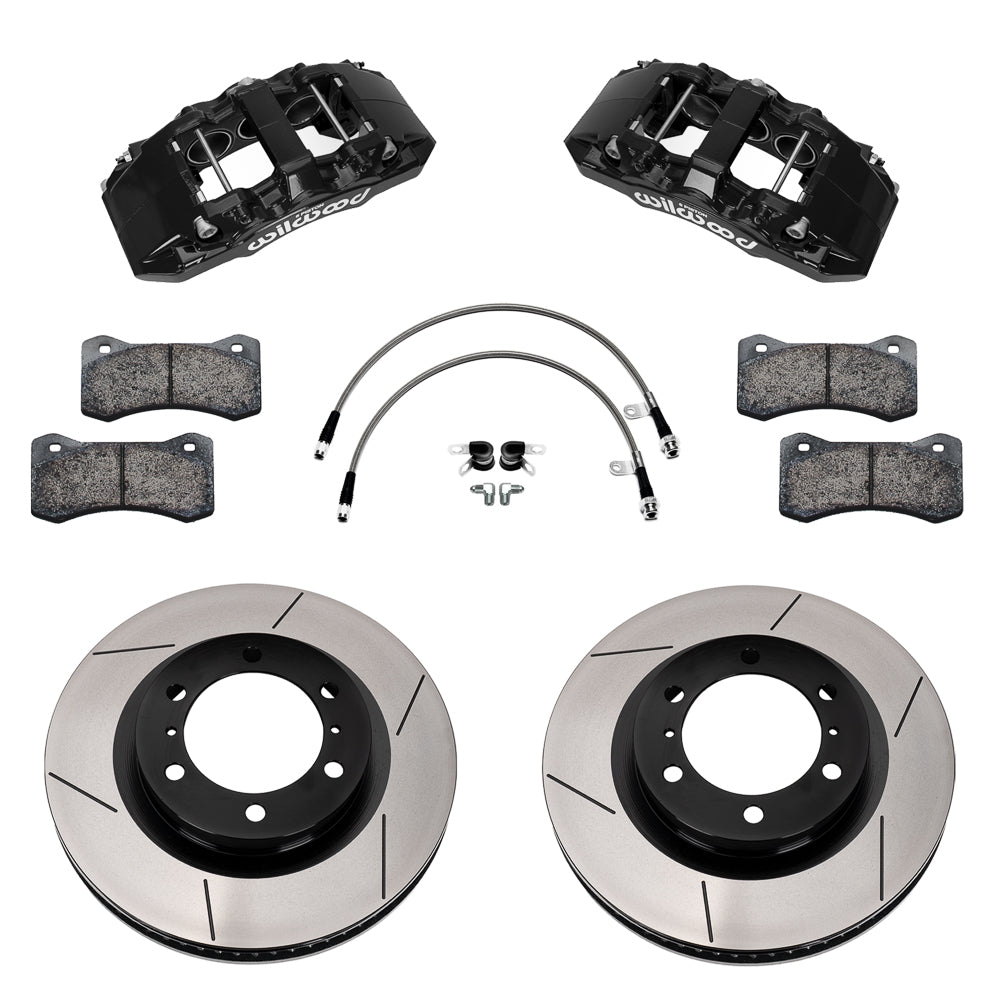

• Kit supply: mounting hardware, brake lines
• Not included: master cylinder, booster, spindles, hubs
• Rotor assembly: One-piece rotor/hat; supplied flexline kit 220-18382

Fitment & Compatibility

Use the factory disc spindle and check the exact Tacoma trim in the fitment table below, including SR, SR5, Limited, Trailhunter and the listed TRD versions. Confirm wheel spoke and barrel clearance with DS-1709; a nominal 17-inch wheel diameter does not establish clearance. The included line kit is 220-18382.

Manufacturer Documents

• Wilwood DS1709 installation instructions

Wilwood kit specifications and component list

PMB Performance brings over 20 years of parts and fitment experience. Send the installed brake and axle details for help confirming the correct configuration.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): 220-18382 (23.00 in)
2. Front line-kit reference: 220-18382
