Product details

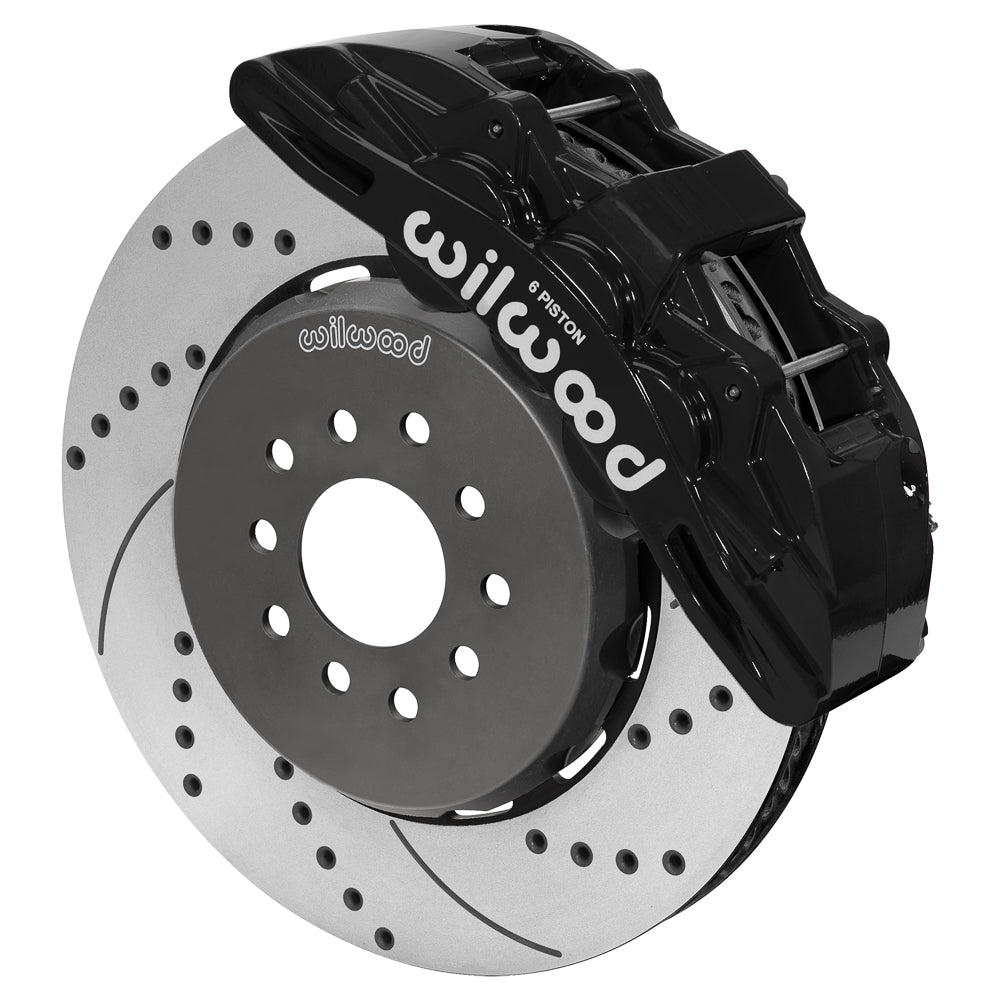

The black SX6R/SRP configuration combines 15.00 x 1.25-inch drilled/slotted discs with dynamic lug-drive hats. BP-10 pads occupy the SX6R's 15.9-square-inch pad area, and the Roadster Shop brackets position the six-piston calipers around the large rotor envelope. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 15.00 in; 381 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Type III Anodize; 0.868-inch hat offset
Calipers and pads
- Calipers: SX6R; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.75 / 1.38 / 1.38 in

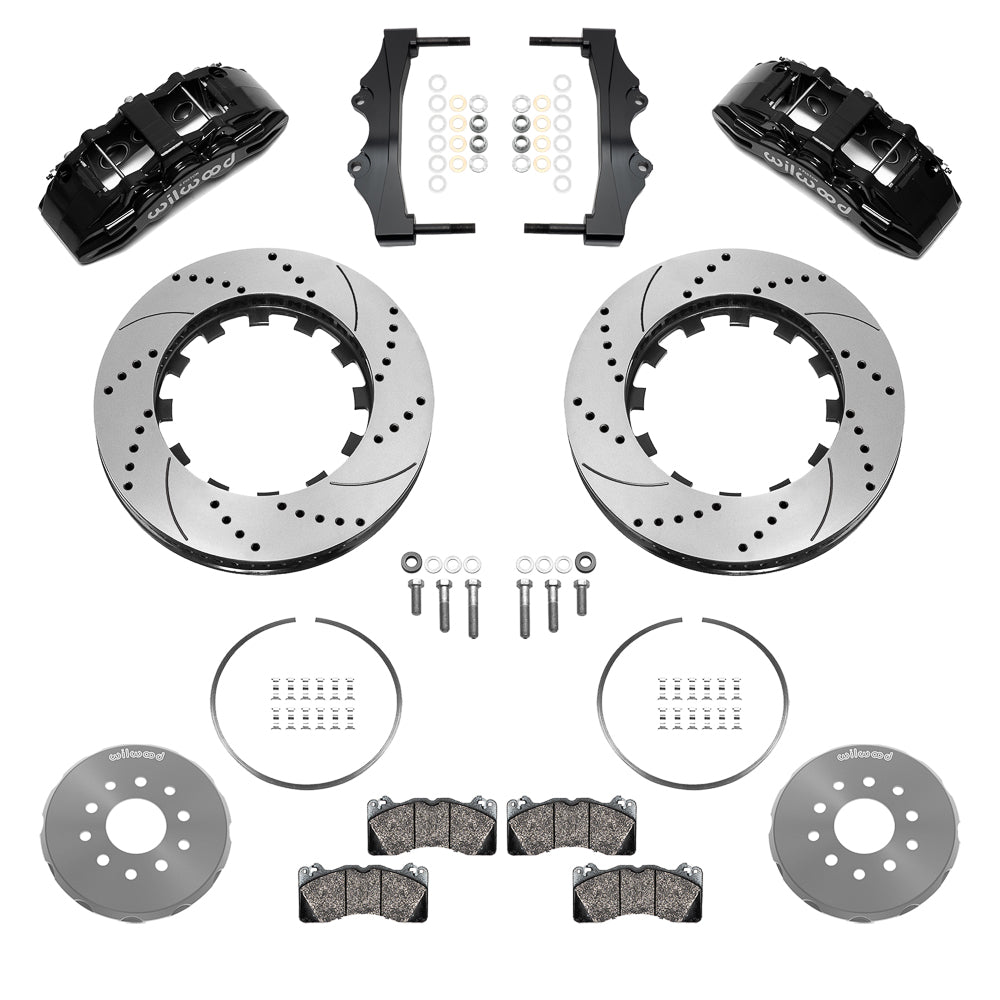

Kit contents and separate parts
- Manufacturer part number: 140-18368-D
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
Fitment & Compatibility
This SX6R configuration requires the Roadster Shop Mustang II upright and the five-on-4.75-inch hub application described in DS-1703. Confirm the precise hub and hat dimensions before ordering; the original vehicle's model year does not identify this custom assembly. The 15-inch rotors attach through dynamic drive lugs and wear clips, secured by a retaining ring. Follow the guide's snap-ring engagement checks and the prescribed steering-arm bracket location. Retain compatible hubs and supply spindles and flexlines separately. Check wheel clearance for the rotor, large caliper body and hose routing. Nominal minimum wheel diameter: 19 in; 482.6 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
