Product details

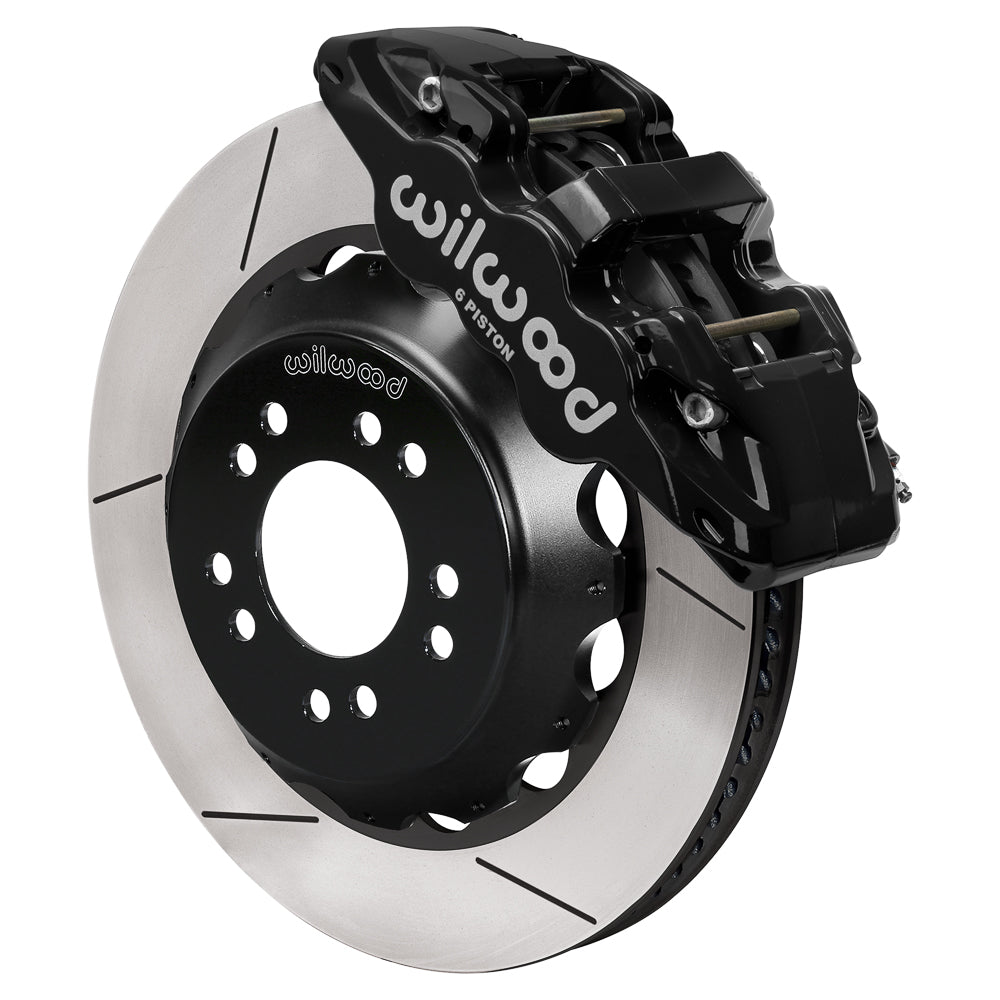

Black AERO6 calipers and 14-inch GT rotors form this Roadster Shop front kit. Its 1.25-inch-thick discs contain 72 curved vanes, while the calipers use an 11.1-square-inch pad area with BP-20 compound pads supplied. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.
Technical Details

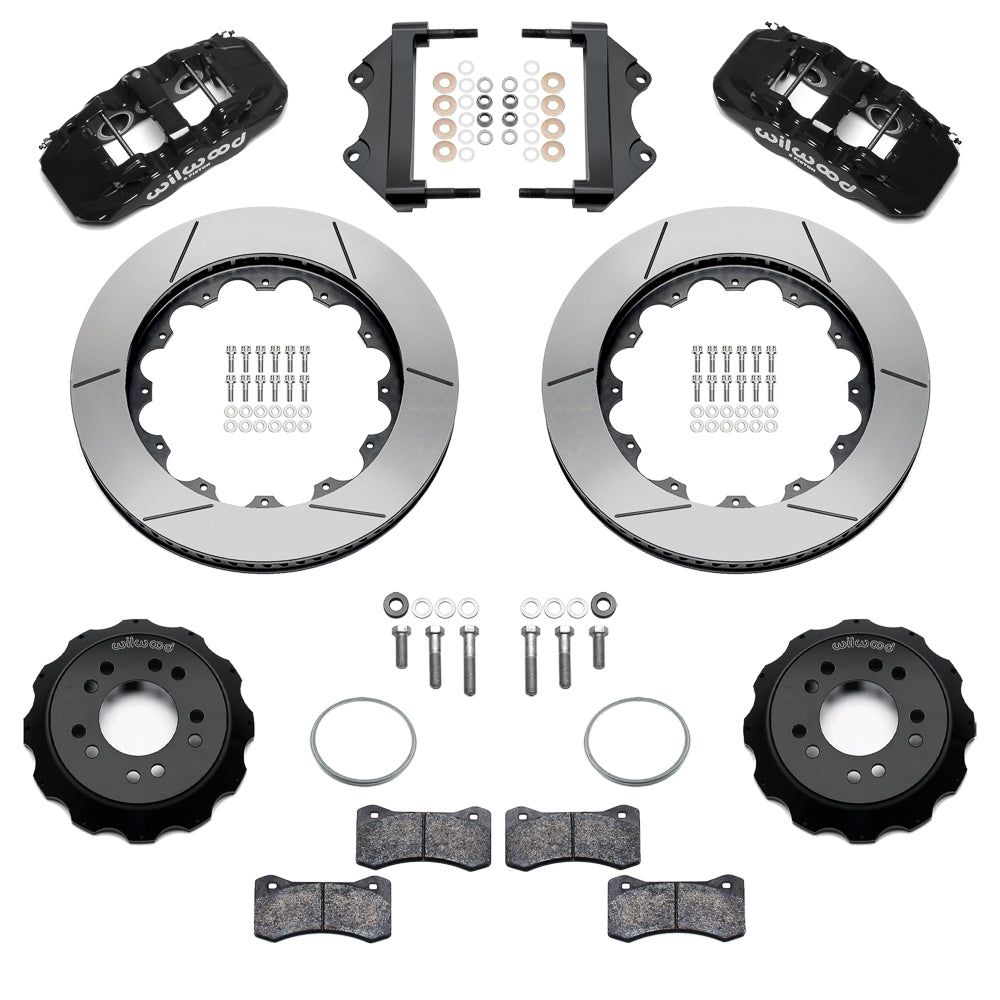

Kit contents and separate parts
- Manufacturer part number: 140-18367
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
Fitment & Compatibility
Use the AERO6/14-inch assembly on the Roadster Shop Mustang II uprights described in the installation guide. The required hub application is five on 4.75 inches. Verify the caliper and wheel-spoke space before assembling the brackets at the designated steering-arm location. Set rotor registration and caliper centering with the supplied adapters and shims. This is hardware-specific custom-chassis fitment, not a general original-Mustang application. Hubs, spindles and brake hoses are separate; hose selection must accommodate complete steering and suspension movement. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 1.500-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-20
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Installation documents
