Product details
The Roadster Shop Superlite front package combines black six-piston calipers with 12.88-inch GT rotors. The 1.10-inch-thick Spec-37 discs use flared aluminum hats and BP-10 pads, with radial brackets locating the calipers on the specified upright. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.
Fitment & Compatibility
The Superlite front brackets are made for the Roadster Shop Mustang II spindle/upright with the specified five-on-4.75-inch hub. Check that hardware first, then compare the 12.88-inch rotor and radial caliper envelope with the wheels. This application depends on the Roadster Shop components rather than an original Mustang model year. Follow the guide's steering-arm bracket orientation, rotor registration and shim procedure. Compatible hubs stay on the vehicle, and neither replacement hubs nor spindles are included. Hydraulic flexlines must be selected separately for the installed suspension. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Technical Details
Calipers and pads
- Calipers: FNSL6R; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: Aluminum; Black E-Coat; 1.500-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm

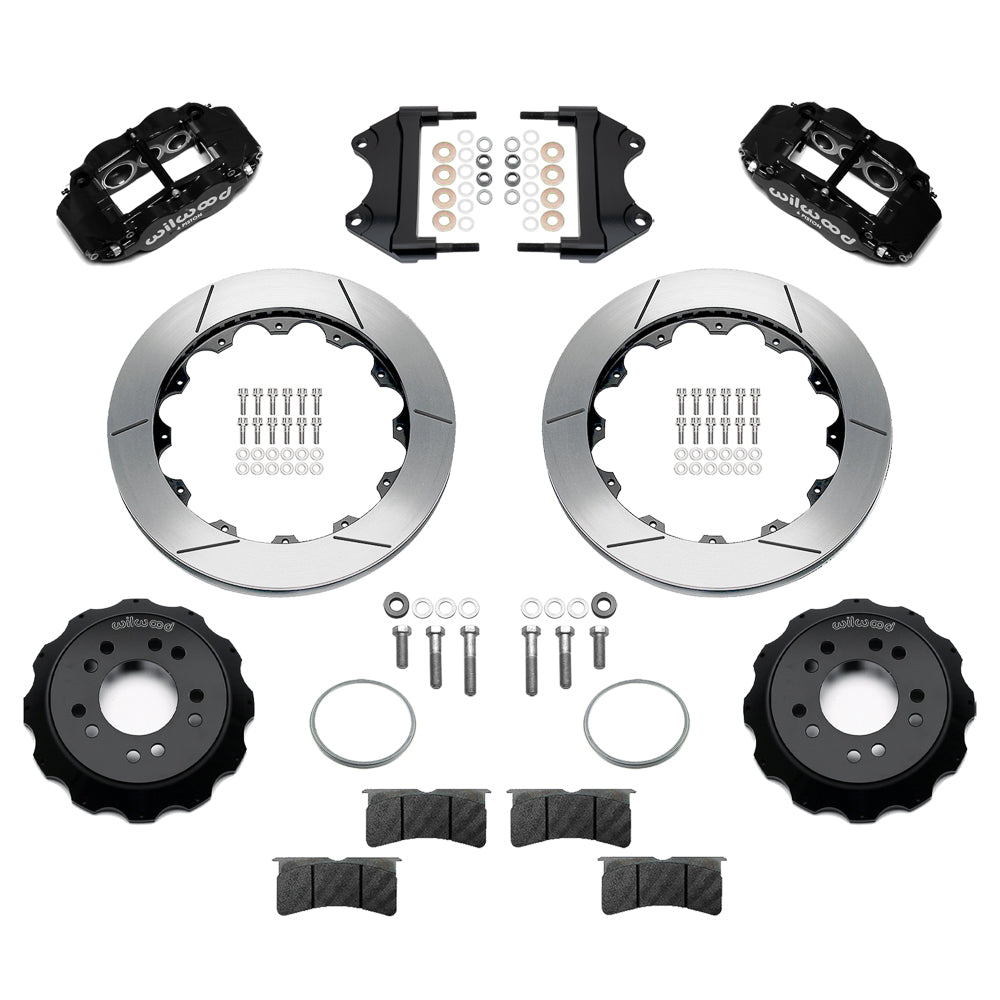

Kit contents and separate parts
- Manufacturer part number: 140-18366
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
Installation documents
