Product details

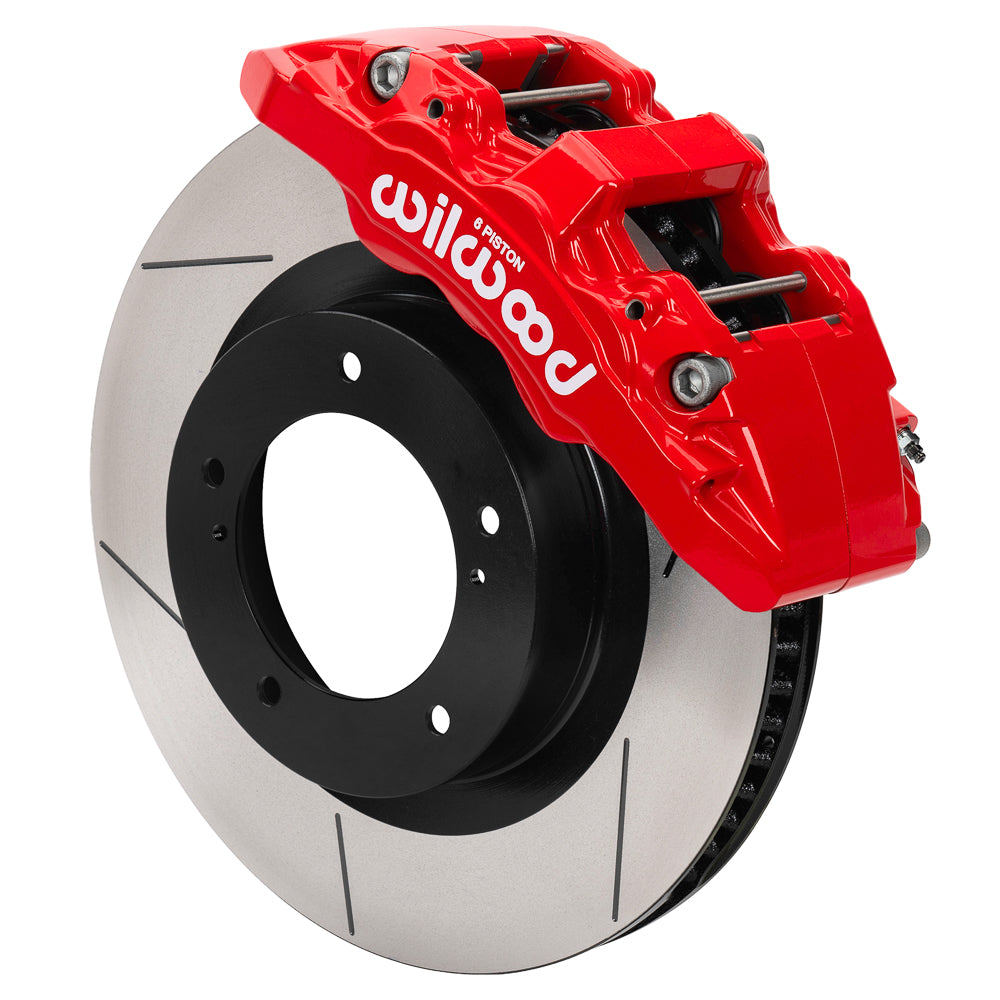

GT slotted one-piece rotors accompany red AERO6-DM calipers in this Tundra/Sequoia front assembly. The 13.39 x 1.26-inch discs retain the factory hub layout, and 20-inch braided flexlines are included for the direct-mount caliper installation. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 13.39 in; 340.11 mm diameter x 1.26 in; 32 mm thick; vented Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Rotor/hat wheel-stud clearance patterns: 5 x 5.91 in; nominal 5 x 150 mm
Calipers and pads
- Calipers: AERO6-DM; 6 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-22
- Listed piston bore sizes: 1.75 / 1.62 / 1.62 in

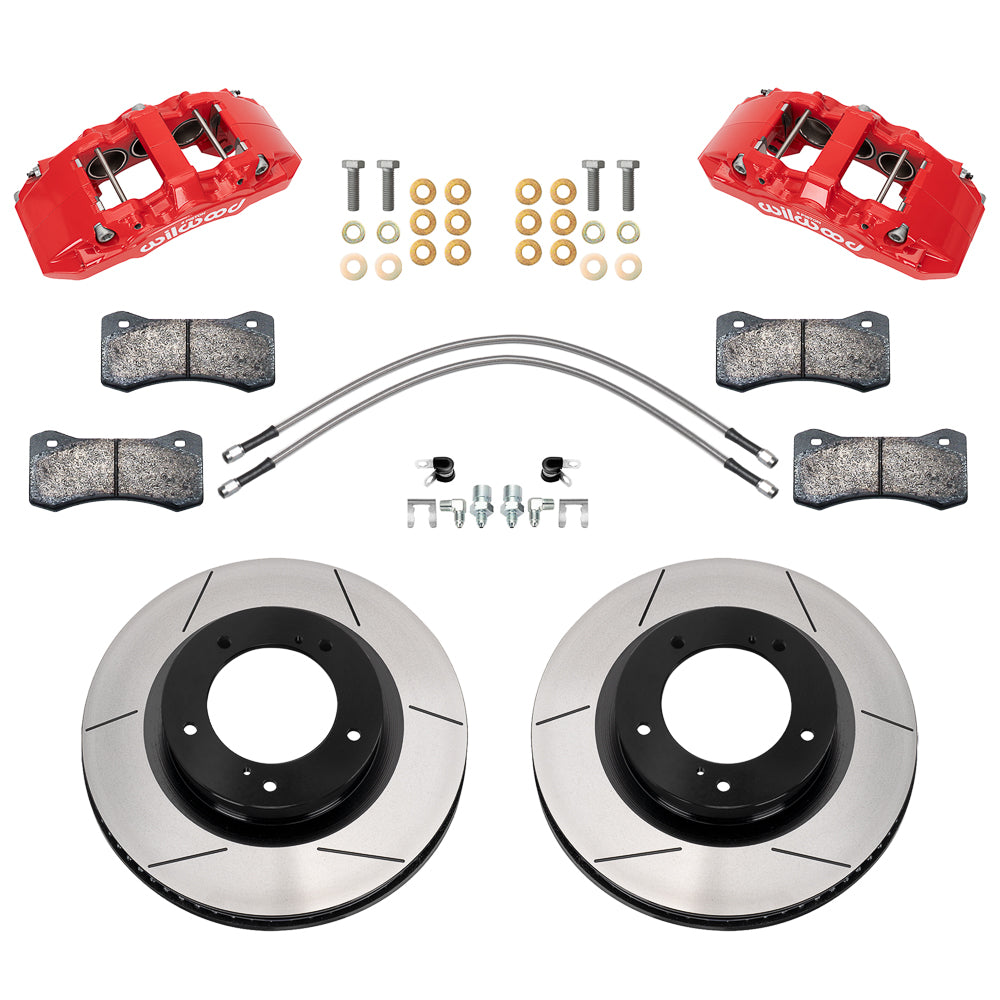

Kit contents and separate parts
- Manufacturer part number: 140-18357-R
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Fitment & Compatibility
Fits 2007–2015 Toyota Tundra and 2008–2015 Sequoia front factory disc spindles. The lug-mount calipers install at the original mounting points, and the one-piece rotors use a five-hole 5 x 5.91-inch pattern. The original hubs remain in service. The included 20-inch stainless braided hose kit is 220-15888. Check the wheel template even when the wheel meets the nominal 17-inch minimum, and verify clearance at full steering lock. Use the table below to confirm the individual Tundra or Sequoia year and application. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Installation documents
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2007-2015 | Toyota | Tundra | All | Disc | Disc | Front Kit | 1, 2 |
| 2008-2015 | Toyota | Sequoia | All | Disc | Disc | Front Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): 220-15888 (20.00 in)
- Front line-kit reference: 220-15888
