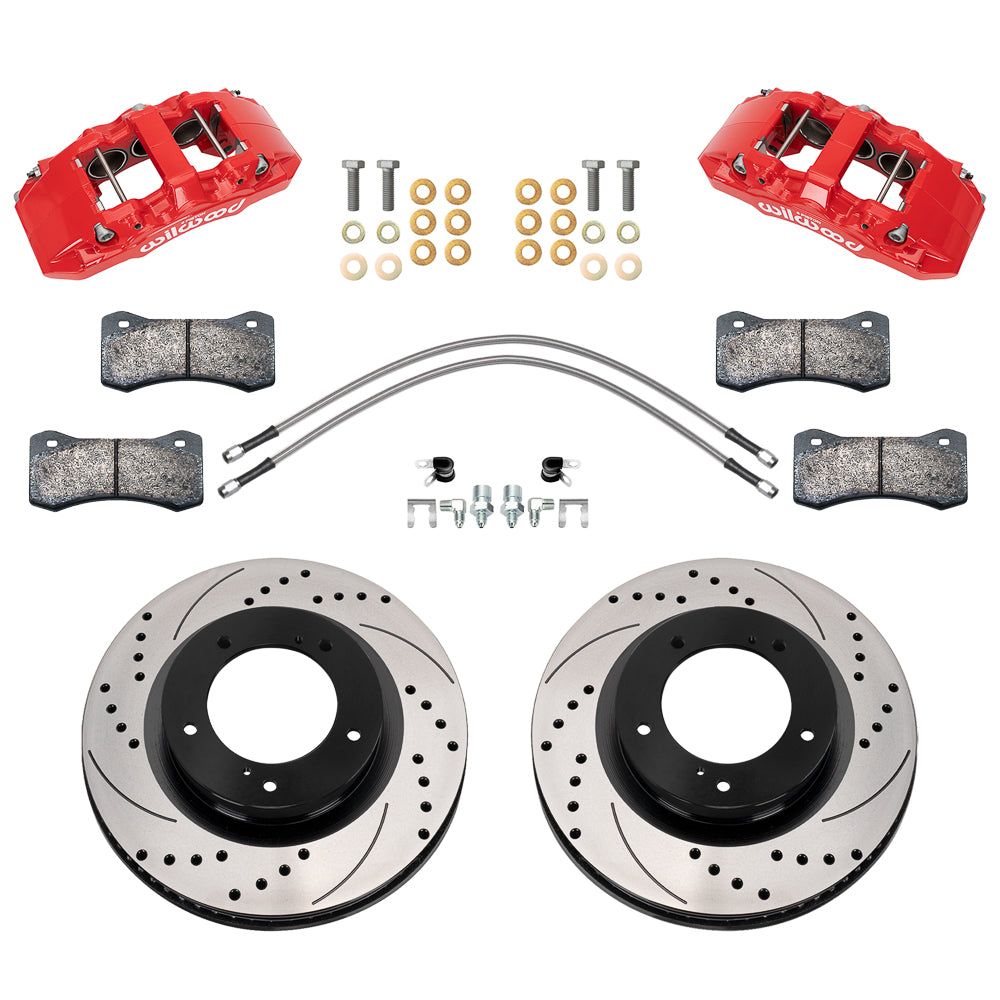

Wilwood red AERO6-DM front brake kit for 2007–2015 Toyota Tundra / 2008–2015 Sequoia, 13.39-inch drilled and slotted rotors and components laid out

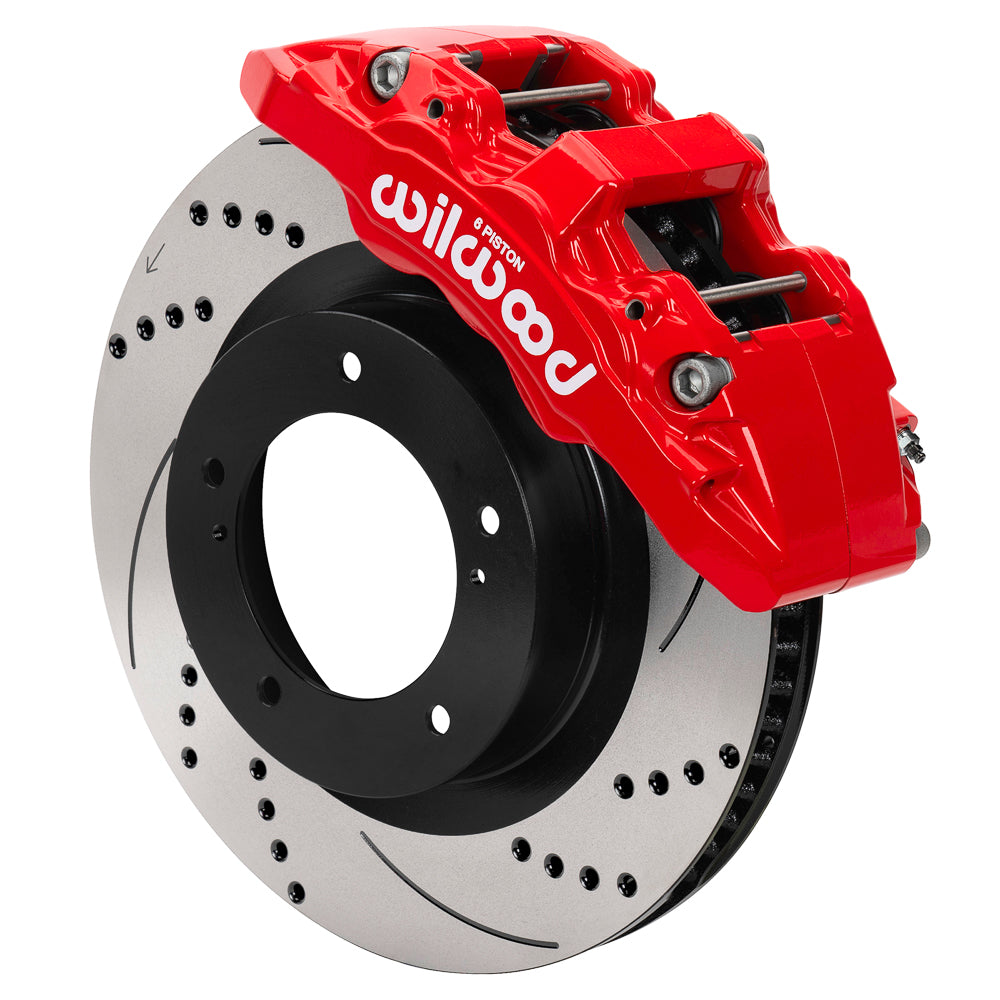

Wilwood red AERO6-DM front caliper with 13.39-inch drilled and slotted rotor, assembled brake view for 2007–2015 Toyota Tundra / 2008–2015 Sequoia
Wilwood red AERO6-DM front brake kit for 2007–2015 Toyota Tundra / 2008–2015 Sequoia, 13.39-inch drilled and slotted rotors and components laid out
Wilwood red AERO6-DM front caliper with 13.39-inch drilled and slotted rotor, assembled brake view for 2007–2015 Toyota Tundra / 2008–2015 Sequoia

Front Brake Kit for 2007–2015 Toyota Tundra / 2008–2015 Sequoia, Red AERO6-DM — Wilwood 13.39-inch Drilled/Slotted

SKU: 140-18357-DR

$1,817.04 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red AERO6-DM calipers and drilled/slotted 13.39-inch rotors form this front Toyota kit. The six-piston lug-mount calipers attach at the original spindle points, while the retained hub requires the verified five-hole, 5.91-inch rotor pattern. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

Calipers and pads

  • Calipers: AERO6-DM; 6 pistons
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: lug
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-22
  • Listed piston bore sizes: 1.75 / 1.62 / 1.62 in

Kit contents and separate parts

  • Manufacturer part number: 140-18357-DR
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: included; DOT-compliant hoses

Installation documents

Rotors and mounting dimensions

  • Rotors: 13.39 in; 340.11 mm diameter x 1.26 in; 32 mm thick; vented Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor coating/finish: Black Electro Coat
  • Rotor/hat wheel-stud clearance patterns: 5 x 5.91 in; nominal 5 x 150 mm

Fitment & Compatibility

Fits 2007–2015 Toyota Tundra and 2008–2015 Sequoia front factory disc spindles. The lug-mount calipers install at the original mounting points, and the one-piece rotors use a five-hole 5 x 5.91-inch pattern. The original hubs remain in service. The included 20-inch stainless braided hose kit is 220-15888. Check the wheel template even when the wheel meets the nominal 17-inch minimum, and verify clearance at full steering lock. Use the table below to confirm the individual Tundra or Sequoia year and application. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help you review the application requirements before you assemble the system.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
2007-2015 Toyota Tundra All Disc Disc Front Kit 1, 2
2008-2015 Toyota Sequoia All Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): 220-15888 (20.00 in)
  2. Front line-kit reference: 220-15888
