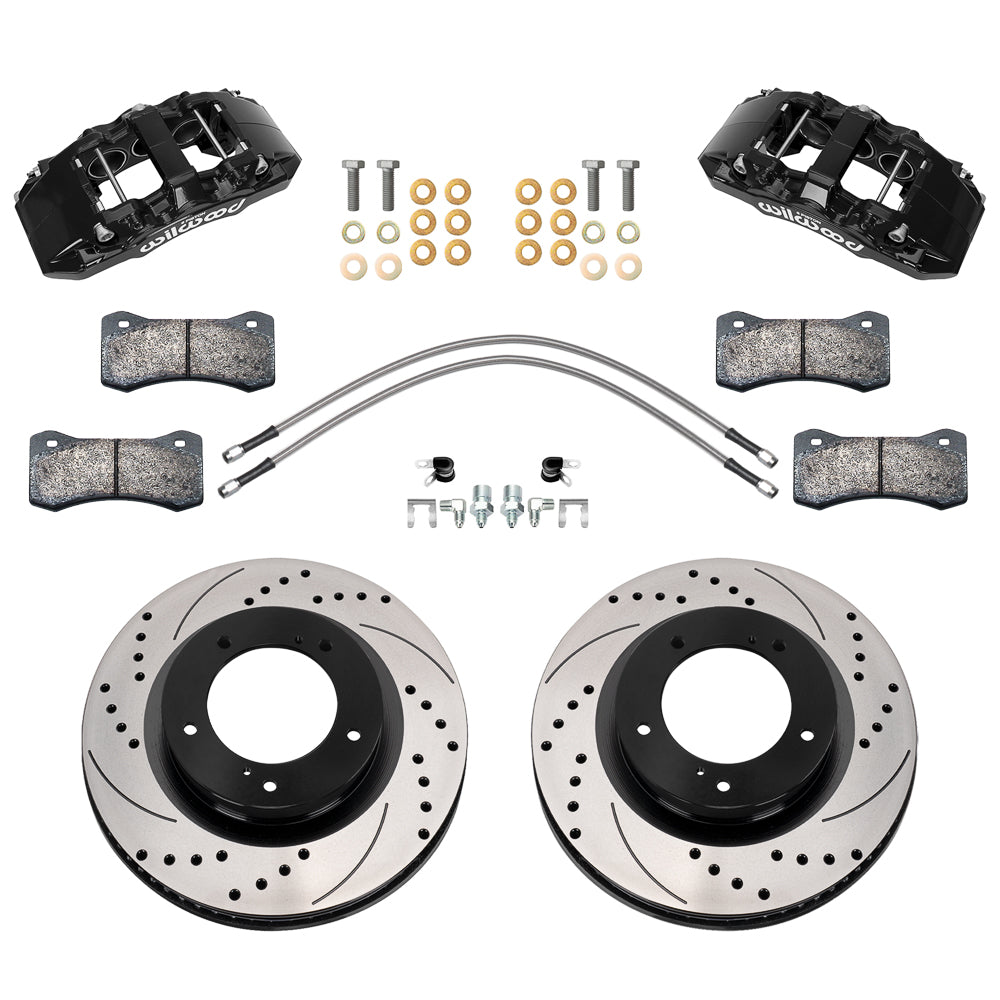

Wilwood black AERO6-DM front brake kit for 2007–2015 Toyota Tundra / 2008–2015 Sequoia, 13.39-inch drilled and slotted rotors and components laid out

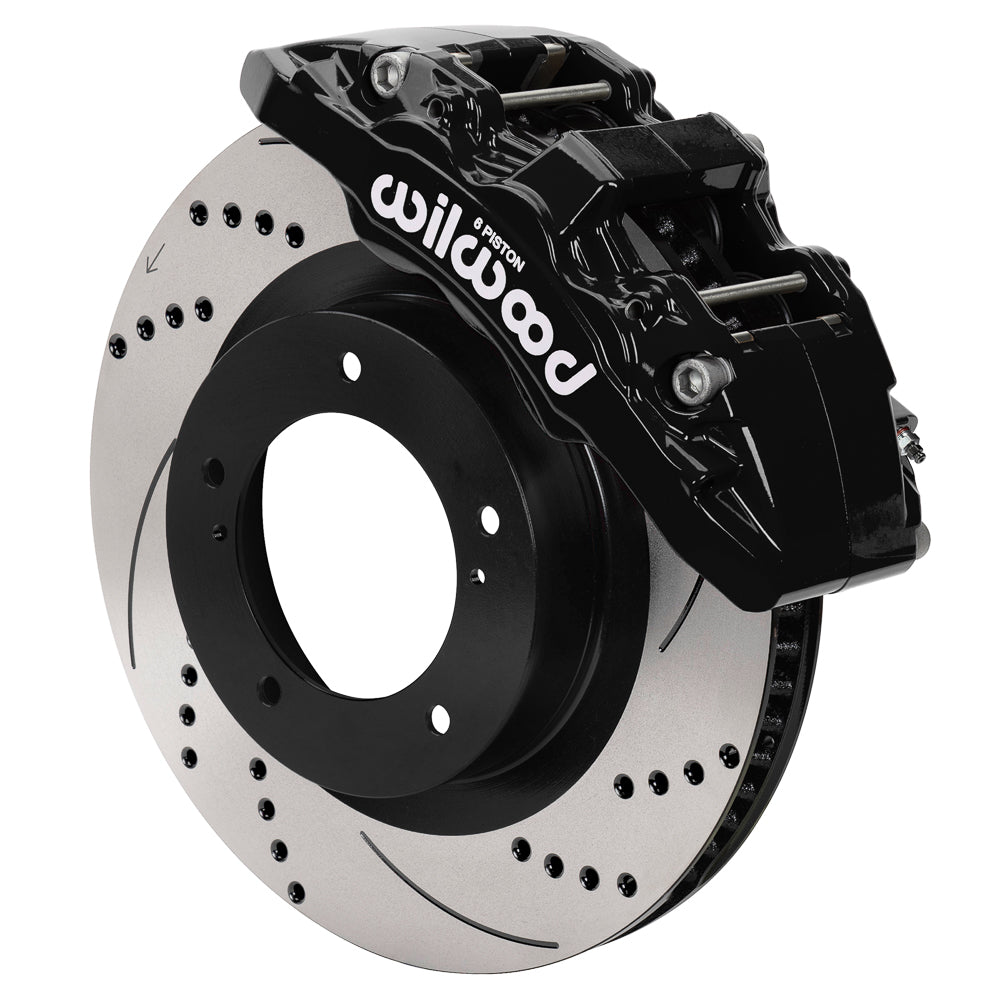

Wilwood black AERO6-DM front caliper with 13.39-inch drilled and slotted rotor, assembled brake view for 2007–2015 Toyota Tundra / 2008–2015 Sequoia
Wilwood black AERO6-DM front brake kit for 2007–2015 Toyota Tundra / 2008–2015 Sequoia, 13.39-inch drilled and slotted rotors and components laid out
Wilwood black AERO6-DM front caliper with 13.39-inch drilled and slotted rotor, assembled brake view for 2007–2015 Toyota Tundra / 2008–2015 Sequoia

2007–2015 Toyota Tundra / 2008–2015 Sequoia — Wilwood Drilled/Slotted Front Brakes, Black AERO6-DM, 13.39-inch Rotors

SKU: 140-18357-D

$1,817.04 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Toyota front package pairs black AERO6-DM six-piston calipers with one-piece drilled/slotted rotors. The 13.39-inch discs mount over the factory five-lug hubs, and the supplied BP-22 pads and braided lines complete the brake and flexible-hose components. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-18357-D
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: included; DOT-compliant hoses

Fitment & Compatibility

Fits 2007–2015 Toyota Tundra and 2008–2015 Sequoia front factory disc spindles. The lug-mount calipers install at the original mounting points, and the one-piece rotors use a five-hole 5 x 5.91-inch pattern. The original hubs remain in service. The included 20-inch stainless braided hose kit is 220-15888. Check the wheel template even when the wheel meets the nominal 17-inch minimum, and verify clearance at full steering lock. Use the table below to confirm the individual Tundra or Sequoia year and application. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

  • Rotors: 13.39 in; 340.11 mm diameter x 1.26 in; 32 mm thick; vented Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor coating/finish: Black Electro Coat
  • Rotor/hat wheel-stud clearance patterns: 5 x 5.91 in; nominal 5 x 150 mm

Calipers and pads

  • Calipers: AERO6-DM; 6 pistons
  • Caliper finish: Black Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: lug
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-22
  • Listed piston bore sizes: 1.75 / 1.62 / 1.62 in

Installation documents

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
2007-2015 Toyota Tundra All Disc Disc Front Kit 1, 2
2008-2015 Toyota Sequoia All Disc Disc Front Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): 220-15888 (20.00 in)
  2. Front line-kit reference: 220-15888
