Product details
Black AERO6-DM calipers mount directly to the original front spindle locations on the specified Tundra and Sequoia. The kit includes 13.39 x 1.26-inch GT rotors and 20-inch braided hoses, retaining the five-lug hubs and the one-piece rotor arrangement. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.
Fitment & Compatibility
Fits 2007–2015 Toyota Tundra and 2008–2015 Sequoia front factory disc spindles. The lug-mount calipers install at the original mounting points, and the one-piece rotors use a five-hole 5 x 5.91-inch pattern. The original hubs remain in service. The included 20-inch stainless braided hose kit is 220-15888. Check the wheel template even when the wheel meets the nominal 17-inch minimum, and verify clearance at full steering lock. Use the table below to confirm the individual Tundra or Sequoia year and application. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Technical Details
Calipers and pads
- Calipers: AERO6-DM; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: lug
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-22
- Listed piston bore sizes: 1.75 / 1.62 / 1.62 in
Rotors and mounting dimensions
- Rotors: 13.39 in; 340.11 mm diameter x 1.26 in; 32 mm thick; vented Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Rotor/hat wheel-stud clearance patterns: 5 x 5.91 in; nominal 5 x 150 mm

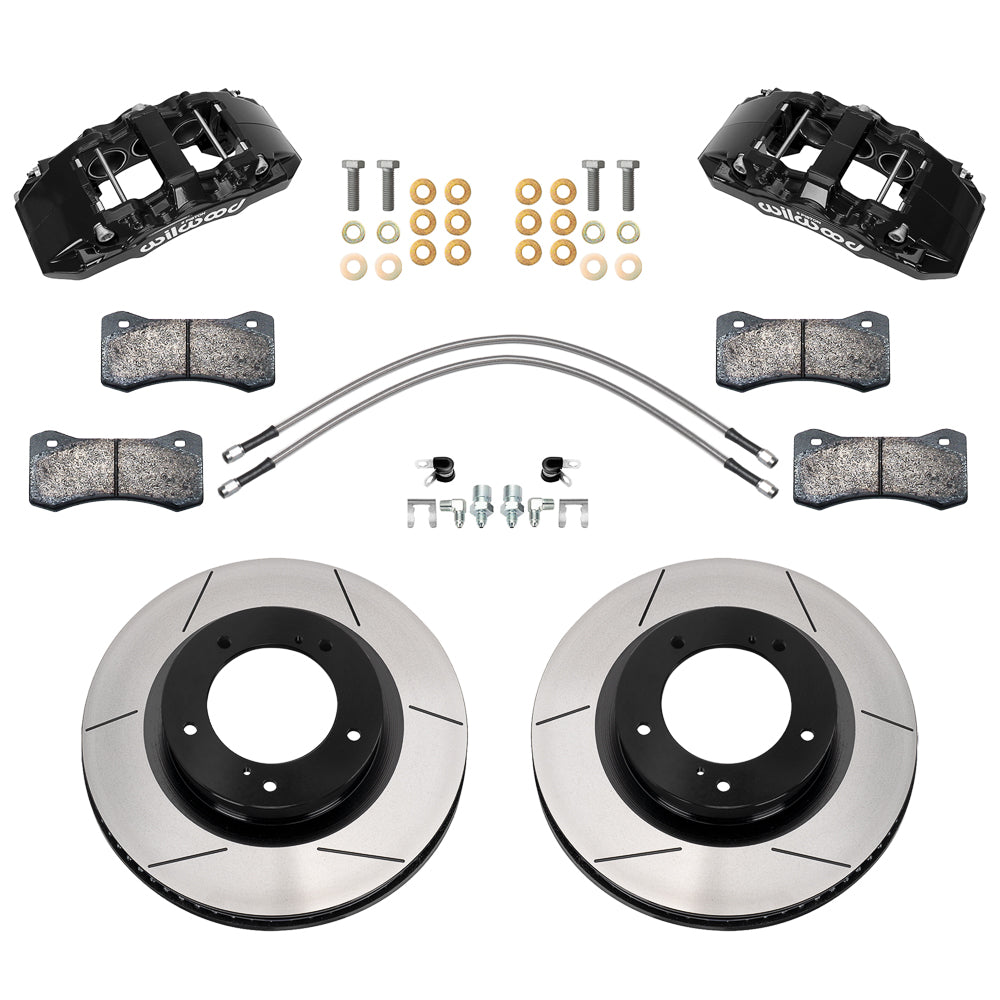

Kit contents and separate parts
- Manufacturer part number: 140-18357
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Installation documents
With over 20 years of experience in brake systems and restoration, PMB Performance can help check the mounting arrangement, wheel clearance and remaining installation parts for your build.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 2007-2015 | Toyota | Tundra | All | Disc | Disc | Front Kit | 1, 2 |
| 2008-2015 | Toyota | Sequoia | All | Disc | Disc | Front Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): 220-15888 (20.00 in)
- Front line-kit reference: 220-15888
