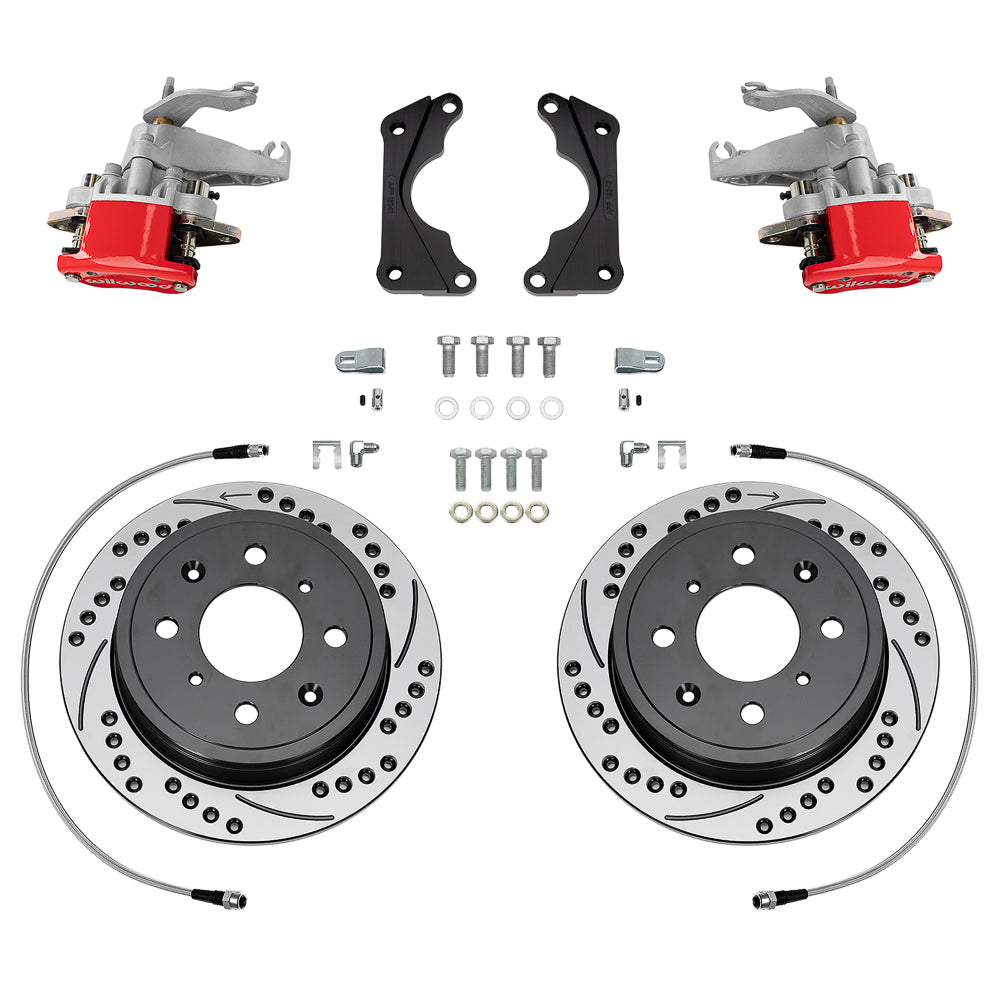

Wilwood red HM7 rear brake kit for Honda / Acura Original Rear Disc Applications, 9.37-inch drilled and slotted rotors and components laid out

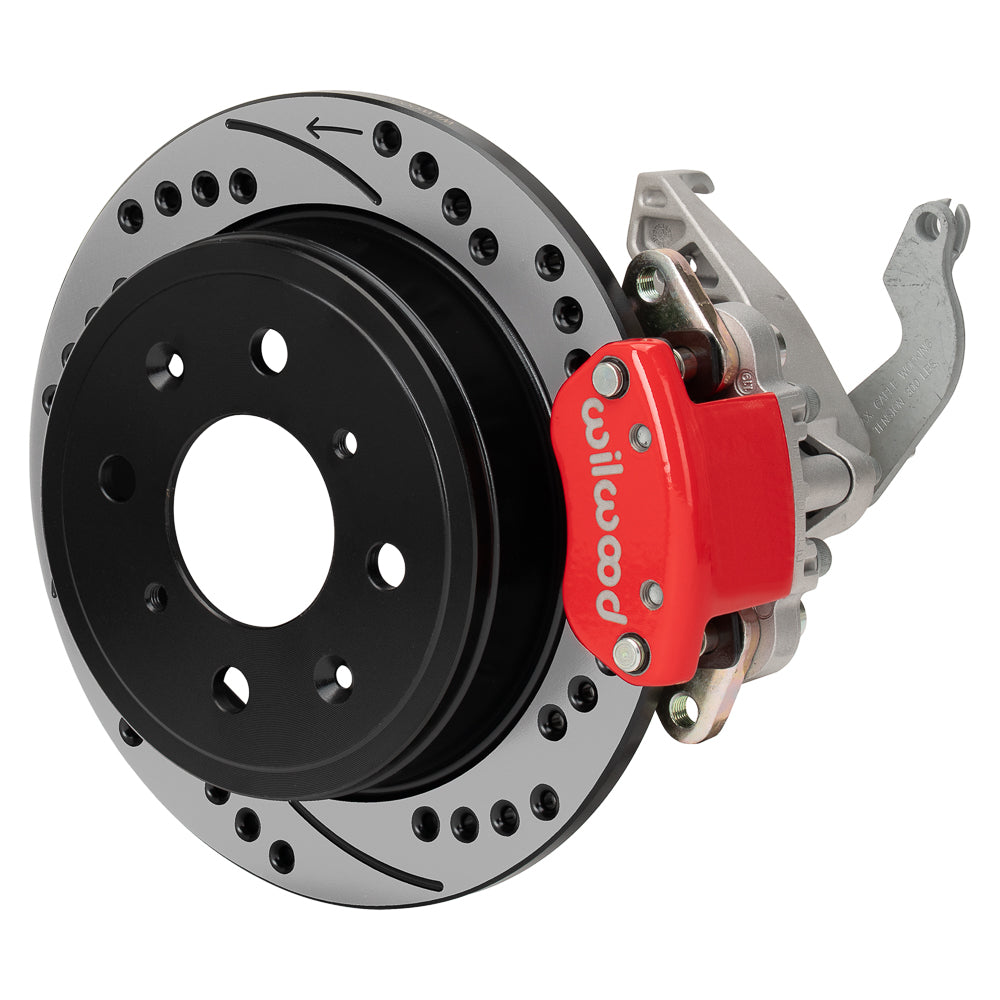

Wilwood red HM7 rear caliper with 9.37-inch drilled and slotted rotor, assembled brake view for Honda / Acura Original Rear Disc Applications
Wilwood red HM7 rear brake kit for Honda / Acura Original Rear Disc Applications, 9.37-inch drilled and slotted rotors and components laid out
Wilwood red HM7 rear caliper with 9.37-inch drilled and slotted rotor, assembled brake view for Honda / Acura Original Rear Disc Applications

Wilwood Drilled/Slotted 9.37-inch Rotors with Red HM7 — 1990–2001 Honda / Acura Original Rear Disc Applications Rear Kit

SKU: 140-18343-DR

$789.14 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red HM7 calipers give this rear-disc package its finish, paired with drilled/slotted 9.37-inch rotors. It is configured for the listed Honda and Acura disc-brake uprights, and the included braided flexlines address the hydraulic connection rather than the separate parking cables. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-18343-DR
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: included; DOT-compliant hoses
  • Required axle/hub offset: 2.39 in; 60.71 mm

Fitment & Compatibility

For the original rear-disc applications listed: Acura Integra, Honda CRX, Civic and Civic del Sol. The table separates rear-disc EX/Si trims, del Sol equipment and the 1997–2001 Integra Type-R exclusion. This is the disc-brake mounting configuration with 2.39-inch hub offset, not a rear-drum conversion. Check the existing upright, hub and parking-cable routing. The package includes 16-inch braided flexlines and retains the existing hubs; parking cables are separate. Nominal minimum wheel diameter: 14 in; 355.6 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

  • Rotors: 9.37 in diameter x 0.39 in thick; solid iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor/hat wheel-stud clearance patterns: 4 x 3.94 in

Calipers and pads

  • Calipers: HM7 with integral cable-operated parking lever
  • Caliper finish: Red finish

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Acura Integra All Disc Disc Rear Kit 1, 2, 3
1990-1991 Honda CRX Si SI Disc Disc Rear Kit 1, 2, 3
1992-1995 Honda Civic EX Sedan EX w/ Rear Disc Disc Disc Rear Kit 1, 2, 3
1992-1993 Honda Civic Si HB SI Disc Disc Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Disc Disc Disc Rear Kit 1, 2, 3
1994-1995 Honda Civic HB SI w/ out ABS Disc Disc Rear Kit 1, 2, 3
1994-1995 Honda Civic EX Coupe EX w/ Rear Disc Disc Disc Rear Kit 1, 2, 3
1994-1995 Honda Civic Si Hatchback SI Disc Disc Rear Kit 1, 2, 3
1994 Honda Civic del Sol W/ Rear Disc VTEC Disc Disc Rear Kit 1, 2, 3
1995-1997 Honda Civic del Sol W/ Rear Disc S Disc Disc Rear Kit 1, 2, 3
1995-1997 Honda Civic del Sol W/ Rear Disc SI Disc Disc Rear Kit 1, 2, 3
1995-1997 Honda Civic del Sol W/ Rear Disc w/ ABS VTEC Disc Disc Rear Kit 1, 2, 3
1997-2001 Acura Integra All, Except Type-R Disc Disc Rear Kit 1, 2, 3
1999-2000 Honda Civic Si Coupe SI Disc Disc Rear Kit 1, 2, 3

Application Notes

  1. For the original rear-disc applications listed. Verify the hub and upright configuration against Wilwood DS-1698 before installation.
  2. Line kit included (manufacturer): 220-10840 (16.00 in)
  3. Rear line-kit reference: 220-10840
