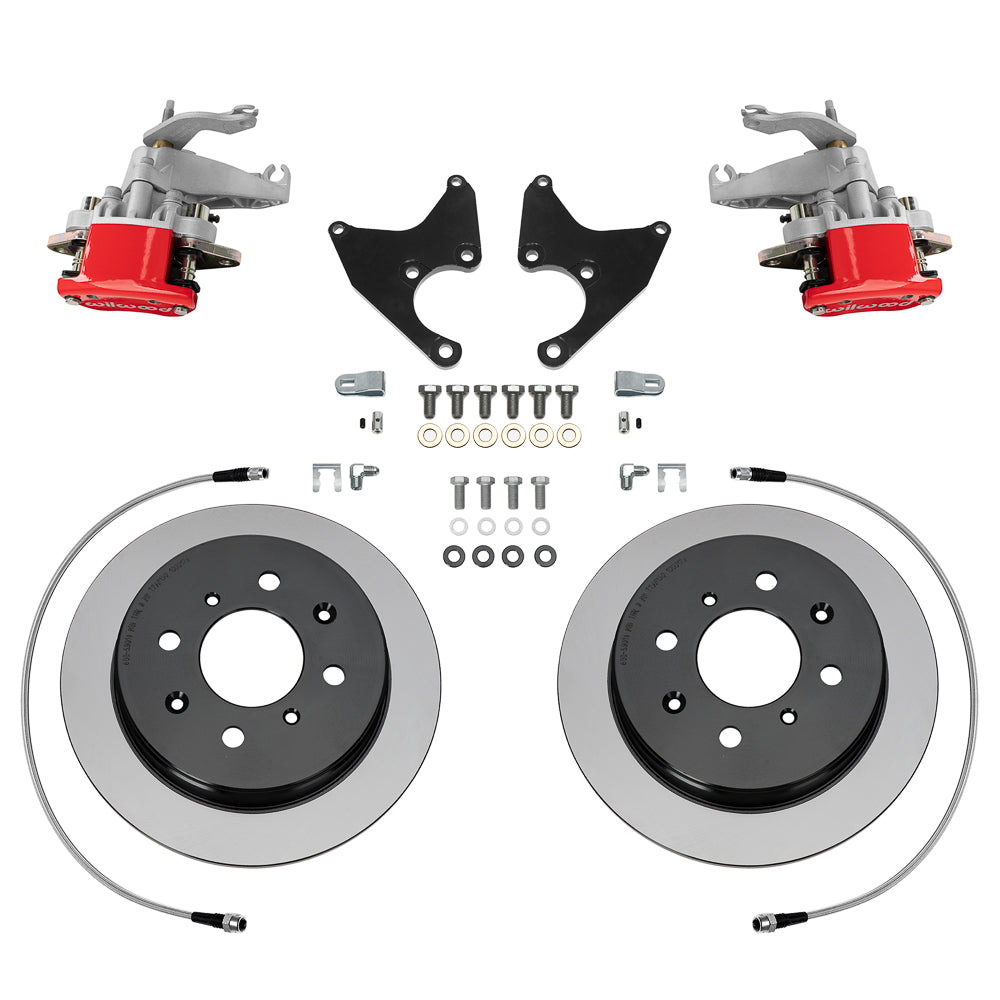

Wilwood red HM7 rear brake kit for Honda Civic / CRX / Civic del Sol Rear Drums, 9.37-inch plain rotors and components laid out

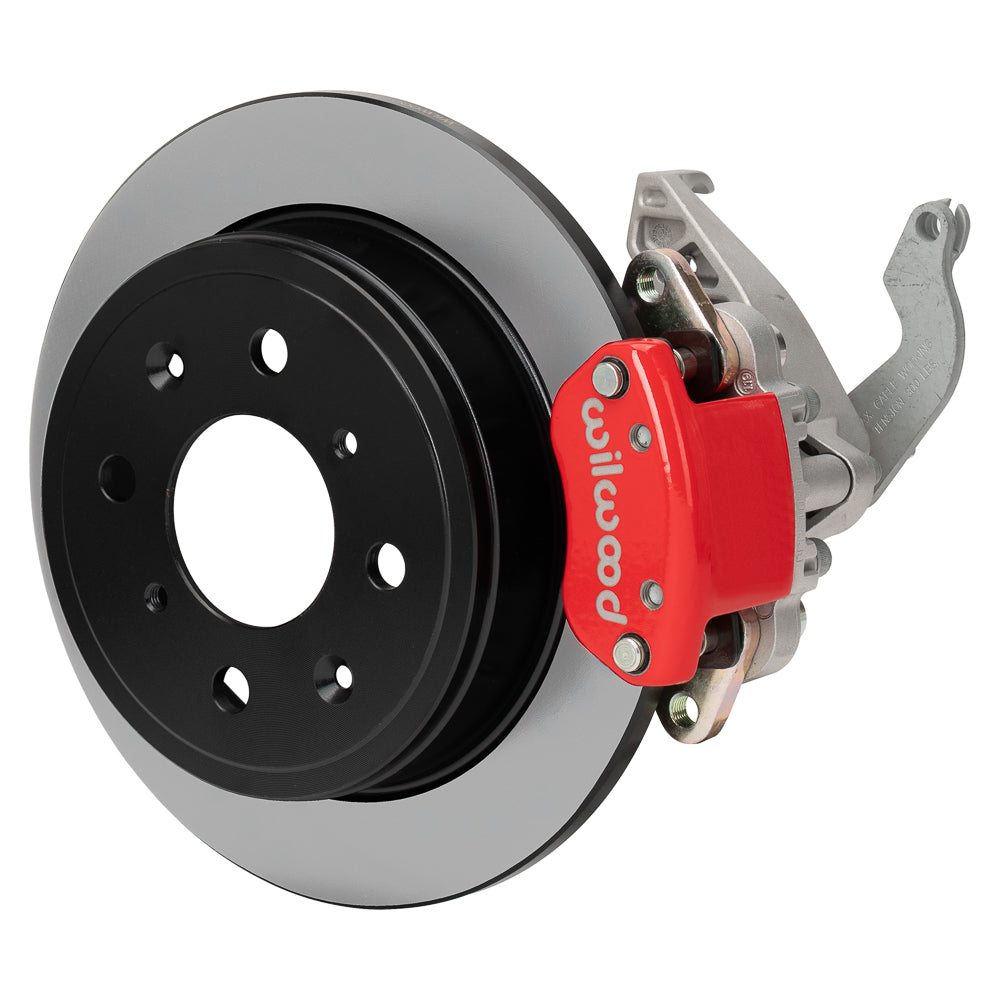

Wilwood red HM7 rear caliper with 9.37-inch plain rotor, assembled brake view for Honda Civic / CRX / Civic del Sol Rear Drums
Wilwood red HM7 rear brake kit for Honda Civic / CRX / Civic del Sol Rear Drums, 9.37-inch plain rotors and components laid out
Wilwood red HM7 rear caliper with 9.37-inch plain rotor, assembled brake view for Honda Civic / CRX / Civic del Sol Rear Drums

Rear Wilwood HM7 Brake Conversion — Red Calipers, 9.37-inch Plain, Honda Civic (1988–1995), CRX (1988–1991) and Civic del Sol (1993–1997), Original Rear Drums

SKU: 140-18340-R

$724.45 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Plain-face rotors and red HM7 calipers distinguish this Honda rear-drum conversion. The one-piece 9.37 x 0.39-inch discs retain the original hub arrangement, and the calipers combine hydraulic service braking with mechanical parking-brake actuation. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-18340-R
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: included; DOT-compliant hoses
  • Required axle/hub offset: 2.71 in; 68.83 mm

Fitment & Compatibility

Converts the original rear-drum applications listed for Honda Civic, CRX and Civic del Sol to rear discs with a cable-operated parking brake. DS-1696 identifies the 1988–2004 Civic rear-drum installation; use the table for the specific model, trim, transmission and ABS restrictions rather than assuming every model in that period fits. Verify the hub/upright geometry and 2.71-inch offset. The existing hubs are retained. Includes 16-inch braided flexlines; parking cables are separate and must suit the HM7 lever and cable-end arrangement. Nominal minimum wheel diameter: 14 in; 355.6 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

  • Rotors: 9.37 in diameter x 0.39 in thick; solid iron
  • Friction faces: Plain Face
  • Rotor/hat wheel-stud clearance patterns: 4 x 3.94 in

Calipers and pads

  • Calipers: HM7 with integral cable-operated parking lever
  • Caliper finish: Red finish

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Rear Kit 1, 2, 3
1988 Honda Civic Sedan w/ MT Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda Civic Base HB Base Disc Drum Rear Kit 1, 2, 3
1988-1989 Honda CRX DX & SI Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda CRX HF HF Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic HB DX Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Si HB SI Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda CRX DX Disc Drum Rear Kit 1, 2, 3
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Rear Kit 1, 2, 3
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3

Application Notes

  1. For the original rear-drum applications listed. Verify the hub and upright configuration against Wilwood DS-1696 before installation.
  2. Line kit included (manufacturer): 220-10840 (16.00 in)
  3. Rear line-kit reference: 220-10840
