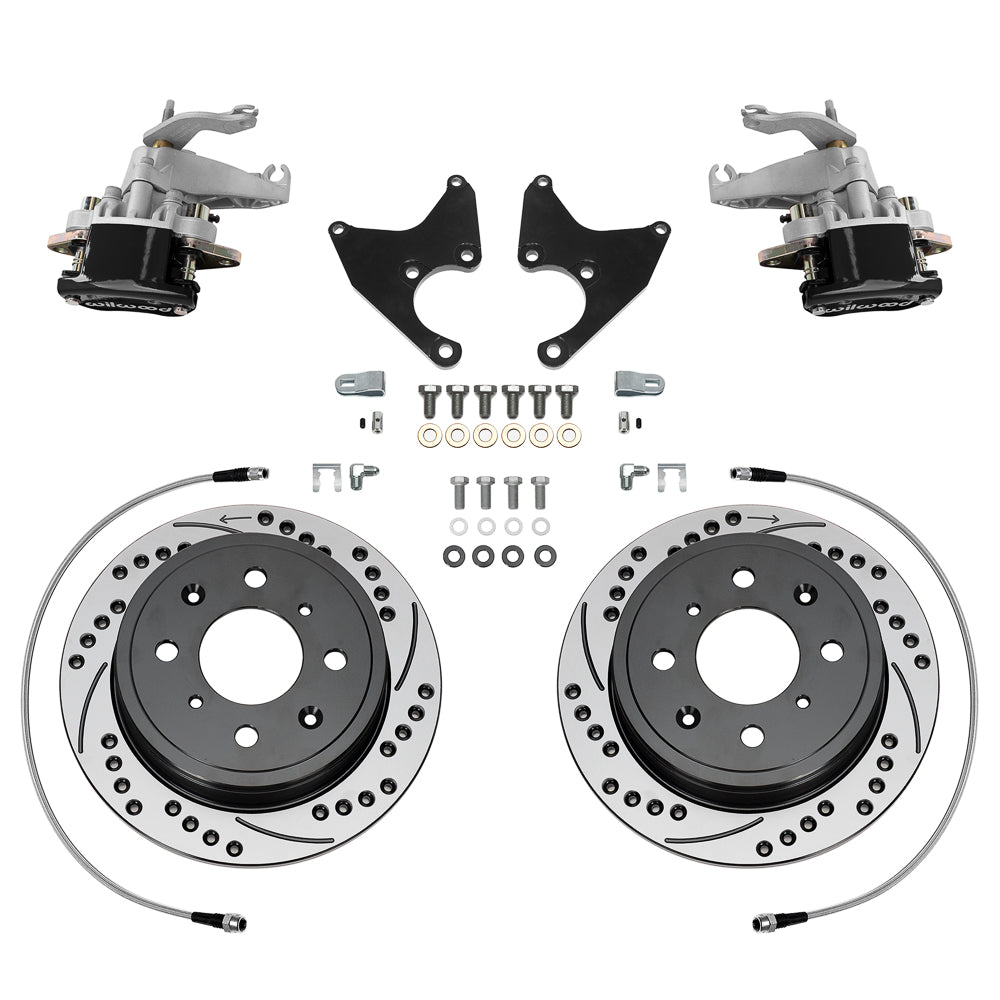

Wilwood black HM7 rear brake kit for Honda Civic / CRX / Civic del Sol Rear Drums, 9.37-inch drilled and slotted rotors and components laid out

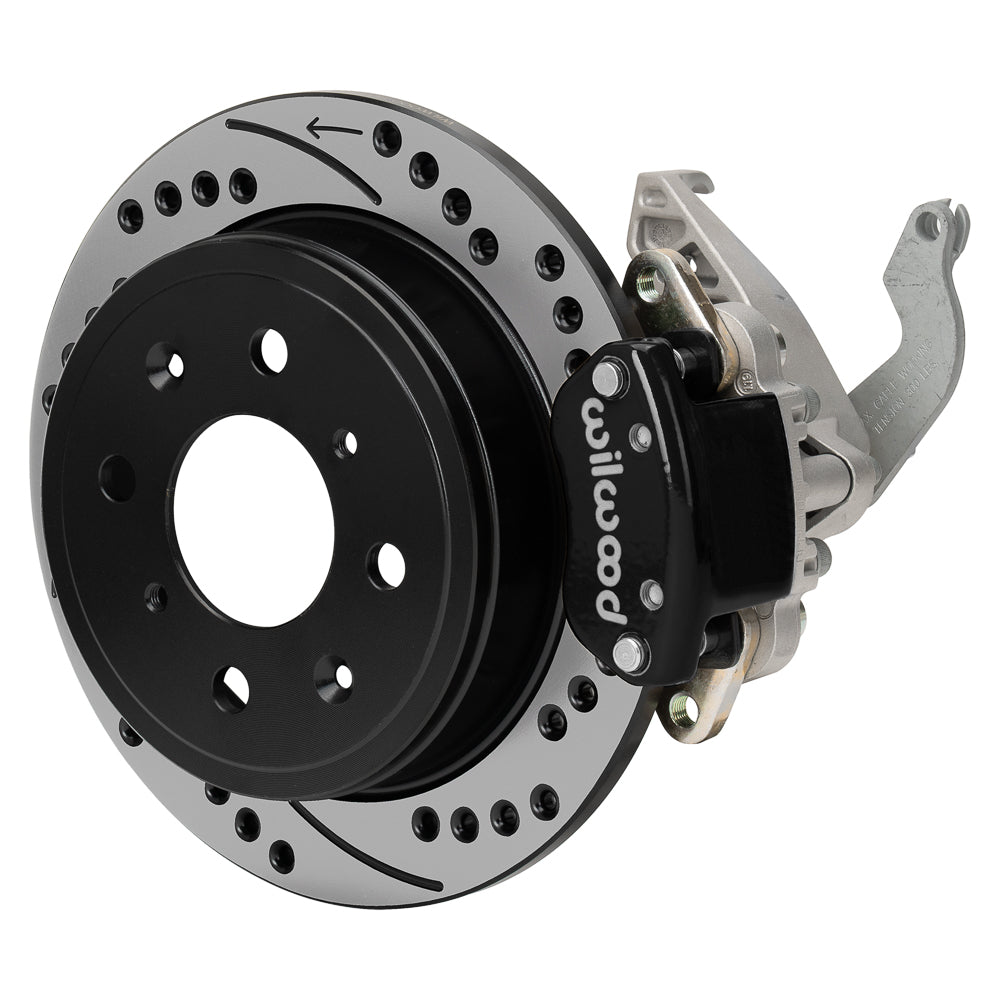

Wilwood black HM7 rear caliper with 9.37-inch drilled and slotted rotor, assembled brake view for Honda Civic / CRX / Civic del Sol Rear Drums
Wilwood black HM7 rear brake kit for Honda Civic / CRX / Civic del Sol Rear Drums, 9.37-inch drilled and slotted rotors and components laid out
Wilwood black HM7 rear caliper with 9.37-inch drilled and slotted rotor, assembled brake view for Honda Civic / CRX / Civic del Sol Rear Drums

Wilwood Honda Civic (1988–1995), CRX (1988–1991) and Civic del Sol (1993–1997), Original Rear Drums Brake Kit — Black HM7, Drilled/Slotted 9.37-inch Rear Rotors

SKU: 140-18340-D

$789.14 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This HM7 drum conversion combines black calipers with 9.37-inch drilled/slotted solid rotors. The Honda rear hub remains in service, and the caliper brackets establish the drum-application mounting geometry rather than the layout used by a factory rear-disc car. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.

Technical Details

Rotors and mounting dimensions

  • Rotors: 9.37 in diameter x 0.39 in thick; solid iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor/hat wheel-stud clearance patterns: 4 x 3.94 in

Calipers and pads

  • Calipers: HM7 with integral cable-operated parking lever
  • Caliper finish: Black finish

Kit contents and separate parts

  • Manufacturer part number: 140-18340-D
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: included; DOT-compliant hoses
  • Required axle/hub offset: 2.71 in; 68.83 mm

Fitment & Compatibility

Converts the original rear-drum applications listed for Honda Civic, CRX and Civic del Sol to rear discs with a cable-operated parking brake. DS-1696 identifies the 1988–2004 Civic rear-drum installation; use the table for the specific model, trim, transmission and ABS restrictions rather than assuming every model in that period fits. Verify the hub/upright geometry and 2.71-inch offset. The existing hubs are retained. Includes 16-inch braided flexlines; parking cables are separate and must suit the HM7 lever and cable-end arrangement. Nominal minimum wheel diameter: 14 in; 355.6 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Rear Kit 1, 2, 3
1988 Honda Civic Sedan w/ MT Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda Civic Base HB Base Disc Drum Rear Kit 1, 2, 3
1988-1989 Honda CRX DX & SI Disc Drum Rear Kit 1, 2, 3
1988-1991 Honda CRX HF HF Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic HB DX Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Rear Kit 1, 2, 3
1989-1991 Honda Civic Si HB SI Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda Civic EX Sedan EX Disc Drum Rear Kit 1, 2, 3
1990-1991 Honda CRX DX Disc Drum Rear Kit 1, 2, 3
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Rear Kit 1, 2, 3
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Rear Kit 1, 2, 3
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Rear Kit 1, 2, 3
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Rear Kit 1, 2, 3
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Rear Kit 1, 2, 3
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Rear Kit 1, 2, 3
1995 Honda Civic HB Auto Excludes SI Model Disc Drum Rear Kit 1, 2, 3

Application Notes

  1. For the original rear-drum applications listed. Verify the hub and upright configuration against Wilwood DS-1696 before installation.
  2. Line kit included (manufacturer): 220-10840 (16.00 in)
  3. Rear line-kit reference: 220-10840
