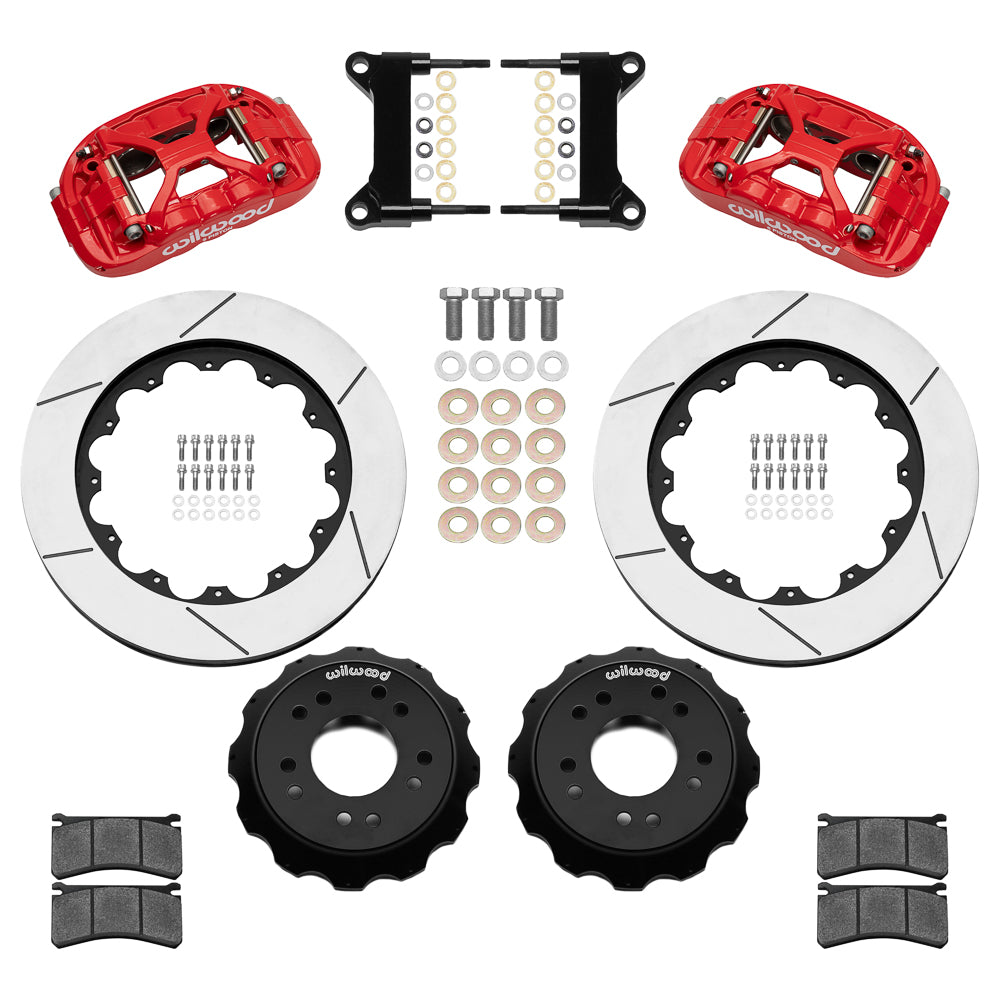

Wilwood red XRS6R front brake kit for 1963–1987 Chevrolet / GMC Trucks with Aluminum ProSpindles, 14.00-inch slotted rotors and components laid out

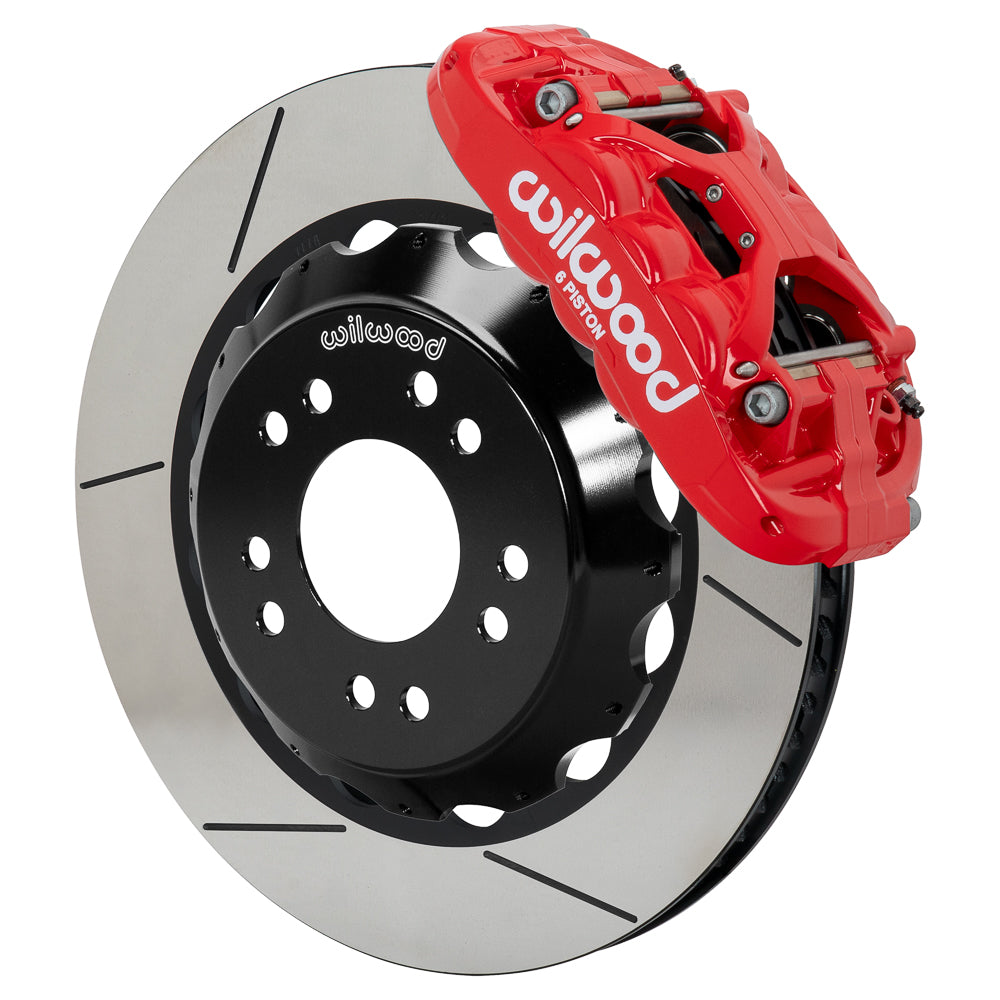

Wilwood red XRS6R front caliper with 14.00-inch slotted rotor, assembled brake view for 1963–1987 Chevrolet / GMC Trucks with Aluminum ProSpindles
Wilwood red XRS6R front brake kit for 1963–1987 Chevrolet / GMC Trucks with Aluminum ProSpindles, 14.00-inch slotted rotors and components laid out
Wilwood red XRS6R front caliper with 14.00-inch slotted rotor, assembled brake view for 1963–1987 Chevrolet / GMC Trucks with Aluminum ProSpindles

Wilwood XRS6R for 1963–1987 Chevrolet / GMC Trucks with Aluminum ProSpindles: Front Brake Package with GT Slotted Rotors, 14.00-inch, Red

SKU: 140-18302-R

$2,741.80 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The red XRS6R/GT package uses 14-inch slotted discs on aluminum hats, with BP-10 pads included. Its front mounting arrangement is specific to Wilwood C10 aluminum modular ProSpindles, and the existing hubs remain separate from this brake kit. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.

Fitment & Compatibility

A 14-inch front brake envelope and the Wilwood C10 aluminum modular Pro Drop Spindle define this installation. Match the five-lug hub hardware and the individual Chevrolet/GMC truck application in the table; stock spindles will not accept the kit. Wheel-mounting position changes relative to the factory brakes and spindle: outward by 0.41 inch per side for 1963–1970, inward by 0.06 inch for 1971–1987. Allow for those changes when checking wheel and body clearance. Hubs and spindles are not supplied, nor are flexlines. Select the applicable 220-7056, 220-11237 or 220-12168 hose kit. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Technical Details

Calipers and pads

  • Calipers: XRS6R; 6 pistons
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.75 / 1.25 / 1.25 in

Rotors and mounting dimensions

  • Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
  • Friction faces: GT Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 72 curved
  • Hats: Aluminum; Black E-Coat; 1.380-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

Kit contents and separate parts

  • Manufacturer part number: 140-18302-R
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included
  • Related installation parts to select for the application: 220-7056; 220-11237; 220-12168

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience in brake systems and restoration, PMB Performance can help check the mounting arrangement, wheel clearance and remaining installation parts for your build.

Vehicle Applications

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 Chevrolet Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1965 GMC 1000 Series Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 GMC Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1966 GMC 1000 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1974 Chevrolet Blazer Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1982 GMC Jimmy Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1986 Chevrolet C10 Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1978 GMC C15 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Pickup Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Suburban Vehicles using Wilwood Aluminum Modular ProSpindles, 5 Lug only Drop Drum Front Kit 1, 2, 3, 4, 5

Application Notes

  1. Brake kits require Wilwood C10 Aluminum Modular Pro Drop Spindles to fit. Will not fit original equipment spindles.
  2. Brake kit wheel offset is +0.41 outboard from stock OE brakes and spindle for years 1963 – 1970. Wheel offset is -0.06 inboard from stock OE brakes and spindle for years 1971 – 1987.
  3. This is a front service-brake kit. Any rear parking-brake cable is selected separately for the vehicle's rear brake system.
  4. Line kit included (manufacturer): None
  5. Front line-kit reference: 220-7056, 220-11237, 220-12168
