Wilwood red XRS4R rear brake kit for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset, 12.88-inch slotted rotors and components laid out

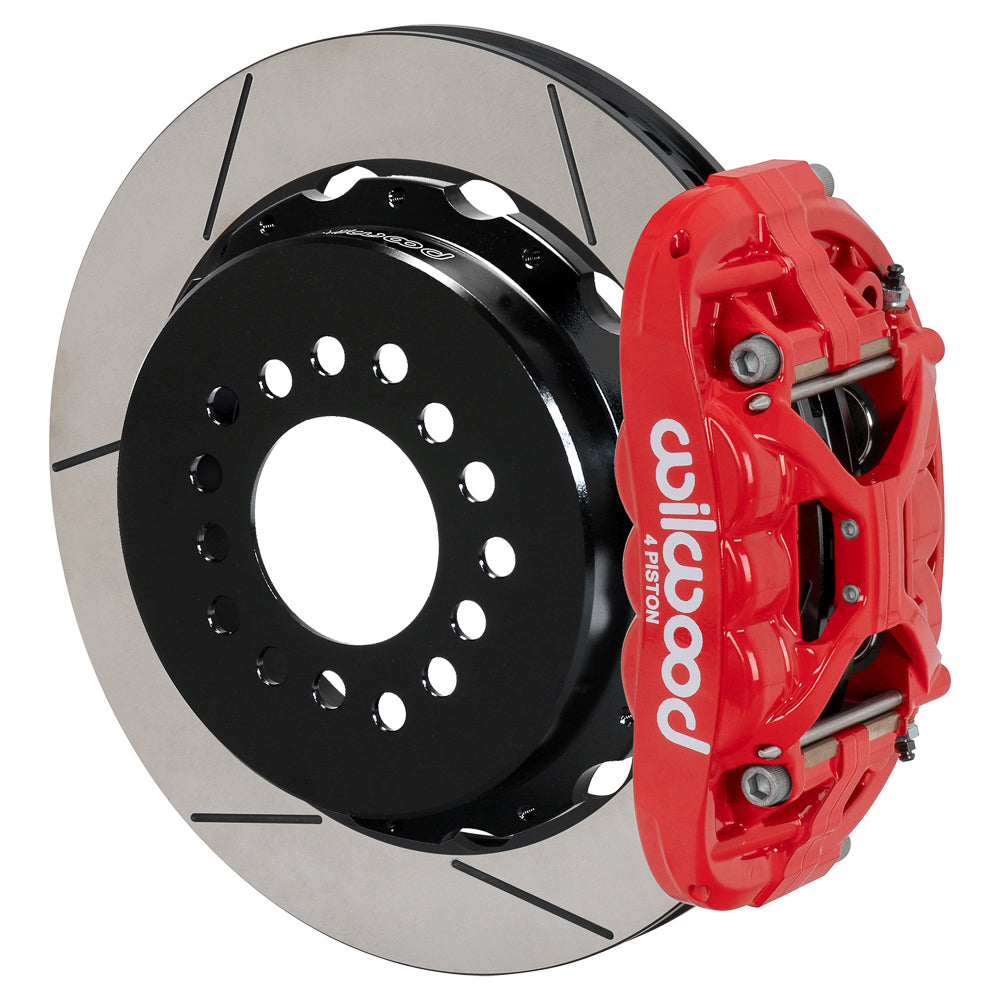

Wilwood red XRS4R rear caliper with 12.88-inch slotted rotor, assembled brake view for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset
Wilwood red XRS4R rear brake kit for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset, 12.88-inch slotted rotors and components laid out
Wilwood red XRS4R rear caliper with 12.88-inch slotted rotor, assembled brake view for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset

Chevrolet / GMC Large C10 Axle, 2.42-inch Offset — Wilwood GT Slotted Rear Disc and Parking Brakes, Red XRS4R, 12.88-inch Rotors

SKU: 140-18297-R

$2,508.03 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

For a five-lug Large C10 flange, this rear kit pairs red calipers with GT slotted rotors and BP-10 pads. The 12.88-inch discs have 48 curved cooling vanes, and their parking-brake hats are configured for the 2.42-inch axle offset. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.

Technical Details

Rotors and mounting dimensions

  • Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
  • Friction faces: GT Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 48 curved
  • Hats: Aluminum; Black E-Coat; 1.540-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Stud specification: 1/2-inch wheel studs (hat clearance; verify existing axle studs)

Calipers and pads

  • Calipers: XRS4R; 4 pistons
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.12 / 1.12 in

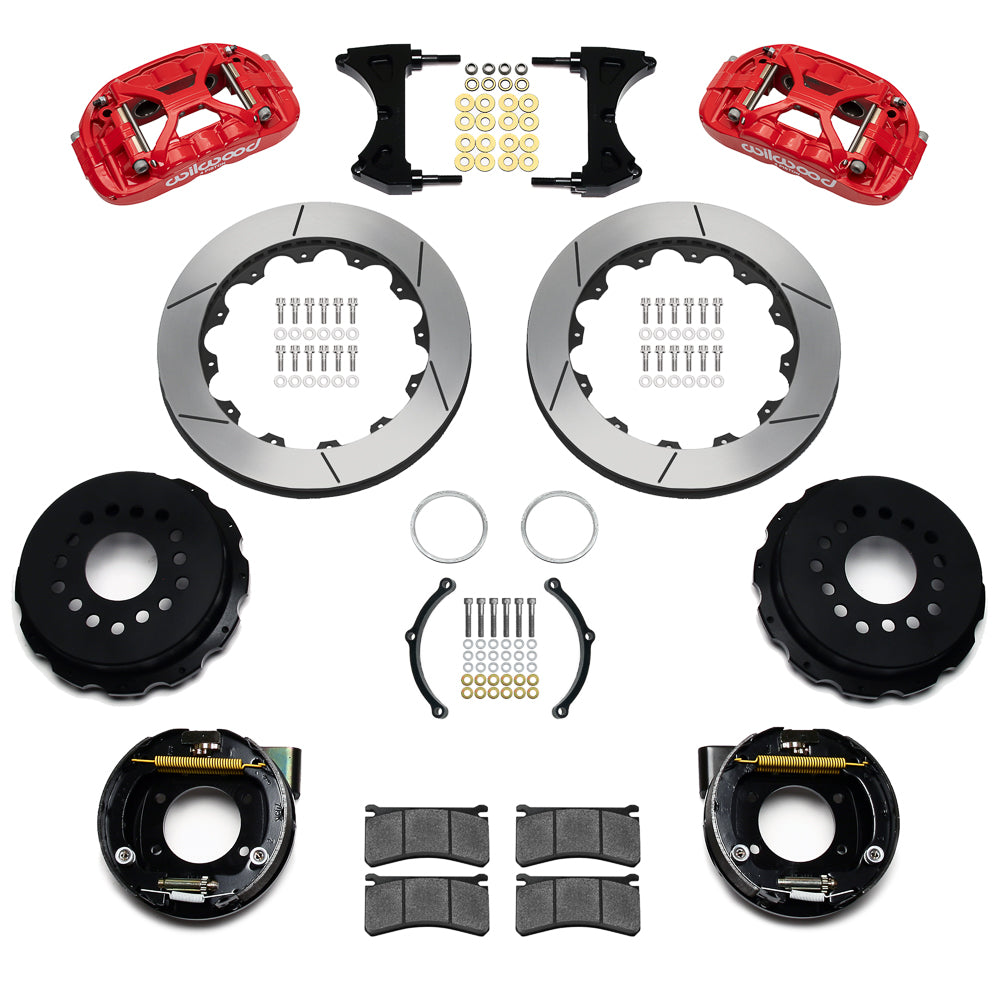

Kit contents and separate parts

  • Manufacturer part number: 140-18297-R
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included
  • Axle housing flange: Large Chevy C10
  • Required axle/hub offset: 2.42 in; 61.47 mm
