Wilwood black XRS4R rear brake kit for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset, 12.88-inch drilled and slotted rotors and components laid out

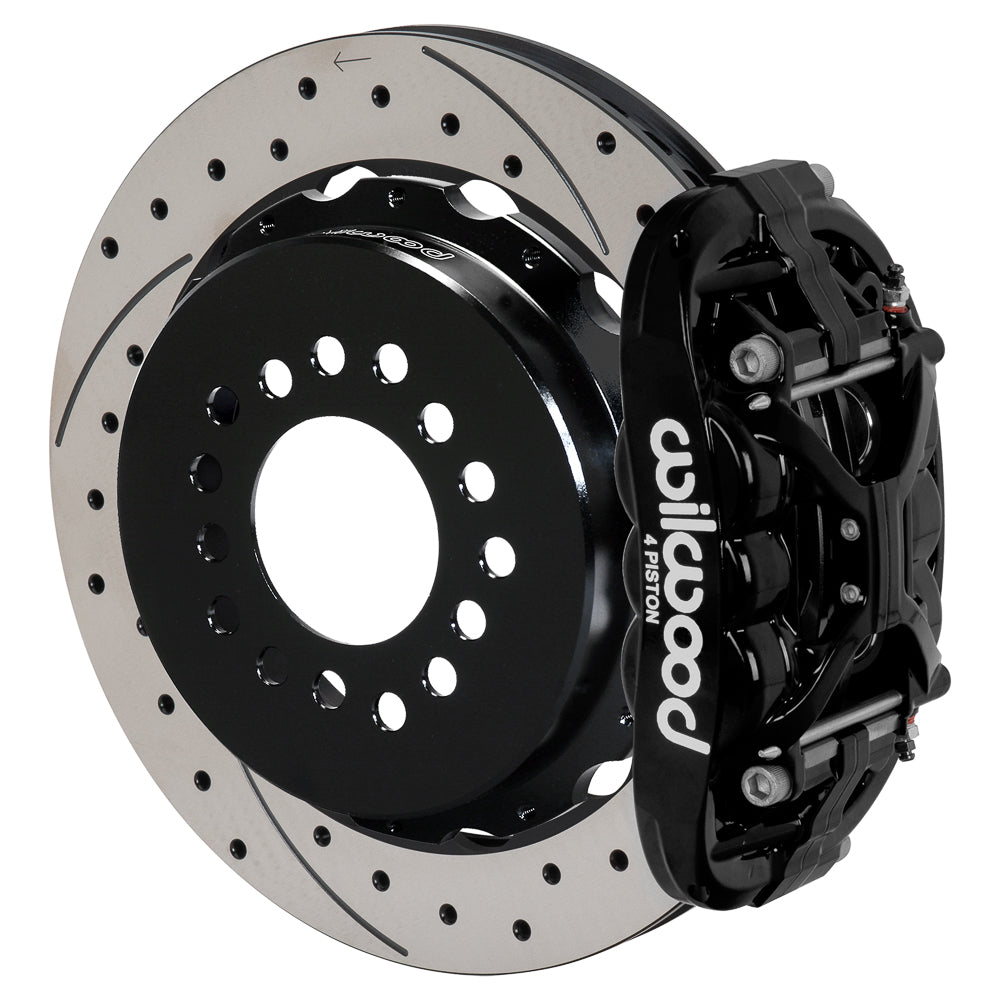

Wilwood black XRS4R rear caliper with 12.88-inch drilled and slotted rotor, assembled brake view for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset
Wilwood black XRS4R rear brake kit for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset, 12.88-inch drilled and slotted rotors and components laid out
Wilwood black XRS4R rear caliper with 12.88-inch drilled and slotted rotor, assembled brake view for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset

Wilwood XRS4R for Chevrolet / GMC Large C10 Axle, 2.42-inch Offset: Rear Disc and Parking Brake Package with Drilled/Slotted Rotors, 12.88-inch, Black

SKU: 140-18297-D

$2,508.03 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

The Large C10 axle version of this XRS4R rear kit uses black calipers and drilled/slotted Spec-37 discs. Its 2.42-inch offset and five-lug requirement govern fitment across the listed Chevrolet/GMC applications, with cables and brake hoses selected separately. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

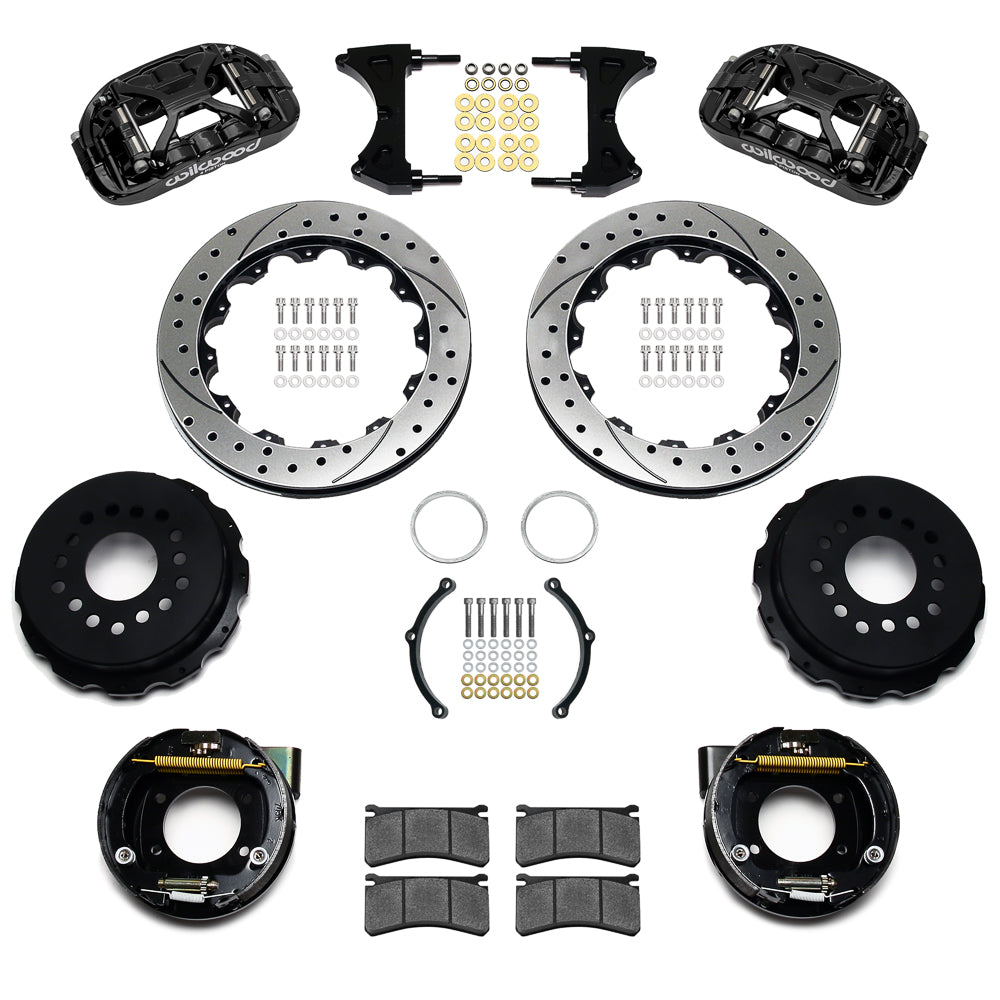

Kit contents and separate parts

  • Manufacturer part number: 140-18297-D
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included
  • Axle housing flange: Large Chevy C10
  • Required axle/hub offset: 2.42 in; 61.47 mm

Fitment & Compatibility

For five-lug Chevrolet/GMC applications using the Large Chevy C10 rear flange and 2.42-inch axle offset. The complete table separates pickup, Suburban, Blazer, Jimmy and van applications by year and equipment; it does not override the five-lug and flange requirements. Verify the axle register, flange diameter and stud pattern using the drawing. Internal parking shoes are included; cables, clevis hardware and flexlines are separate. Universal cable routing may require modification. Select 14-, 16- or 18-inch flexlines to suit the actual installation. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

  • Rotors: 12.88 in; 327.15 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 48 curved
  • Hats: Aluminum; Black E-Coat; 1.540-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Stud specification: 1/2-inch wheel studs (hat clearance; verify existing axle studs)

Calipers and pads

  • Calipers: XRS4R; 4 pistons
  • Caliper finish: Black Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.12 / 1.12 in

Installation documents
