Product details

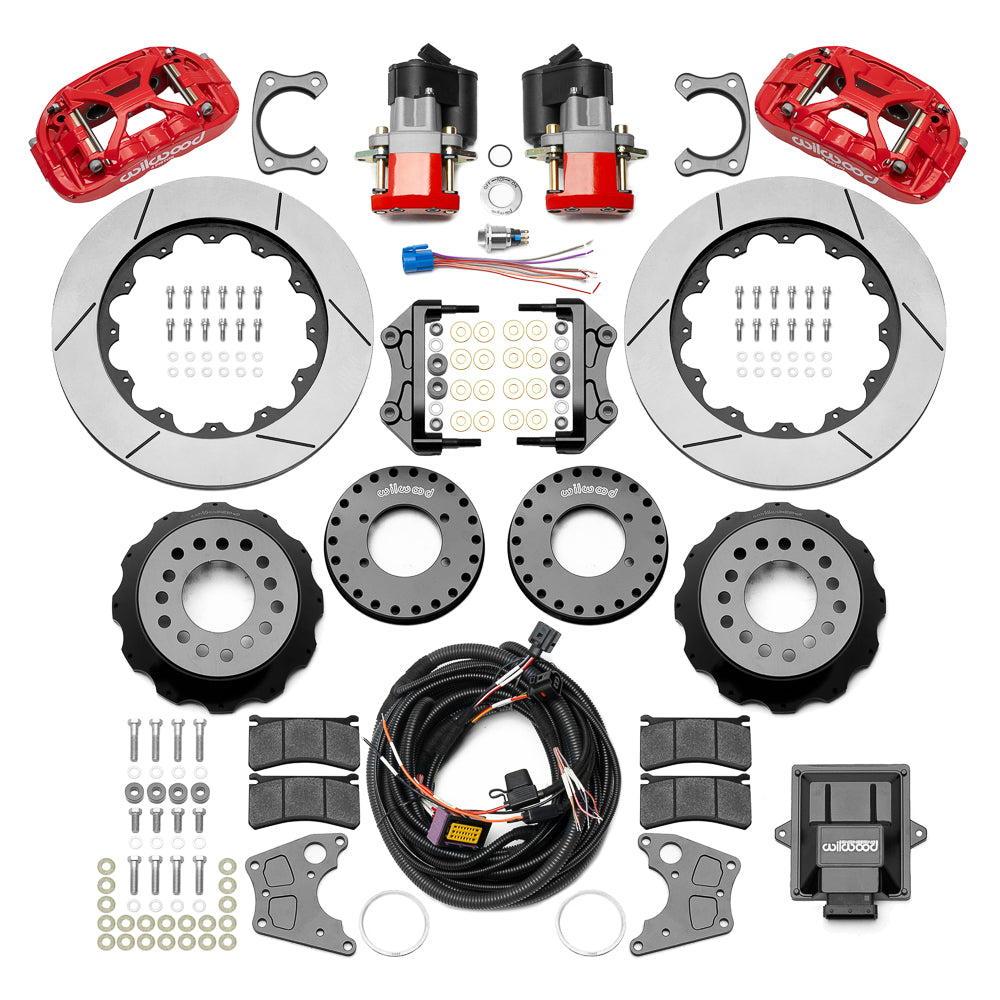

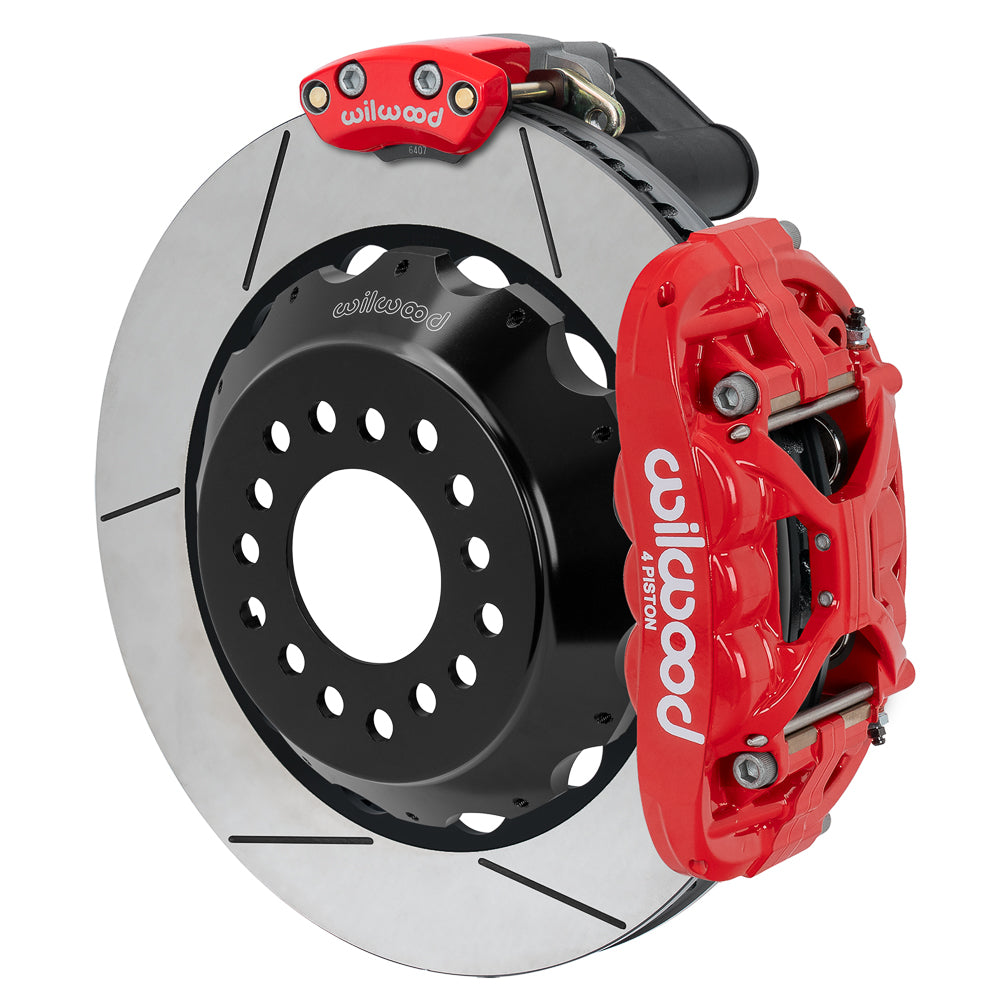

The red GT version of the 14-inch Big Ford package supplies XRS4R service calipers and independent electric parking calipers. Its 72-vane rotors use aluminum hats, and the included switch and harness control the parking function without altering the hydraulic brake circuit. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
Calipers and pads
- Calipers: XRS4R; 4 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Kit contents and separate parts
- Manufacturer part number: 140-18296-R
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
- Axle housing flange: Big Ford New Style
- Required axle/hub offset: 2.50 in; 63.5 mm
- Electric parking calipers, switch with pigtail, universal harness and control unit: included
Installation documents
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 2.035-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Stud specification: 1/2-inch wheel studs (hat clearance; verify existing axle studs)
Fitment & Compatibility
Fit the 14-inch XRS4R/EPB assembly only after verifying the Big Ford New Style housing end and 2.50-inch axle offset. The worksheet establishes the required flange, register and bearing dimensions; the table's 1990 Lincoln Town Car listing is conditional on that hardware. Included electric parking calipers operate through the supplied switch, control unit and universal harness. They are a parking system and must not be used for a moving emergency stop. Hydraulic hoses are not included. Check clearance for both calipers, the larger rotor and the electrical connections. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help you review the application requirements before you assemble the system.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
