Big Ford New Style 2.50-inch Offset — Rear Disc and Parking GT Slotted Brake Conversion with Red Wilwood XRS4R, 14.00-inch

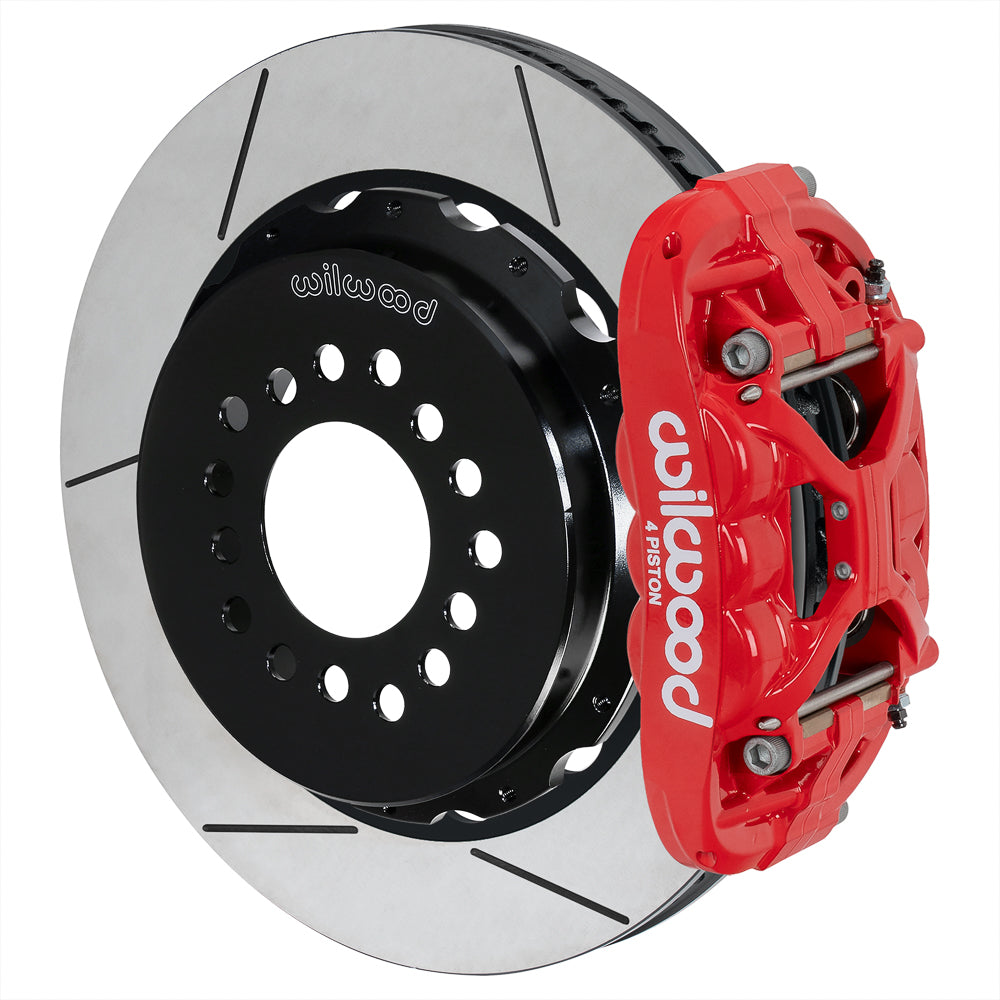

For a Big Ford New Style axle at 2.50-inch offset, this kit supplies red calipers and slotted 14-inch discs. The 72-vane rotor construction and 1.10-inch thickness define the friction assembly, with mechanical parking shoes housed within the separate hats. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.

Fitment & Compatibility

This 14-inch rear kit is selected by the Big Ford New Style housing end and its 2.50-inch axle offset. Check the worksheet against the axle register, bearing and flange dimensions before checking wheel clearance around the larger rotor. A vehicle listing, including the 1990 Lincoln Town Car with rear drums, does not substitute for these axle measurements. Internal parking shoes are supplied inside the hats. Complete their connection with separately selected cables, attachment hardware and any needed adapters; brake flexlines are also separate. Consult the fitment table below for the individual year, model and equipment details. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Technical Details

Calipers and pads

• Calipers: XRS4R; 4 pistons
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.12 / 1.12 in

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: Aluminum; Black E-Coat; 1.540-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Stud specification: 1/2-inch wheel studs (hat clearance; verify existing axle studs)

Kit contents and separate parts

• Manufacturer part number: 140-18294-R

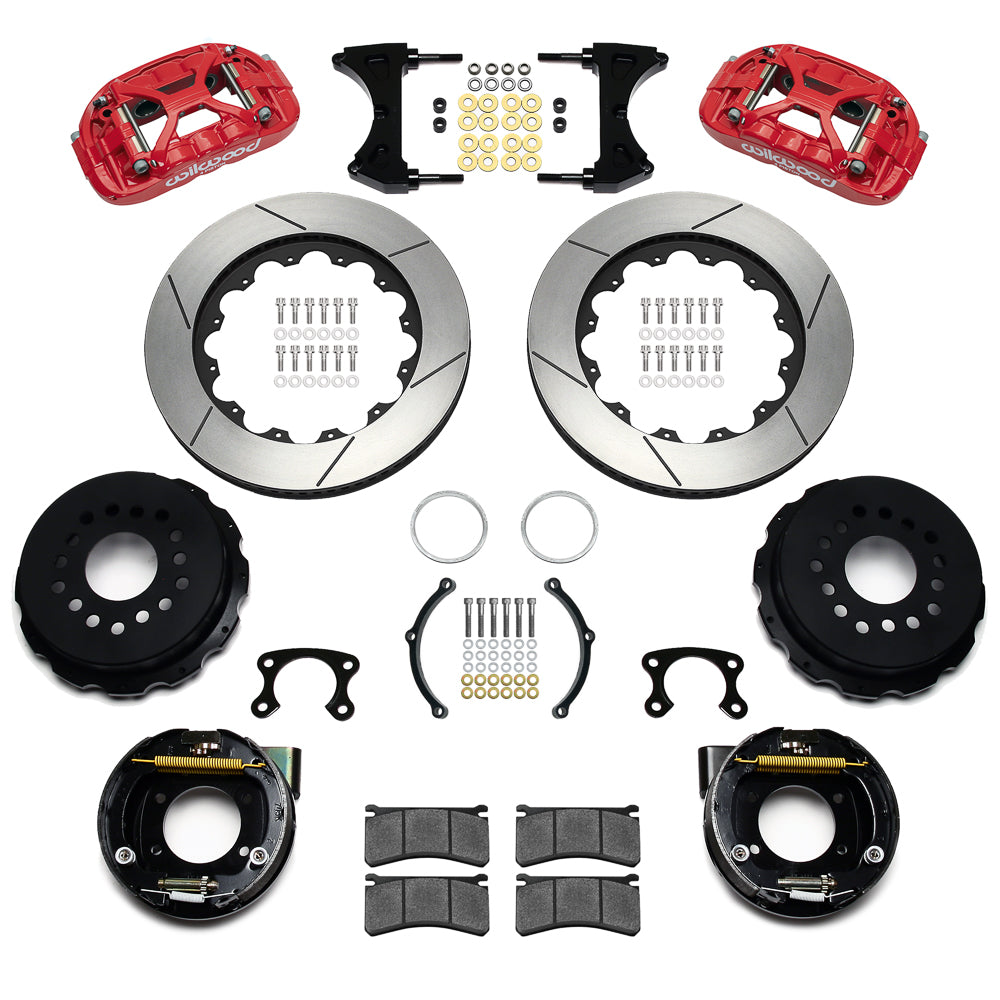

• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Axle housing flange: Big Ford New Style
• Required axle/hub offset: 2.50 in; 63.5 mm

Installation documents

• Installation instructions
• Technical bulletin

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience in brake systems and restoration, PMB Performance can help check the mounting arrangement, wheel clearance and remaining installation parts for your build.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
