Product details

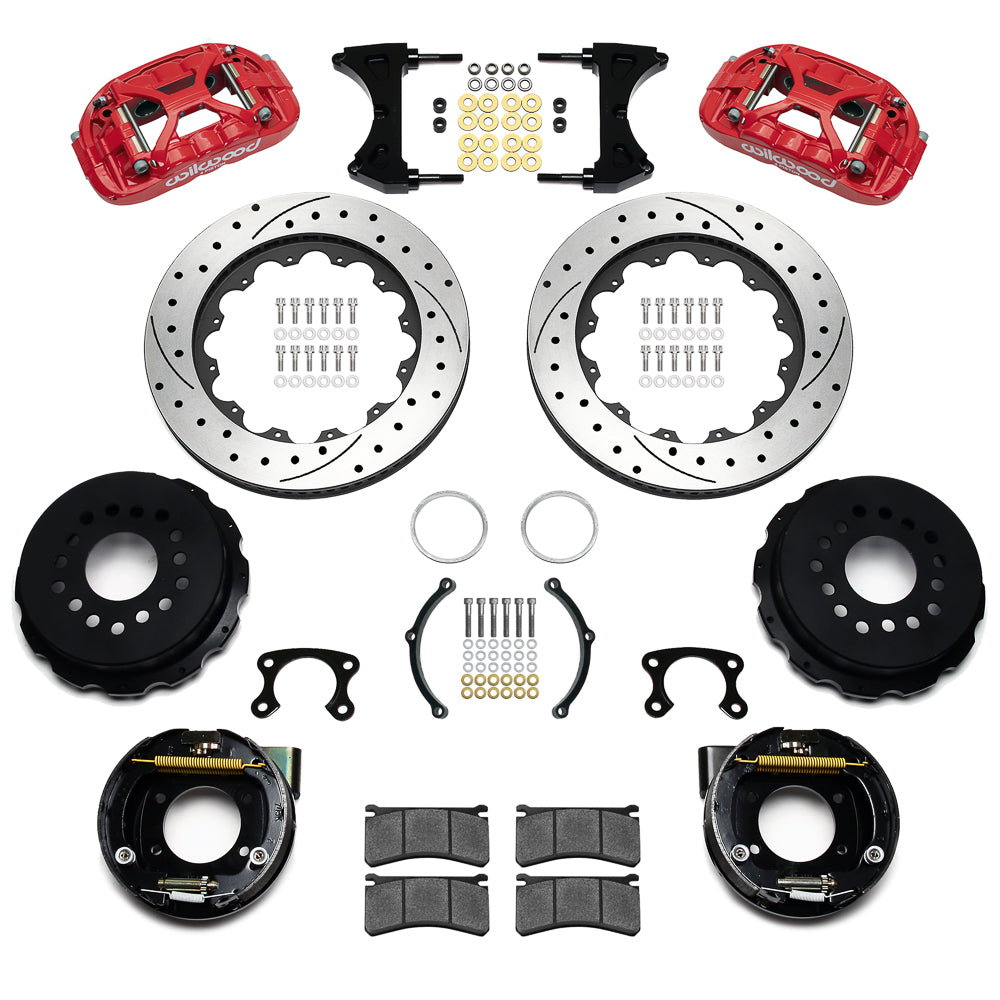

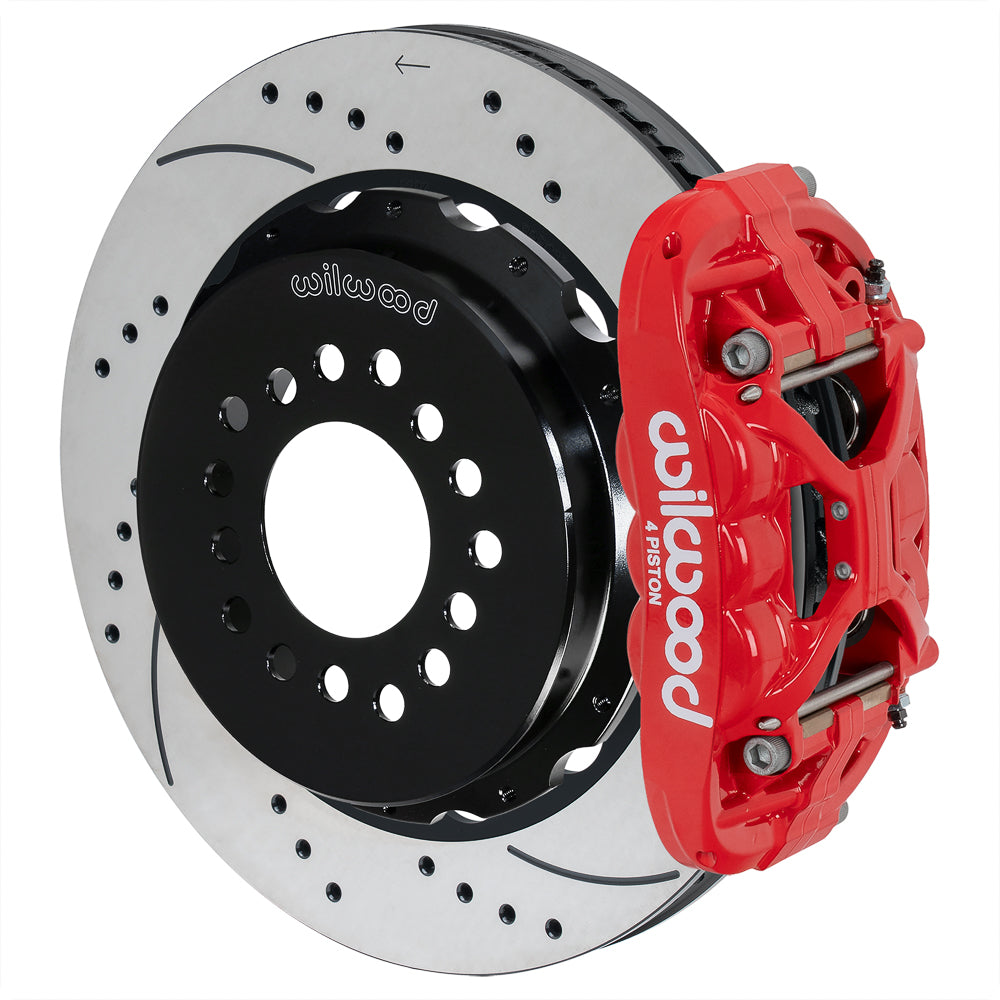

Red XRS4R calipers surround 14-inch SRP rotors in this Big Ford rear kit. The two-piece disc assemblies include parking-brake hats and internal shoes; BP-10 pads and the caliper mounting hardware are supplied for the hydraulic brake installation. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.10 in; 27.94 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 1.540-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Stud specification: 1/2-inch wheel studs (hat clearance; verify existing axle studs)
Calipers and pads
- Calipers: XRS4R; 4 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Kit contents and separate parts
- Manufacturer part number: 140-18294-DR
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
- Axle housing flange: Big Ford New Style
- Required axle/hub offset: 2.50 in; 63.5 mm
Fitment & Compatibility
This 14-inch rear kit is selected by the Big Ford New Style housing end and its 2.50-inch axle offset. Check the worksheet against the axle register, bearing and flange dimensions before checking wheel clearance around the larger rotor. A vehicle listing, including the 1990 Lincoln Town Car with rear drums, does not substitute for these axle measurements. Internal parking shoes are supplied inside the hats. Complete their connection with separately selected cables, attachment hardware and any needed adapters; brake flexlines are also separate. Consult the fitment table below for the individual year, model and equipment details. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1 |
Application Notes
- Line kit included (manufacturer): None
