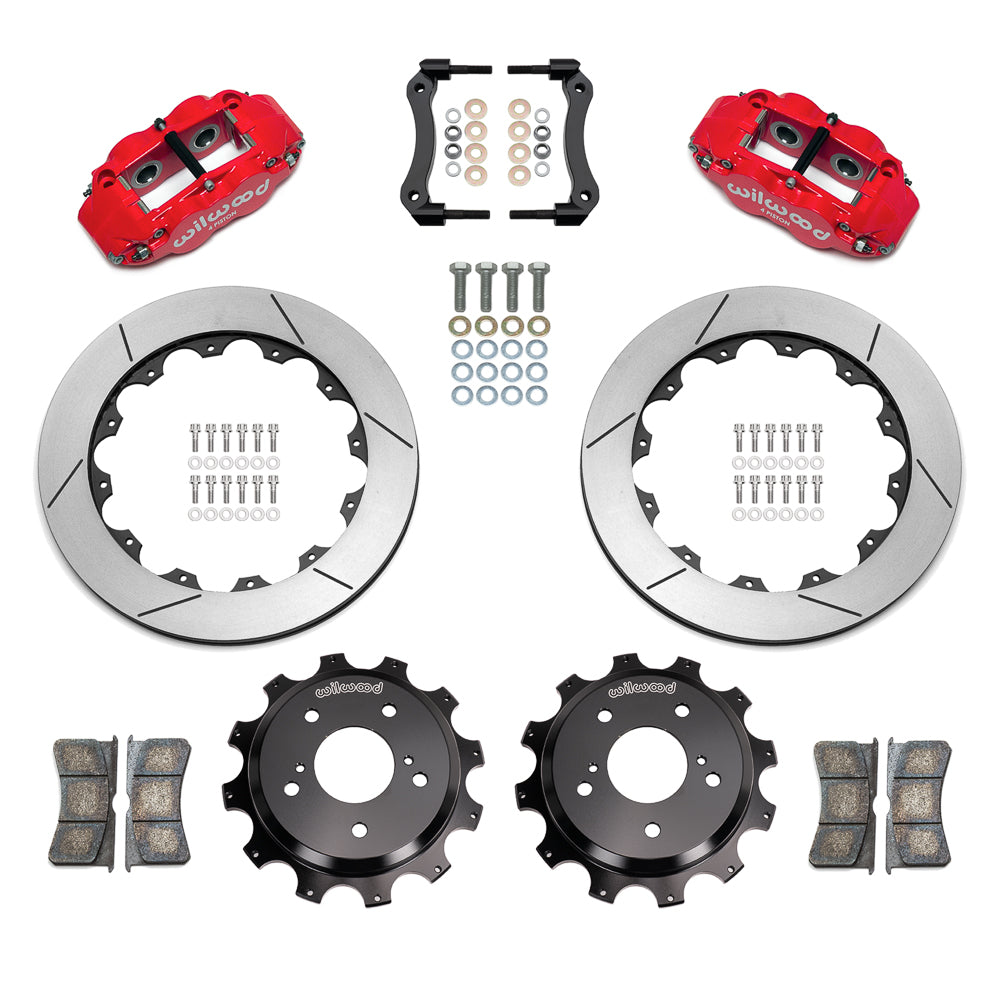

Wilwood red FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch slotted rotors and components laid out

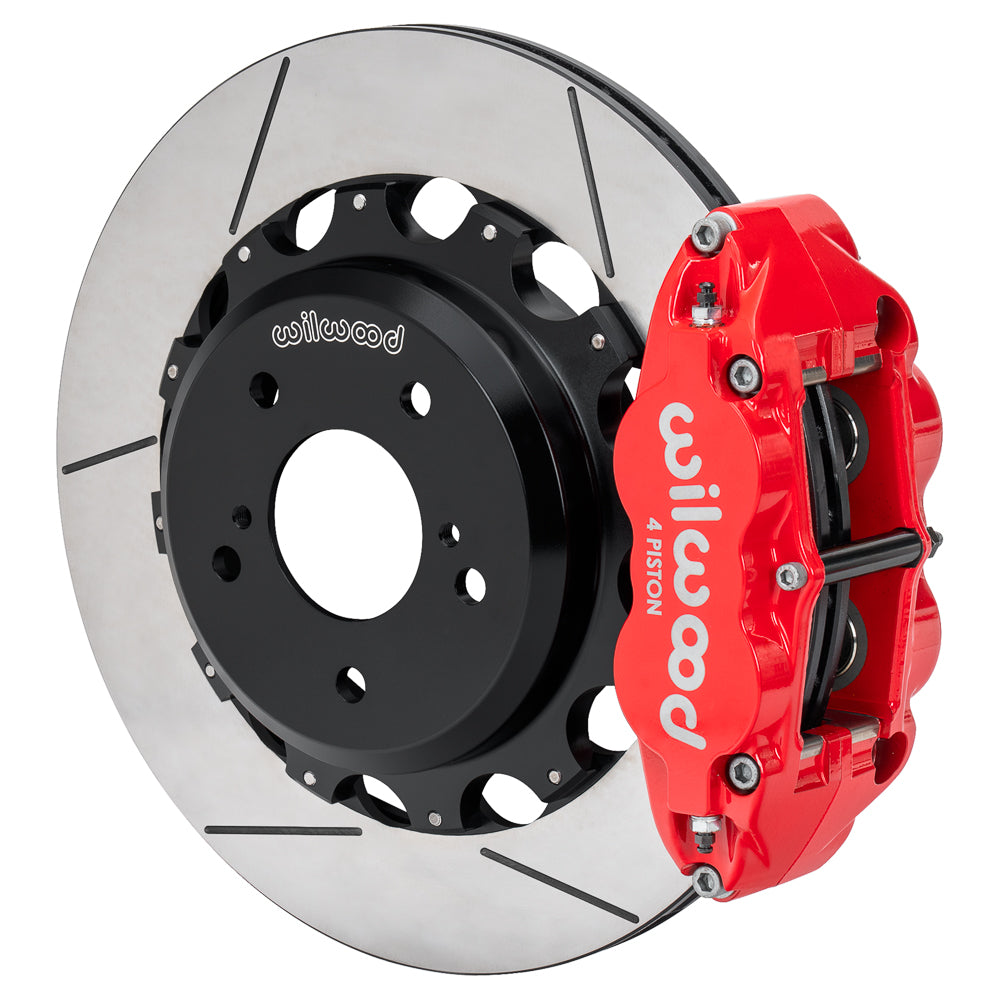

Wilwood red FNSL4R rear caliper with 13.50-inch slotted rotor, assembled brake view for Nissan Skyline / 300ZX
Wilwood red FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch slotted rotors and components laid out
Wilwood red FNSL4R rear caliper with 13.50-inch slotted rotor, assembled brake view for Nissan Skyline / 300ZX

Wilwood Red FNSL4R Rear Conversion — 13.50-inch GT Slotted Rotors for Nissan Skyline (1989–2002) and 300ZX (1990–1996)

SKU: 140-18274-R

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red four-piston Superlite calipers and BP-20 pads define the GT version of this Nissan rear brake package. The 13.50-inch slotted discs sit on hats designed around the factory parking shoes, requiring the original parking mechanism to be present and serviceable. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

Calipers and pads

  • Calipers: FNSL4R; 4 pistons
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-20
  • Listed piston bore sizes: 1.12 / 1.12 in

Kit contents and separate parts

  • Manufacturer part number: 140-18274-R
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included

Installation documents

Rotors and mounting dimensions

  • Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
  • Friction faces: GT Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 36 straight
  • Hats: Aluminum; Black E-Coat; 1.390-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm

Fitment & Compatibility

For 1989–2002 Nissan Skyline and 1990–1996 Nissan 300ZX rear hubs with the original internal-shoe parking brake. The kit retains that parking-brake mechanism; it does not add separate MC4 calipers. Check the 300ZX trim in the application table and verify the five-lug hub. The dust shield needs trimming. Flexlines are separate, and Wilwood's installation guide and kit listing give different Skyline line-kit references; confirm the correct hose and fittings for the vehicle before ordering. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help you review the application requirements before you assemble the system.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Rear line-kit reference: 220-18269, 220-15806
