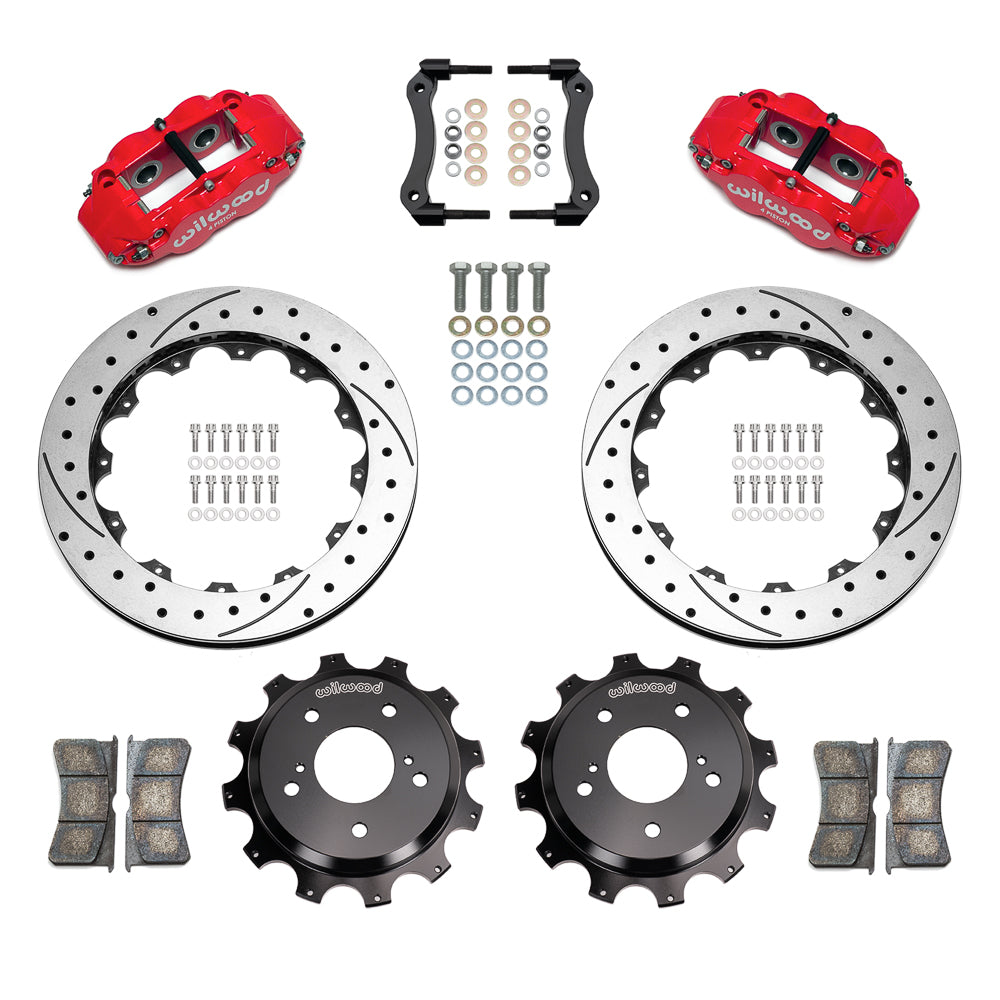

Wilwood red FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch drilled and slotted rotors and components laid out

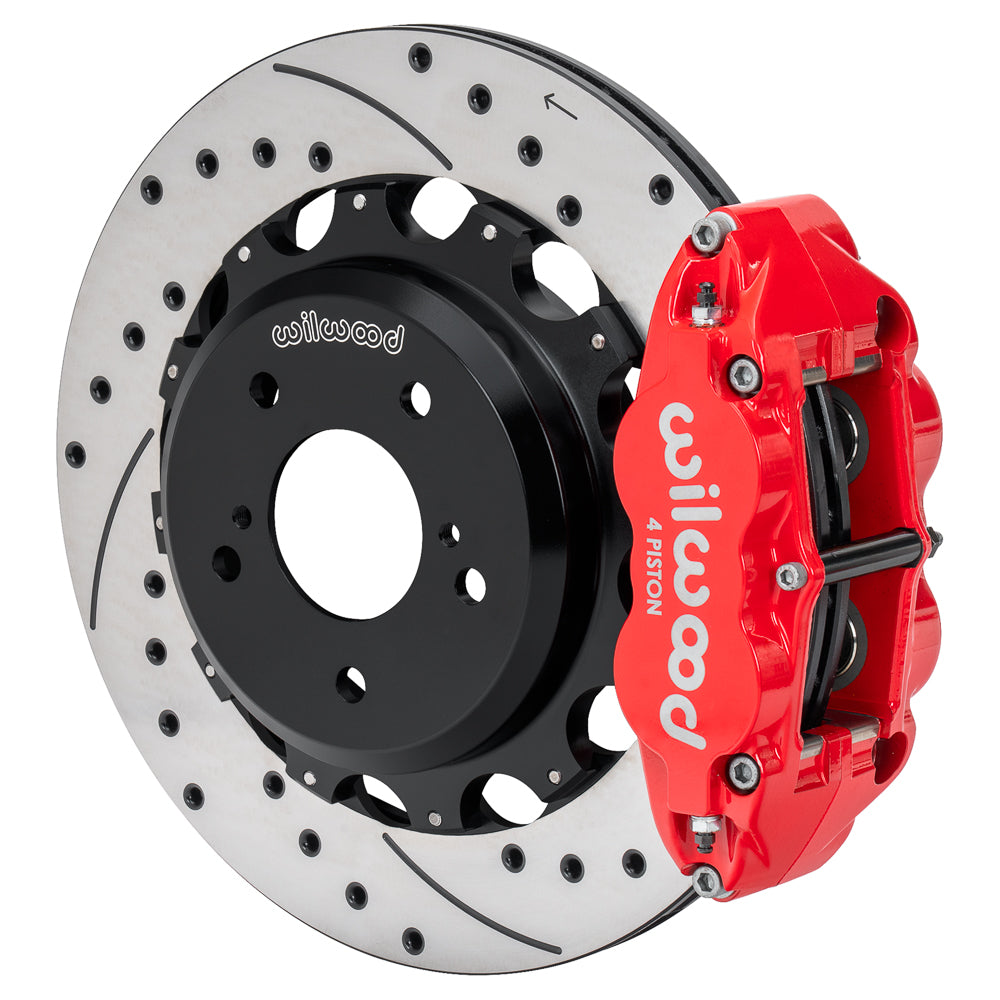

Wilwood red FNSL4R rear caliper with 13.50-inch drilled and slotted rotor, assembled brake view for Nissan Skyline / 300ZX
Wilwood red FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch drilled and slotted rotors and components laid out
Wilwood red FNSL4R rear caliper with 13.50-inch drilled and slotted rotor, assembled brake view for Nissan Skyline / 300ZX

Wilwood FNSL4R Rear Brake Kit for Nissan Skyline (1989–2002) and 300ZX (1990–1996) — 13.50-inch Drilled/Slotted, Red

SKU: 140-18274-DR

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red FNSL4R/SRP combination equips the specified Skyline and 300ZX rear hubs with 13.50 x 0.81-inch vented discs. Its aluminum parking-brake hats preserve the factory mechanical parking function, while BP-10 pads serve the four-piston hydraulic calipers. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

Kit contents and separate parts

  • Manufacturer part number: 140-18274-DR
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included

Fitment & Compatibility

For 1989–2002 Nissan Skyline and 1990–1996 Nissan 300ZX rear hubs with the original internal-shoe parking brake. The kit retains that parking-brake mechanism; it does not add separate MC4 calipers. Check the 300ZX trim in the application table and verify the five-lug hub. The dust shield needs trimming. Flexlines are separate, and Wilwood's installation guide and kit listing give different Skyline line-kit references; confirm the correct hose and fittings for the vehicle before ordering. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

  • Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 36 straight
  • Hats: Aluminum; Black E-Coat; 1.390-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

  • Calipers: FNSL4R; 4 pistons
  • Caliper finish: Red Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.12 / 1.12 in

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Rear line-kit reference: 220-18269, 220-15806
