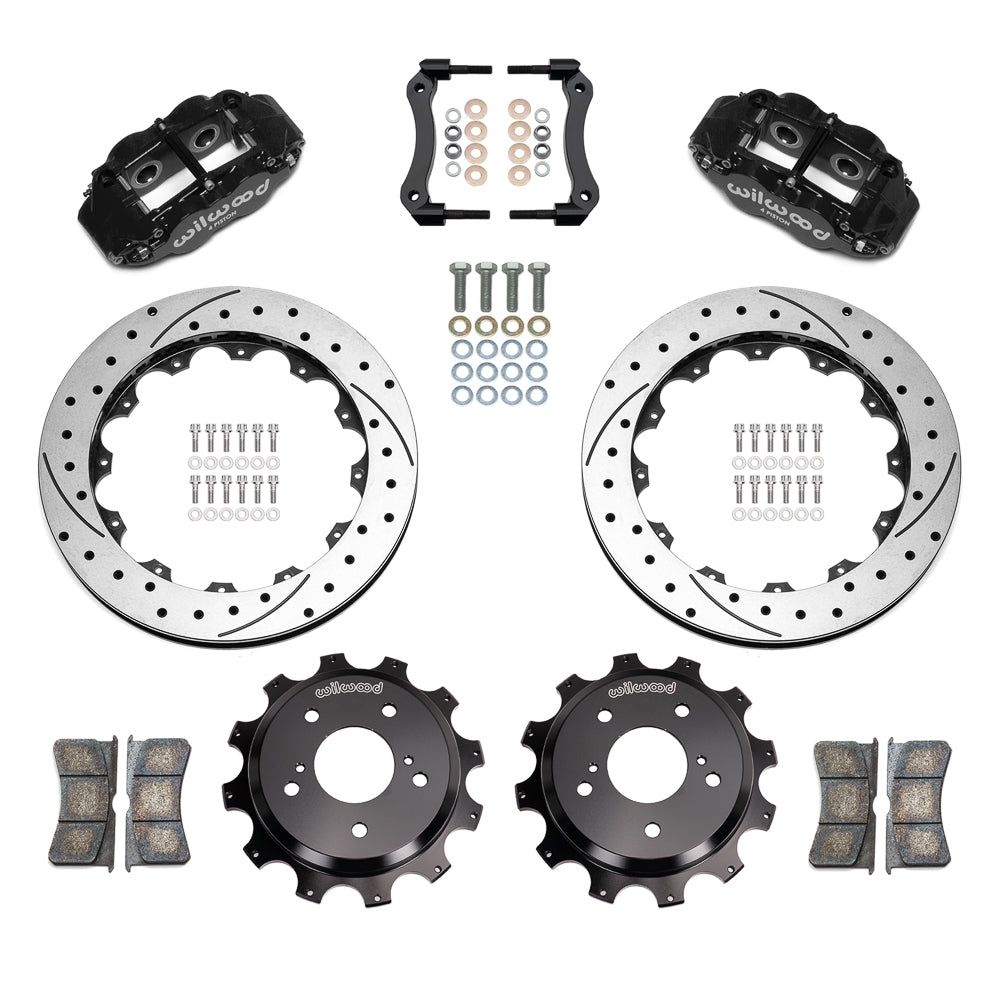

Wilwood black FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch drilled and slotted rotors and components laid out

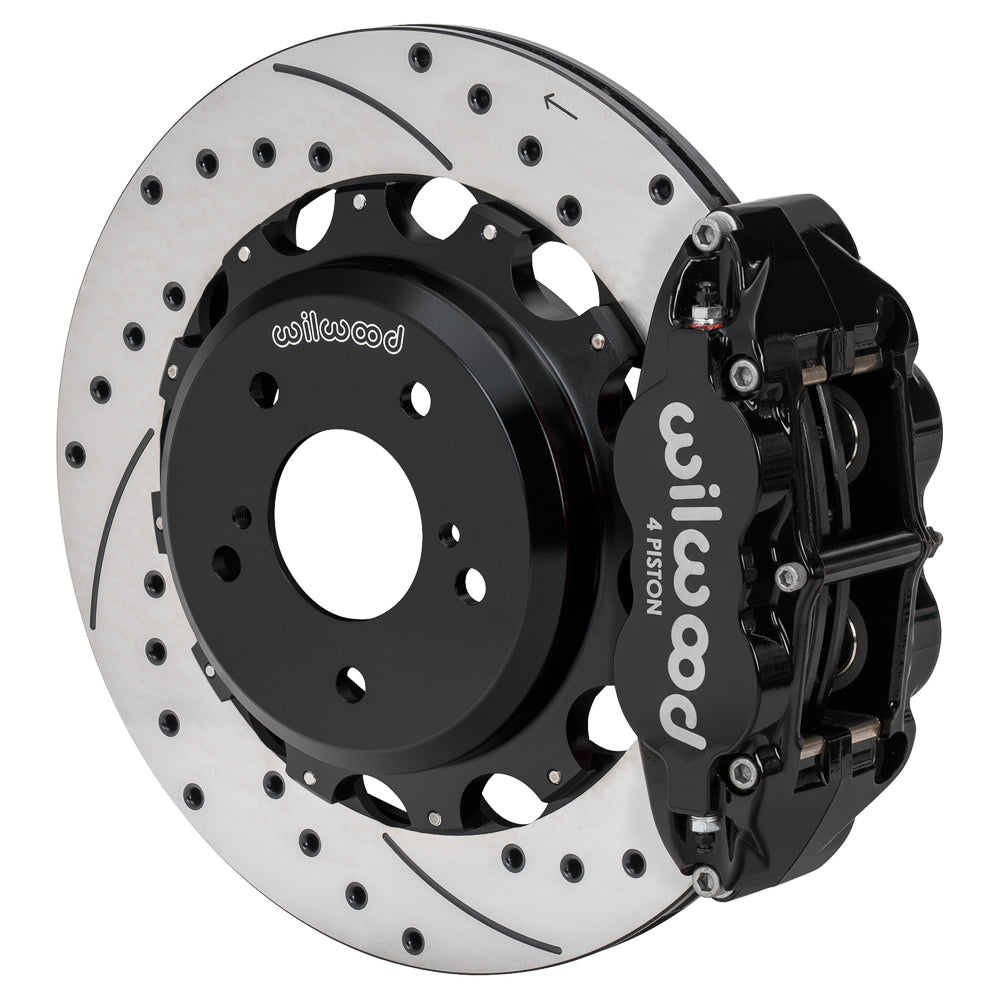

Wilwood black FNSL4R rear caliper with 13.50-inch drilled and slotted rotor, assembled brake view for Nissan Skyline / 300ZX
Wilwood black FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch drilled and slotted rotors and components laid out
Wilwood black FNSL4R rear caliper with 13.50-inch drilled and slotted rotor, assembled brake view for Nissan Skyline / 300ZX

Wilwood 13.50-inch Drilled/Slotted Brake Kit — Black FNSL4R for Nissan Skyline (1989–2002) and 300ZX (1990–1996), Rear

SKU: 140-18274-D

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Drilled and slotted 13.50-inch rotors pair with black Superlite 4R calipers in this Nissan rear kit. BP-10 pads are supplied, and the hats work with the original internal parking shoes rather than replacing them with a second caliper. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.

Fitment & Compatibility

For 1989–2002 Nissan Skyline and 1990–1996 Nissan 300ZX rear hubs with the original internal-shoe parking brake. The kit retains that parking-brake mechanism; it does not add separate MC4 calipers. Check the 300ZX trim in the application table and verify the five-lug hub. The dust shield needs trimming. Flexlines are separate, and Wilwood's installation guide and kit listing give different Skyline line-kit references; confirm the correct hose and fittings for the vehicle before ordering. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Technical Details

Calipers and pads

  • Calipers: FNSL4R; 4 pistons
  • Caliper finish: Black Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-10
  • Listed piston bore sizes: 1.12 / 1.12 in

Rotors and mounting dimensions

  • Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
  • Friction faces: SRP Drilled & Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 36 straight
  • Hats: Aluminum; Black E-Coat; 1.390-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm

Kit contents and separate parts

  • Manufacturer part number: 140-18274-D
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience in brake systems and restoration, PMB Performance can help check the mounting arrangement, wheel clearance and remaining installation parts for your build.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Rear line-kit reference: 220-18269, 220-15806
