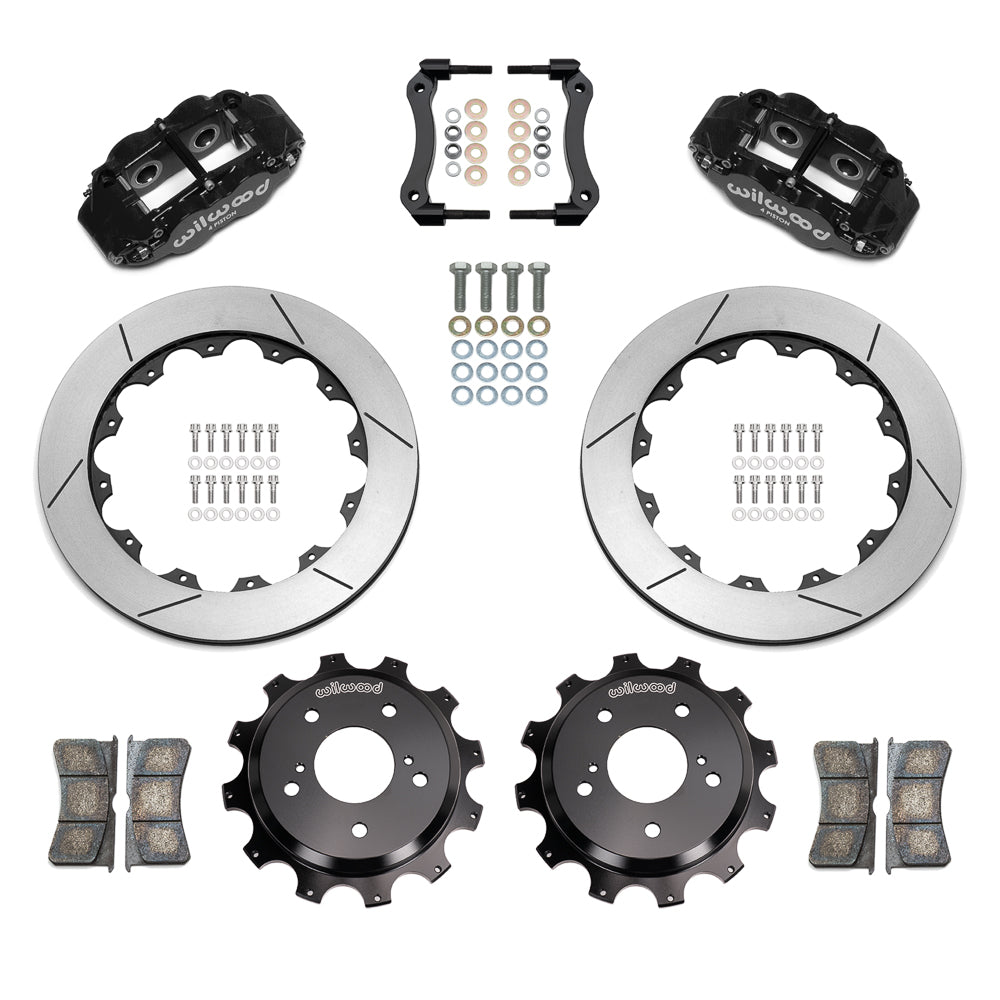

Wilwood black FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch slotted rotors and components laid out

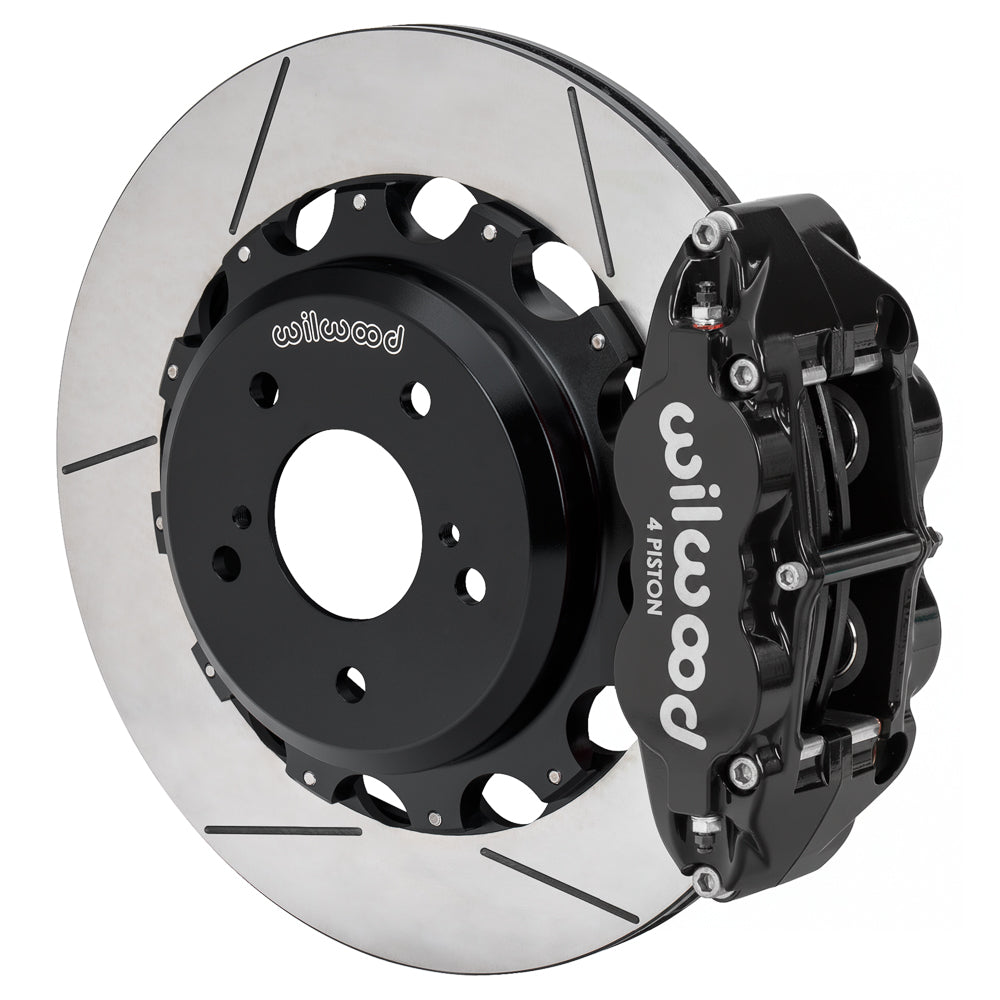

Wilwood black FNSL4R rear caliper with 13.50-inch slotted rotor, assembled brake view for Nissan Skyline / 300ZX
Wilwood black FNSL4R rear brake kit for Nissan Skyline / 300ZX, 13.50-inch slotted rotors and components laid out
Wilwood black FNSL4R rear caliper with 13.50-inch slotted rotor, assembled brake view for Nissan Skyline / 300ZX

Wilwood GT Slotted 13.50-inch Rotors with Black FNSL4R — Nissan Skyline (1989–2002) and 300ZX (1990–1996) Rear Kit

SKU: 140-18274

$2,216.93 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This black FNSL4R rear package keeps the Nissan Skyline and 300ZX original internal-shoe parking mechanism. BP-20 pads and 13.50-inch GT discs handle service braking, with parking-brake hats integrating the rotor assemblies around the retained mechanism. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.

Technical Details

Rotors and mounting dimensions

  • Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
  • Friction faces: GT Slotted
  • Rotor coating/finish: Black Electro Coat
  • Internal vanes: 36 straight
  • Hats: Aluminum; Black E-Coat; 1.390-inch hat offset
  • Rotor/hat wheel-stud clearance patterns: 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

  • Calipers: FNSL4R; 4 pistons
  • Caliper finish: Black Powder Coat
  • Body construction: Forged aluminum
  • Pistons: stainless
  • Mounting: radial
  • Hydraulic inlet: 1/8-27 NPT
  • Included pad compound: BP-20
  • Listed piston bore sizes: 1.12 / 1.12 in

Kit contents and separate parts

  • Manufacturer part number: 140-18274
  • Supply: one brake kit; components for both sides of the axle
  • Mounting hardware: included
  • Hubs: not included
  • Spindles, master cylinder and brake booster: not included
  • Brake flexlines: not included

Fitment & Compatibility

For 1989–2002 Nissan Skyline and 1990–1996 Nissan 300ZX rear hubs with the original internal-shoe parking brake. The kit retains that parking-brake mechanism; it does not add separate MC4 calipers. Check the 300ZX trim in the application table and verify the five-lug hub. The dust shield needs trimming. Flexlines are separate, and Wilwood's installation guide and kit listing give different Skyline line-kit references; confirm the correct hose and fittings for the vehicle before ordering. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Installation documents

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.

Vehicle Applications

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX 2+2 2+2 Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Base Base Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2
1990-1996 Nissan 300ZX Turbo Turbo Disc Disc Rear Kit 1, 2

Application Notes

  1. Line kit included (manufacturer): None
  2. Rear line-kit reference: 220-18269, 220-15806
