Product details

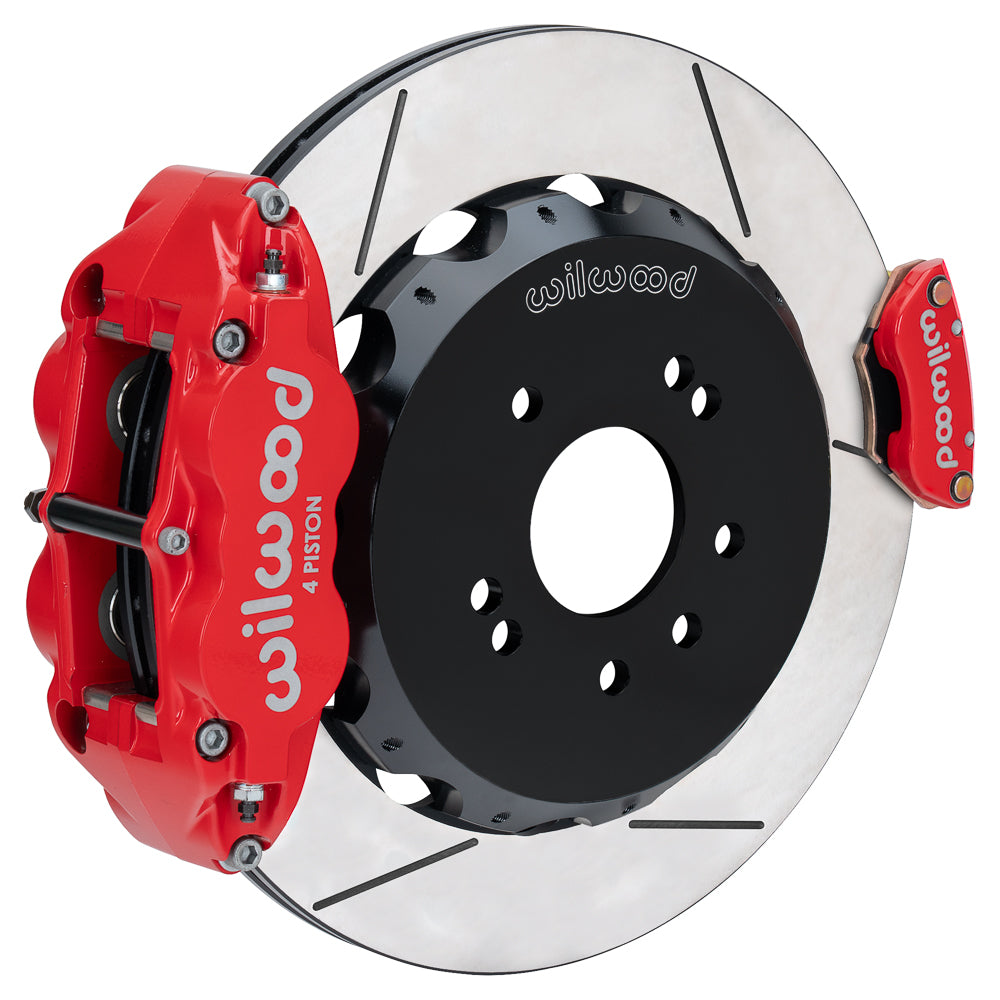

GT slotted rear discs and red calipers distinguish this 1989–1998 240SX package. The four-piston hydraulic calipers operate independently of the MC4 parking units, so both hydraulic hose routing and the mechanical cable installation must be addressed during assembly. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.
Technical Details

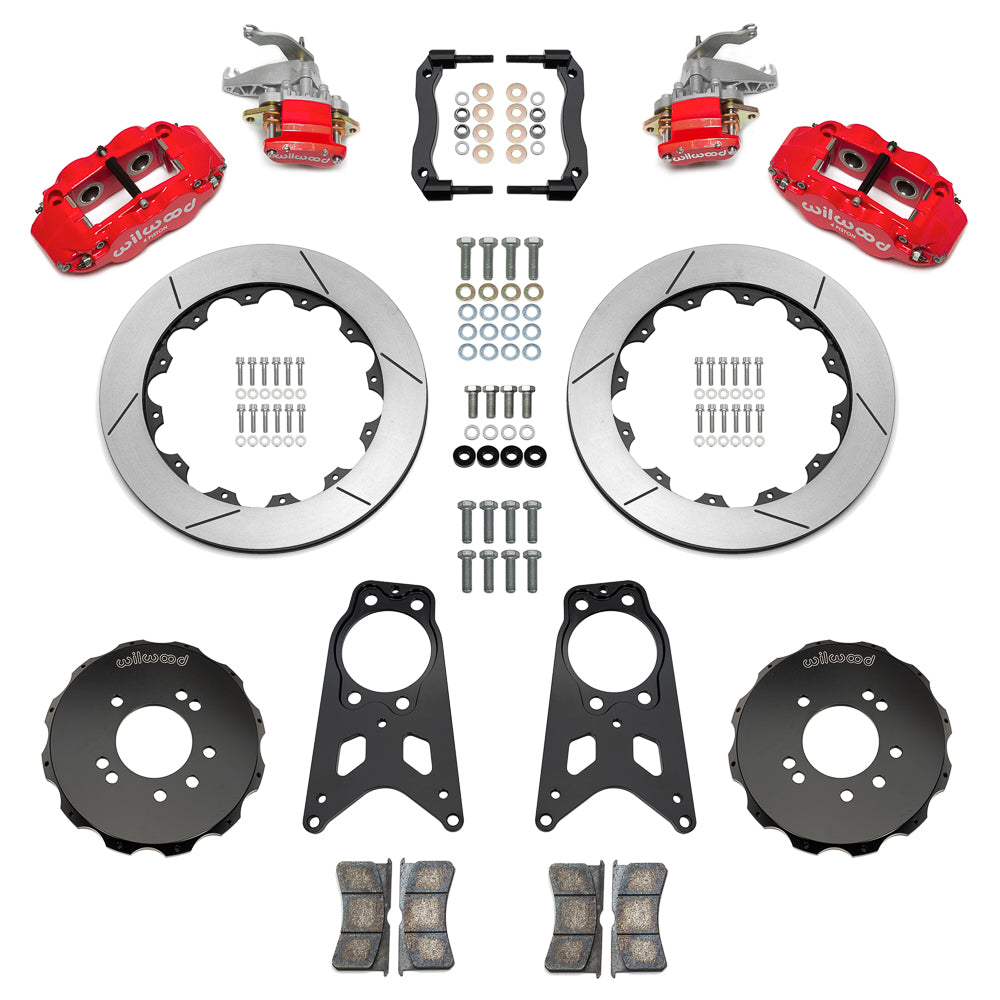

Kit contents and separate parts
- Manufacturer part number: 140-18271-R
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
- Related installation parts to select for the application: 330-18324; 330-18325
Fitment & Compatibility
Fits the 1989–1998 Nissan 240SX rear applications in the table, with the listed four- or five-lug and ABS configurations. Separate MC4 calipers provide the mechanical parking brake. The included rear flexline kit is 220-18269, 12 inches long. Factory parking-brake cables do not connect to the MC4: order cable kit 330-18324 for 1989–1994 or 330-18325 for 1995–1998 separately. Match the hub register, and follow the caliper and cable-adjustment instructions. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Rotors and mounting dimensions
- Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 36 straight
- Hats: Aluminum; Black E-Coat; 0.925-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Calipers and pads
- Service calipers: FNSL4R; four pistons each. Separate MC4 calipers operate the parking brake
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Installation documents
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1989-1993 | Nissan | 240SX | w/ Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1989-1993 | Nissan | 240SX | w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1998 | Nissan | 240SX | 4 Lug w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1995 | Nissan | 240SX | 5 Lug w/ Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1998 | Nissan | 240SX | 5 Lug w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1996-1998 | Nissan | 240SX | SE Models 5 Lug w/Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): 220-18269 (12.00 in)
- Rear line-kit reference: 220-18269
