Product details

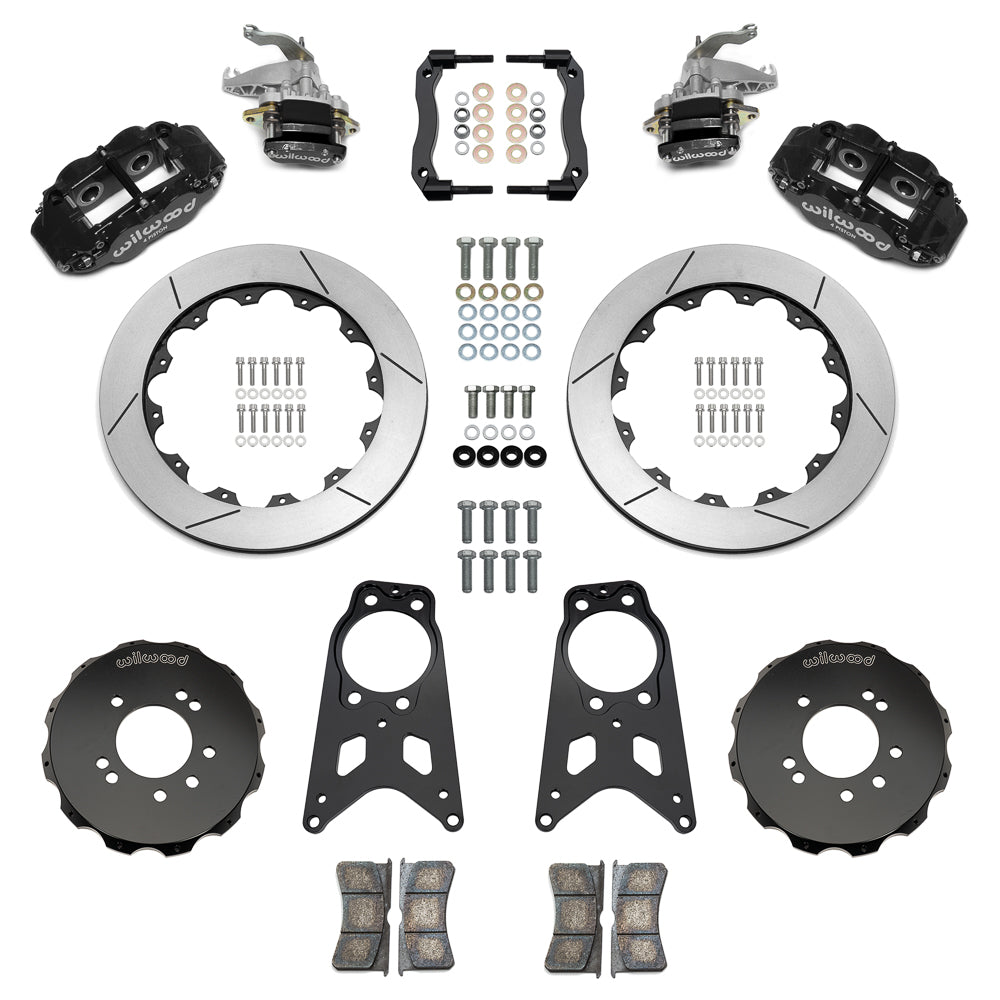

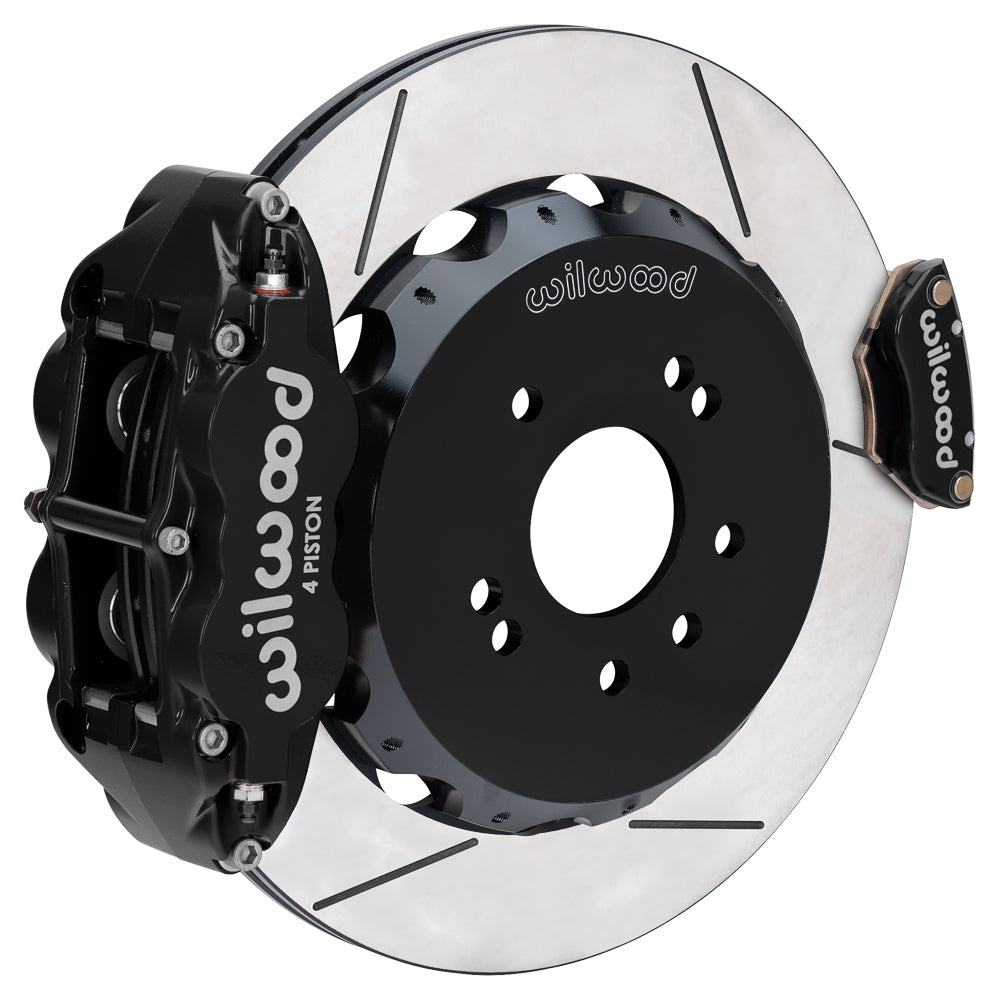

The black FNSL4R/MC4 package separates the 240SX's hydraulic braking from mechanical parking-brake actuation. Four-piston service calipers, BP-10 pads and 13.50-inch GT discs are supplied with dedicated MC4 parking calipers and 12-inch rear flexlines. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
Calipers and pads
- Service calipers: FNSL4R; four pistons each. Separate MC4 calipers operate the parking brake
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.12 / 1.12 in
Kit contents and separate parts
- Manufacturer part number: 140-18271
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
- Related installation parts to select for the application: 330-18324; 330-18325
Installation documents
Rotors and mounting dimensions
- Rotors: 13.50 in; 342.9 mm diameter x 0.81 in; 20.57 mm thick; vented Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 36 straight
- Hats: Aluminum; Black E-Coat; 0.925-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Fitment & Compatibility
Fits the 1989–1998 Nissan 240SX rear applications in the table, with the listed four- or five-lug and ABS configurations. Separate MC4 calipers provide the mechanical parking brake. The included rear flexline kit is 220-18269, 12 inches long. Factory parking-brake cables do not connect to the MC4: order cable kit 330-18324 for 1989–1994 or 330-18325 for 1995–1998 separately. Match the hub register, and follow the caliper and cable-adjustment instructions. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help you review the application requirements before you assemble the system.
Vehicle Applications
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1989-1993 | Nissan | 240SX | w/ Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1989-1993 | Nissan | 240SX | w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1998 | Nissan | 240SX | 4 Lug w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1995 | Nissan | 240SX | 5 Lug w/ Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1994-1998 | Nissan | 240SX | 5 Lug w/o Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
| 1996-1998 | Nissan | 240SX | SE Models 5 Lug w/Antilock Brakes | Disc | Disc | Rear Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): 220-18269 (12.00 in)
- Rear line-kit reference: 220-18269
