Product details

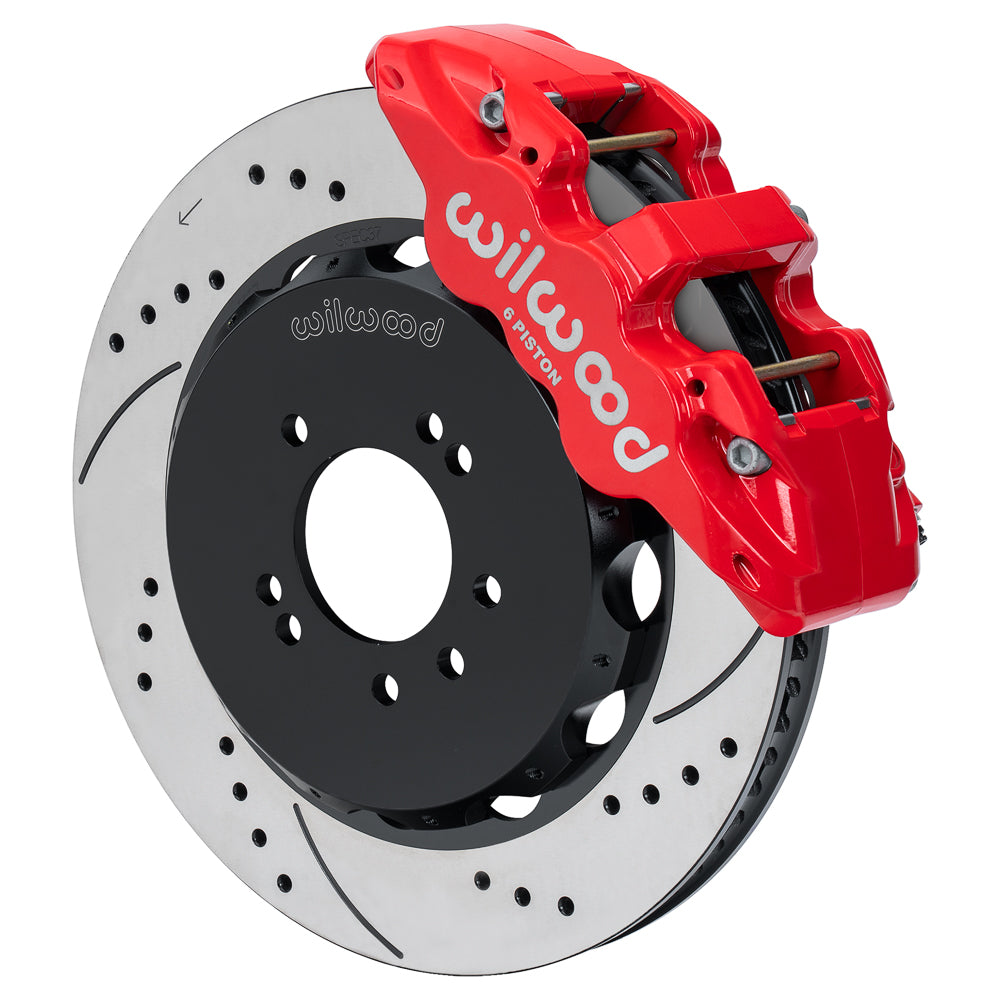

Red AERO6 calipers and 14.00 x 1.25-inch SRP discs give this Skyline R34 kit its specific hardware combination. The rotors use separate aluminum hats on the original hubs, with installation brackets, register rings and braided hydraulic lines included. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.
Technical Details
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

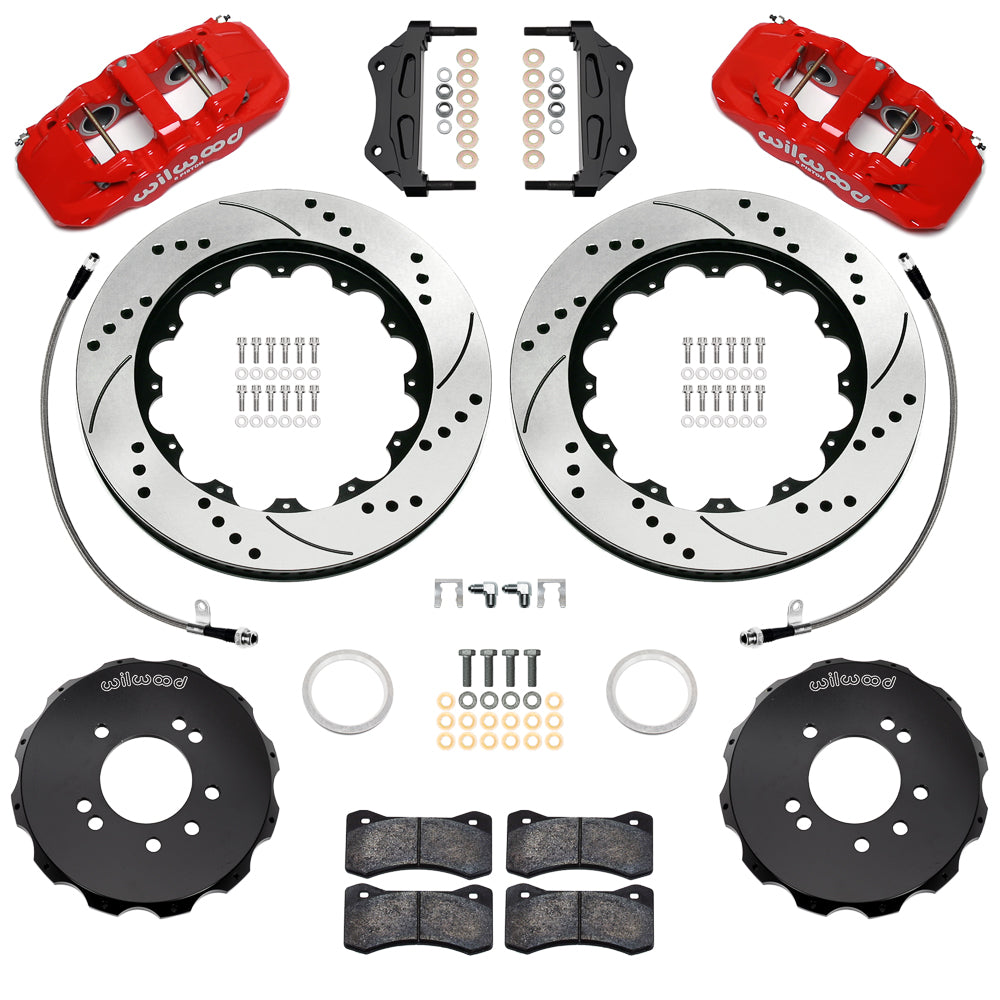

Kit contents and separate parts
- Manufacturer part number: 140-18260-DR
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Fitment & Compatibility
The R34 AERO6 installation applies to the listed 1999–2002 Nissan Skyline front disc assemblies. Retained hubs carry the 14-inch rotor-and-hat assemblies, while the supplied radial brackets locate the AERO6 calipers. Confirm the hat register and stud fit before checking wheel spoke clearance; do not select solely by wheel diameter. The included braided flexlines must remain free of contact and tension throughout wheel movement. Installation also requires the dust-shield trimming and caliper-centering checks specified in the linked guide. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
