Product details

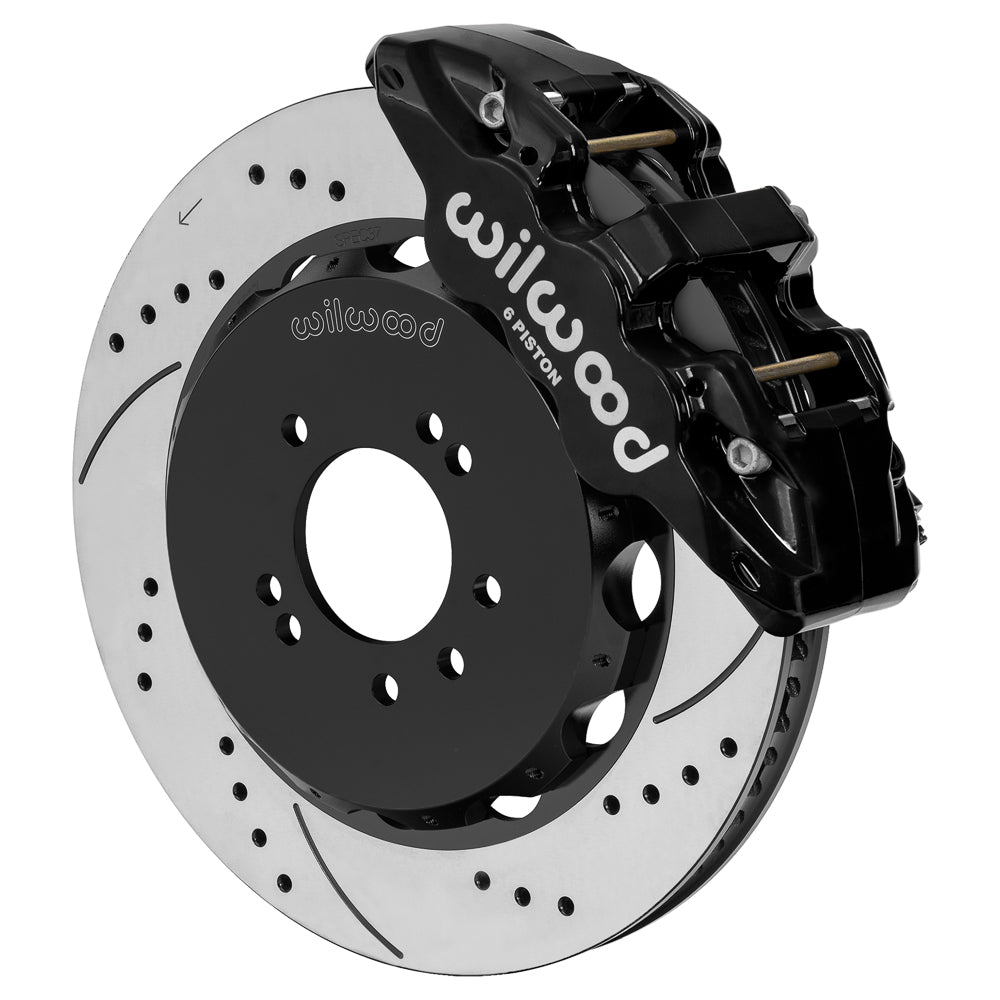

AERO6 calipers with black powder coating are combined with SRP rotors in this 14-inch R34 front package. The forged six-piston bodies provide 4.04 square inches of effective piston area, and BP-10 pads are supplied for the drilled/slotted configuration. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

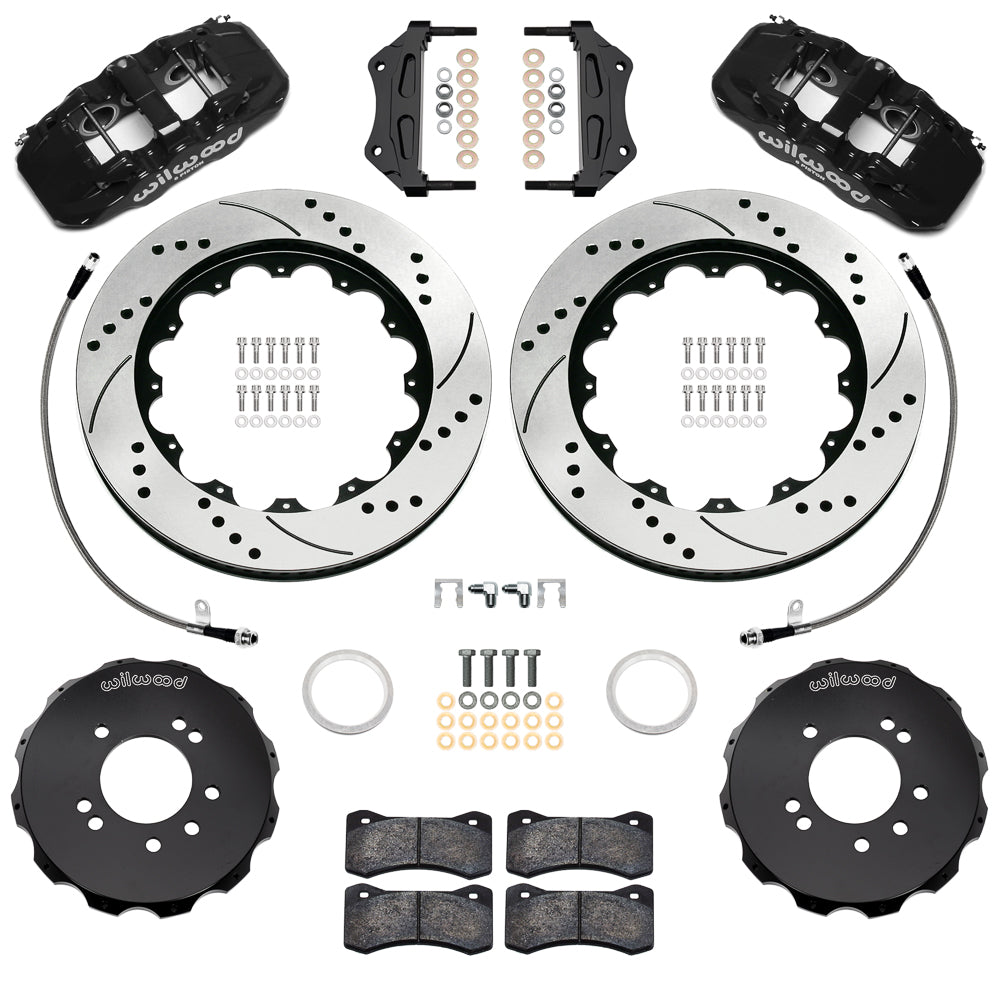

Kit contents and separate parts
- Manufacturer part number: 140-18260-D
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Installation documents
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Fitment & Compatibility
The R34 AERO6 installation applies to the listed 1999–2002 Nissan Skyline front disc assemblies. Retained hubs carry the 14-inch rotor-and-hat assemblies, while the supplied radial brackets locate the AERO6 calipers. Confirm the hat register and stud fit before checking wheel spoke clearance; do not select solely by wheel diameter. The included braided flexlines must remain free of contact and tension throughout wheel movement. Installation also requires the dust-shield trimming and caliper-centering checks specified in the linked guide. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
