Product details

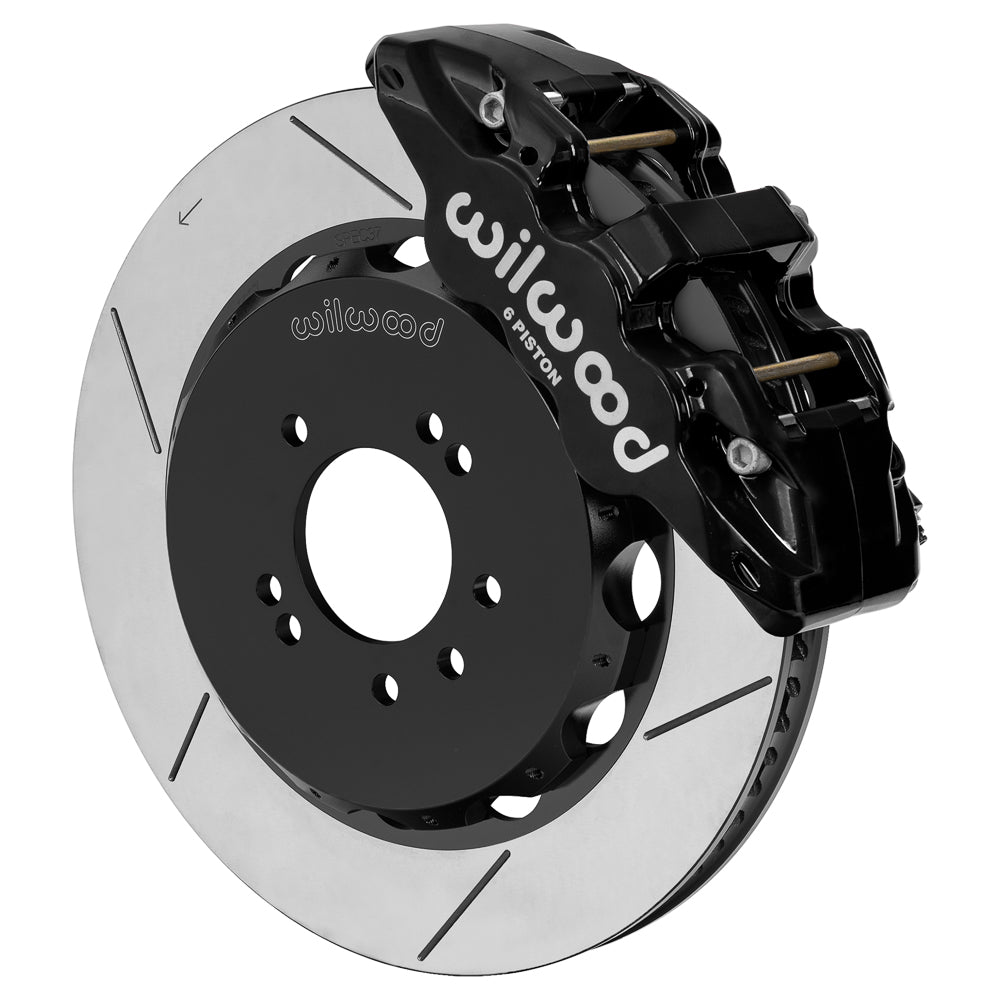

This black AERO6 front kit uses 14-inch GT discs and the 1.62/1.12/1.12-inch piston-bore configuration for the Skyline R34 application. Its BP-20 pad set, aluminum hats and braided hoses accompany the radial-mount calipers and vented Spec-37 rotors. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.
Technical Details

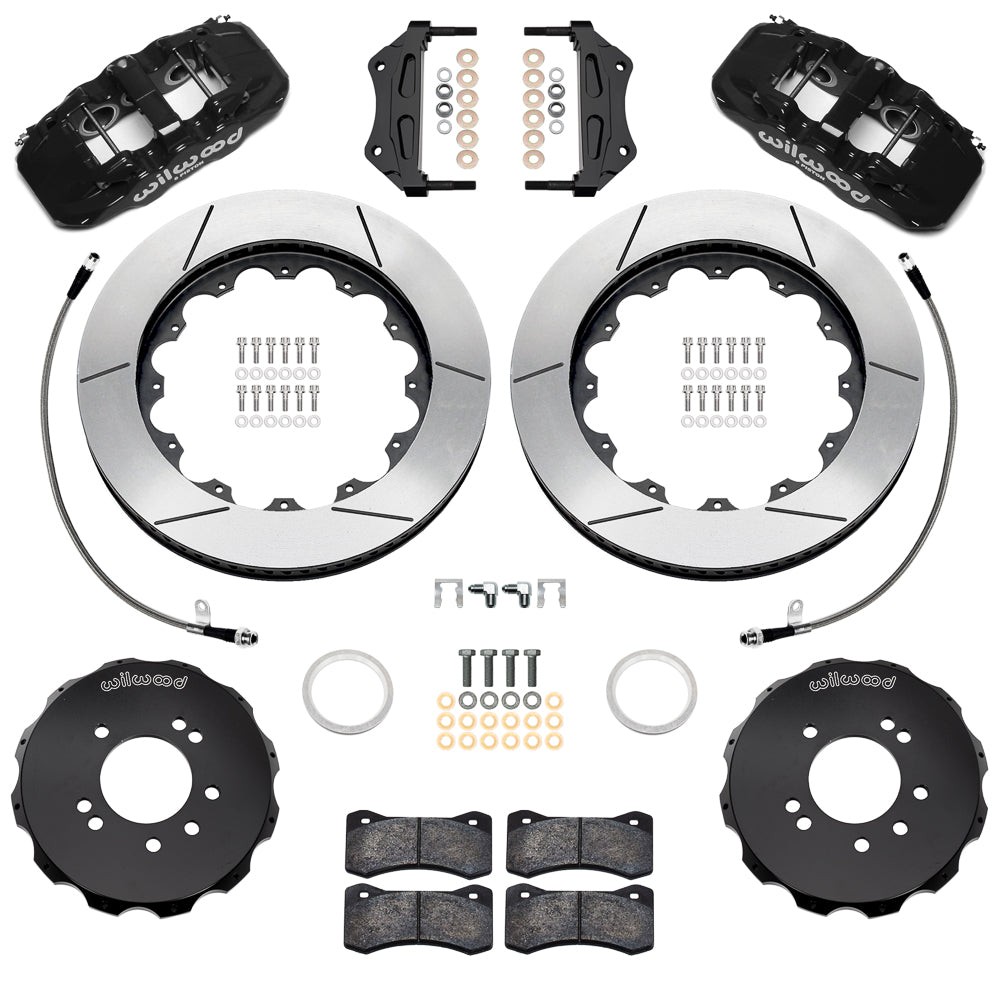

Kit contents and separate parts
- Manufacturer part number: 140-18260
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Fitment & Compatibility
The R34 AERO6 installation applies to the listed 1999–2002 Nissan Skyline front disc assemblies. Retained hubs carry the 14-inch rotor-and-hat assemblies, while the supplied radial brackets locate the AERO6 calipers. Confirm the hat register and stud fit before checking wheel spoke clearance; do not select solely by wheel diameter. The included braided flexlines must remain free of contact and tension throughout wheel movement. Installation also requires the dust-shield trimming and caliper-centering checks specified in the linked guide. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-20
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in
Installation documents
