Product details

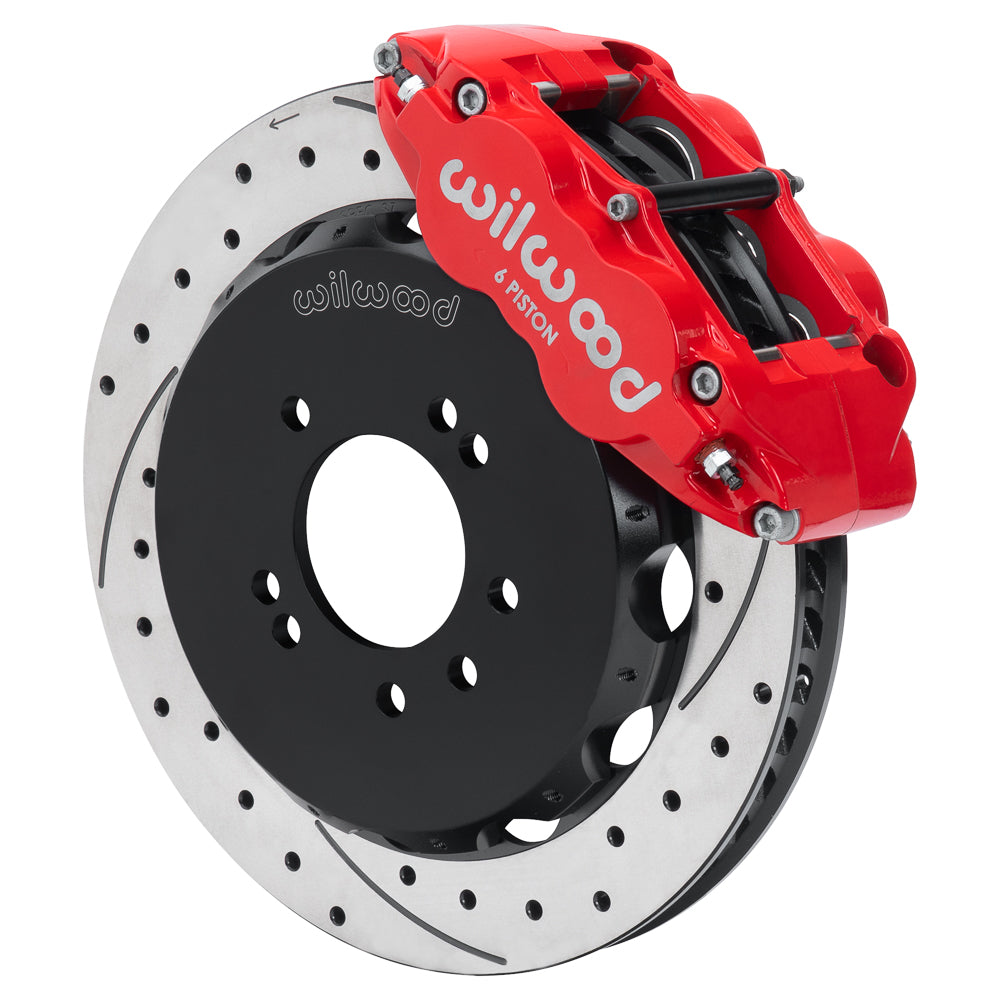

Red FNSL6R calipers accompany the 12.88-inch SRP rotors in this 1999–2002 Nissan Skyline package. The disc and hat assemblies mount on the retained factory hubs; supplied register rings and shims establish the required rotor and radial-caliper alignment. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.
Technical Details

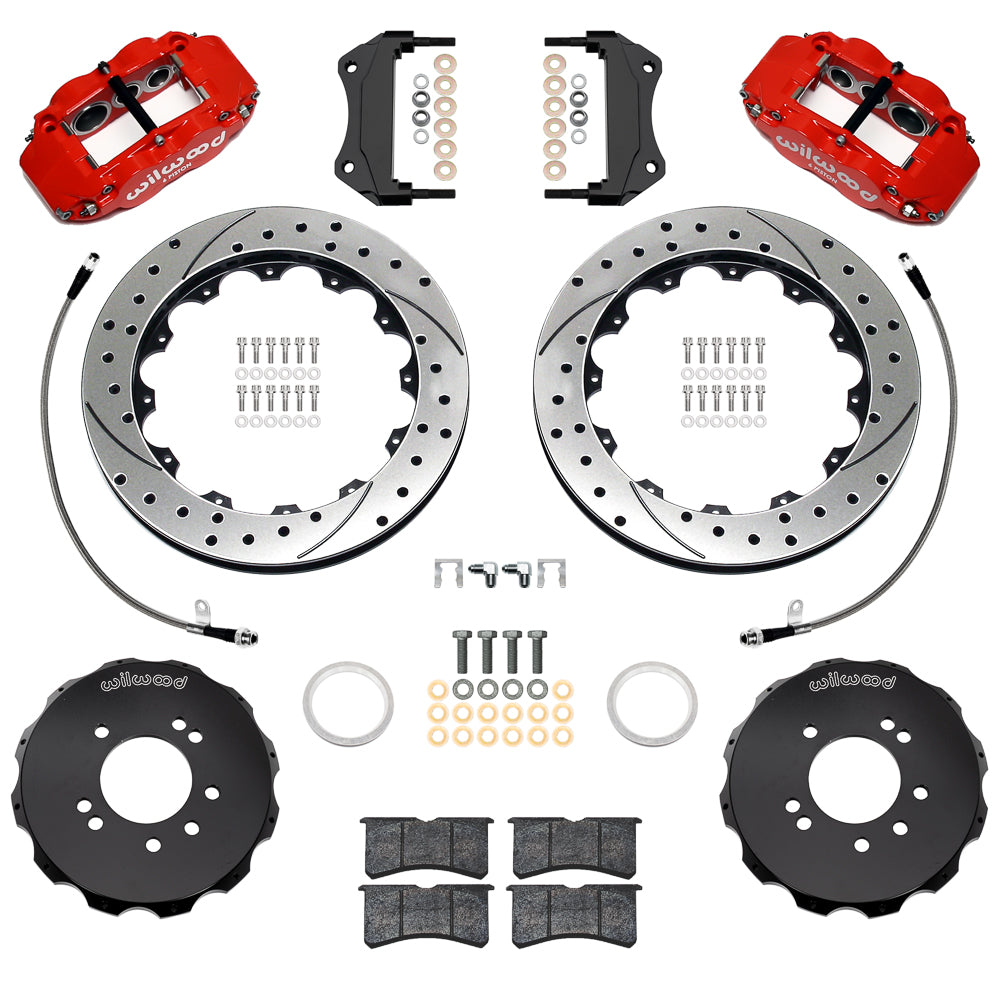

Kit contents and separate parts
- Manufacturer part number: 140-18256-DR
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Fitment & Compatibility
This front conversion is the 12.88-inch Superlite configuration for the 1999–2002 Nissan Skyline R34. The original hubs remain in place beneath the aluminum hats; inspect their registers and wheel studs before fitting the adapters. Use the supplied stainless braided hoses, checking both full steering lock and suspension movement after connection. The guide describes the necessary dust-shield modification and radial bracket alignment. A wheel that meets the nominal diameter requirement still needs to match this kit's spoke and barrel clearance diagram. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Calipers and pads
- Calipers: FNSL6R; 6 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.75 / 1.25 / 1.25 in
Installation documents
