Product details
Drilled and slotted rotors provide the friction-face configuration in this black R34 front brake set. Each 12.88 x 1.25-inch disc mounts to an aluminum hat, while the FNSL6R calipers use BP-10 pads and the kit includes braided hoses. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.
Fitment & Compatibility
This front conversion is the 12.88-inch Superlite configuration for the 1999–2002 Nissan Skyline R34. The original hubs remain in place beneath the aluminum hats; inspect their registers and wheel studs before fitting the adapters. Use the supplied stainless braided hoses, checking both full steering lock and suspension movement after connection. The guide describes the necessary dust-shield modification and radial bracket alignment. A wheel that meets the nominal diameter requirement still needs to match this kit's spoke and barrel clearance diagram. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Technical Details
Calipers and pads
- Calipers: FNSL6R; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.75 / 1.25 / 1.25 in
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

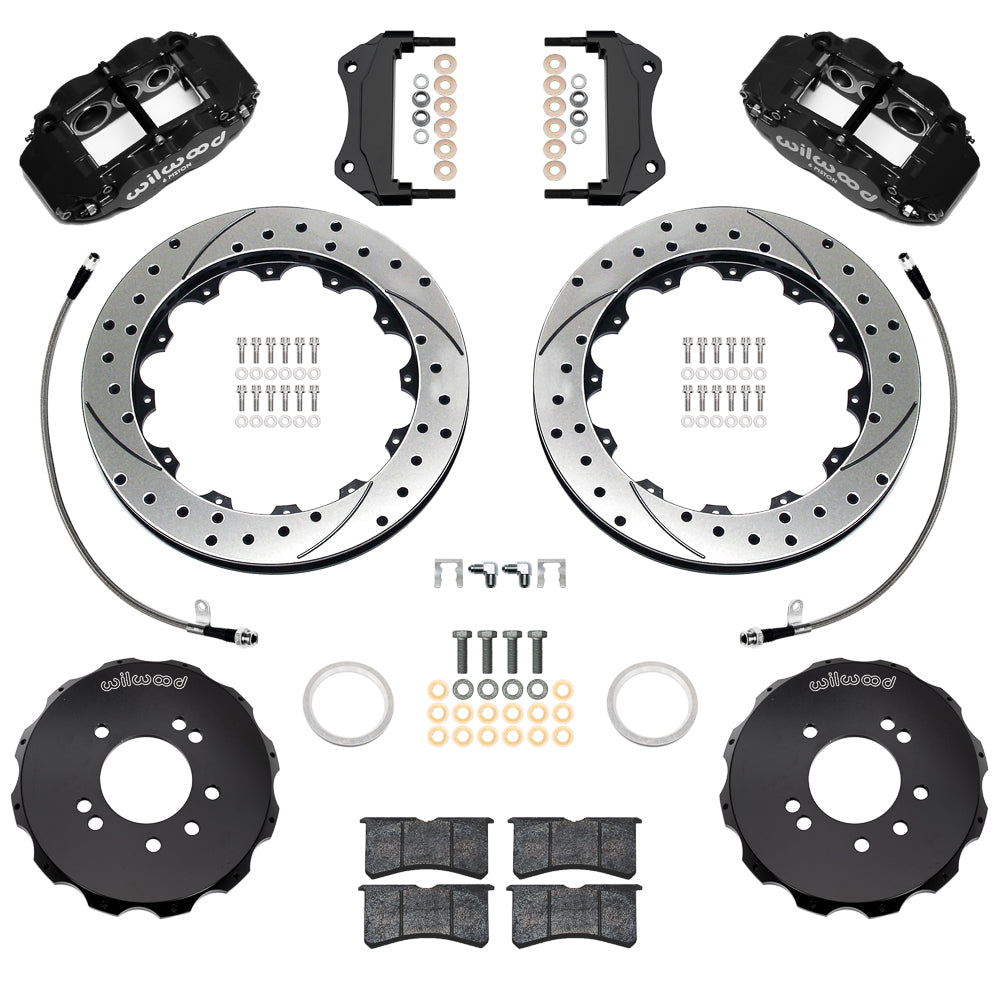

Kit contents and separate parts
- Manufacturer part number: 140-18256-D
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Installation documents
