Product details

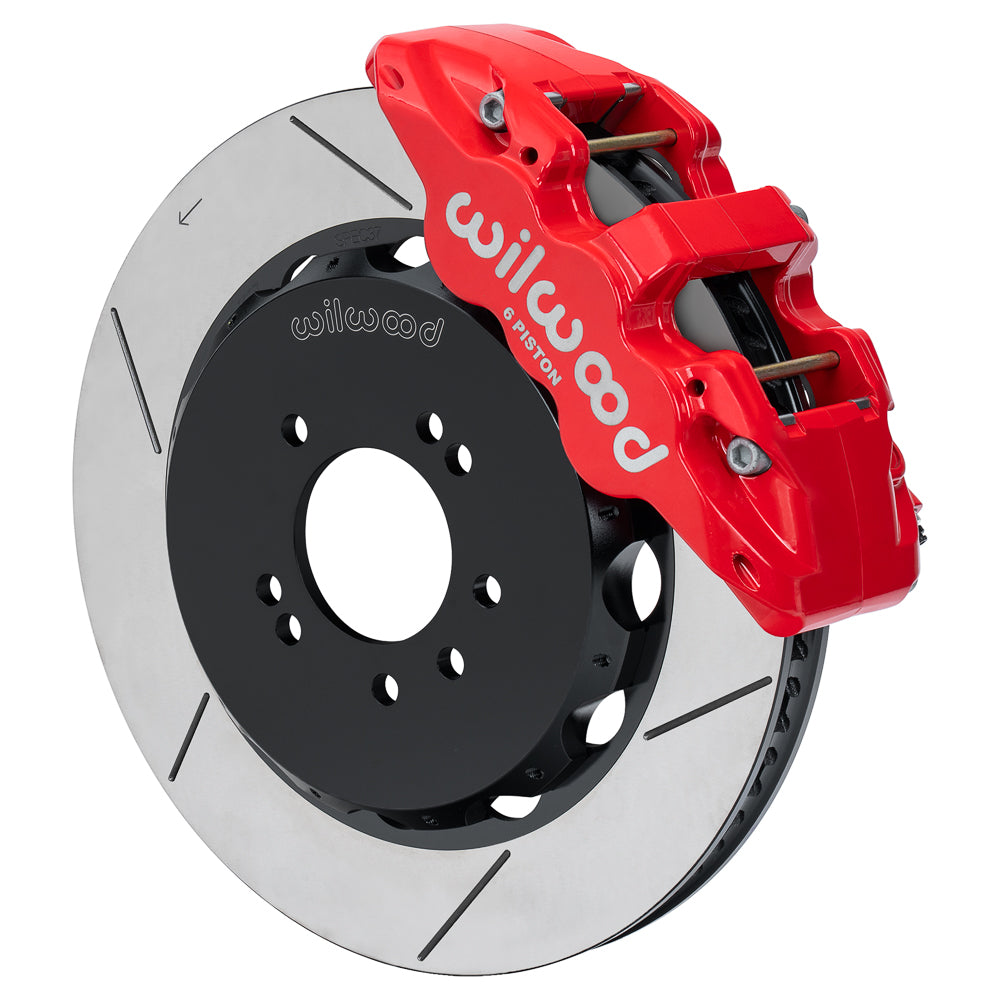

This red AERO6 front package gives the 1995–1998 Skyline a 14-inch GT slotted rotor arrangement with BP-20 pads. Black-coated aluminum hats carry the vented discs, and the supplied flexlines must be routed clear of the suspension throughout steering travel. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.
Technical Details

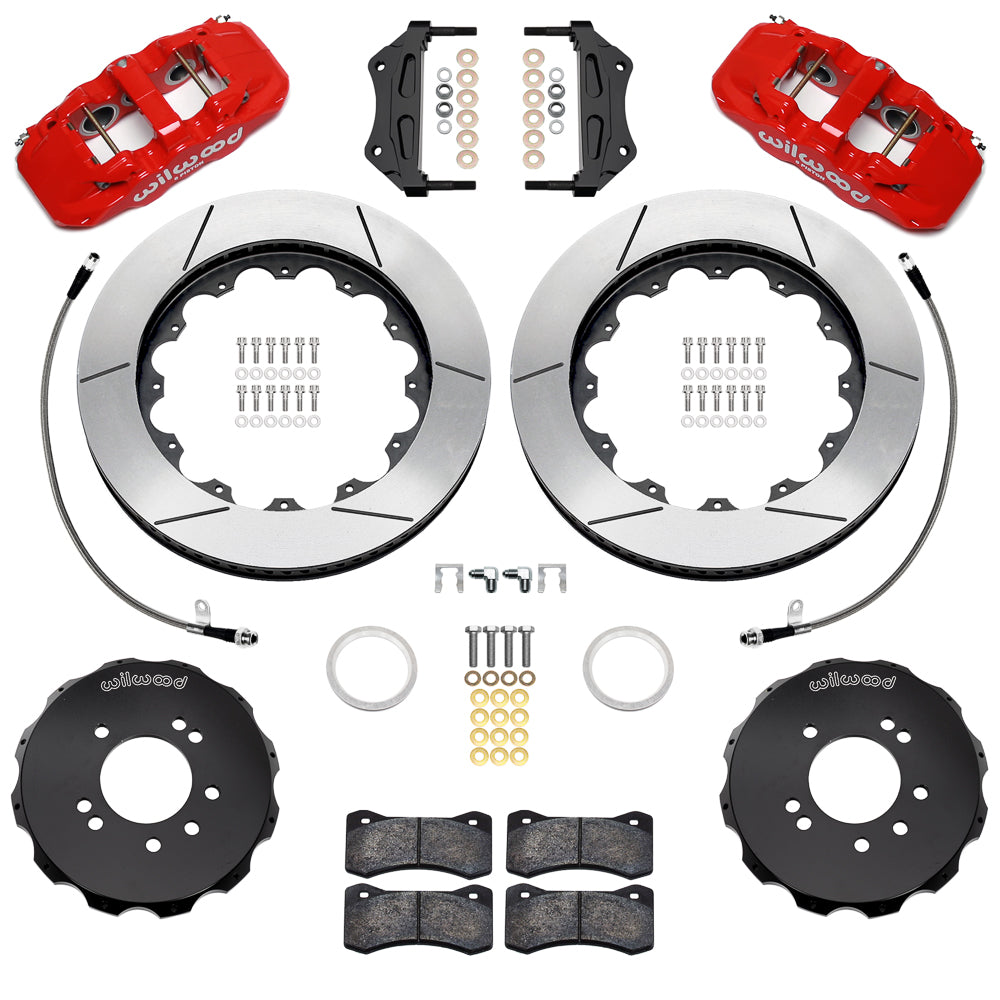

Kit contents and separate parts
- Manufacturer part number: 140-18254-R
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Fitment & Compatibility
Choose this AERO6 arrangement for the listed 1995–1998 Nissan Skyline R33 front hubs and disc spindles. The 14-inch rotors, larger pad footprint and six-piston calipers require clearance checks using the linked drawing. Mount the hats with the specified registration hardware and confirm the existing stud diameter and lug arrangement, particularly on modified hubs. The kit includes braided hydraulic hoses. Dust shields need the instructed trimming, and the final installation must verify caliper centering, hose movement and spoke clearance together. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Red Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-20
- Listed piston bore sizes: 1.75 / 1.38 / 1.38 in
Installation documents
