Product details

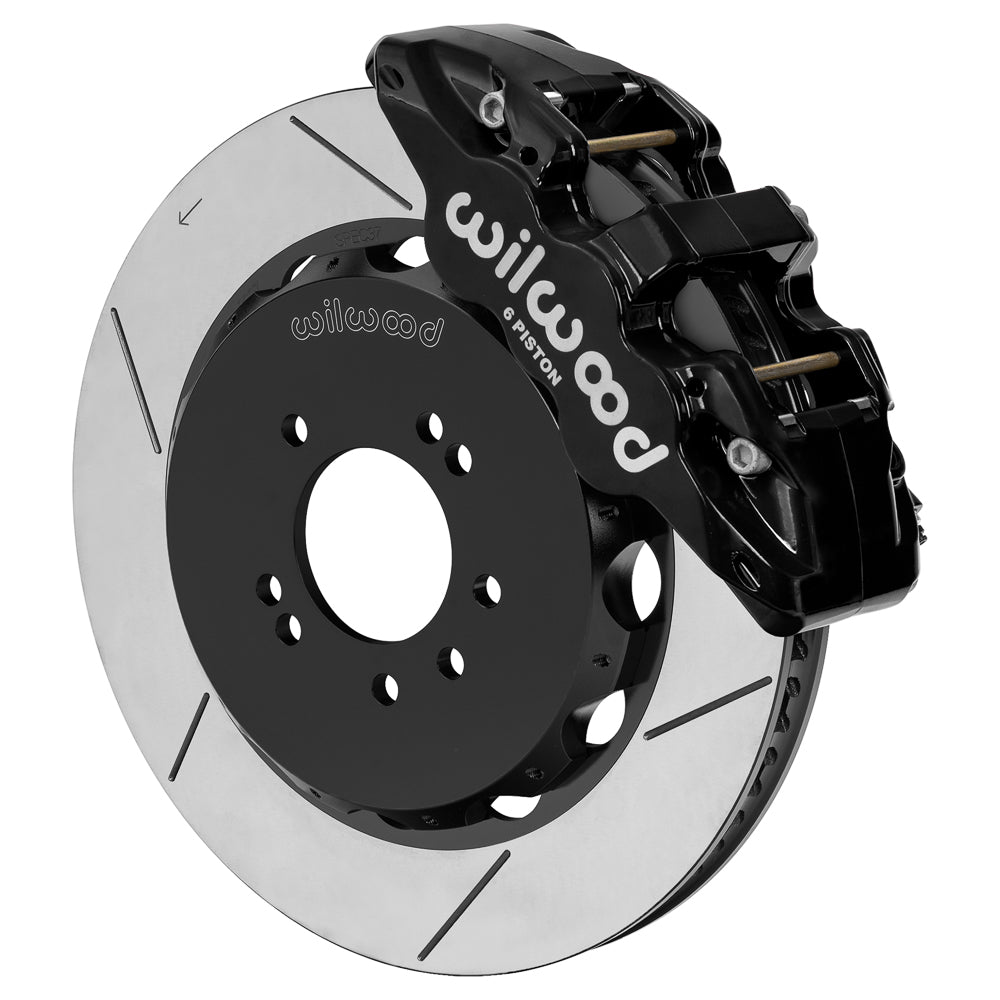

Black AERO6 calipers give this R33 Skyline front kit 5.40 square inches of effective piston area and an 11.1-square-inch pad area. The 14-inch GT rotors, BP-20 pads and braided hoses are supplied for the 1995–1998 factory hub application. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
Calipers and pads
- Calipers: AERO6; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-20
- Listed piston bore sizes: 1.75 / 1.38 / 1.38 in

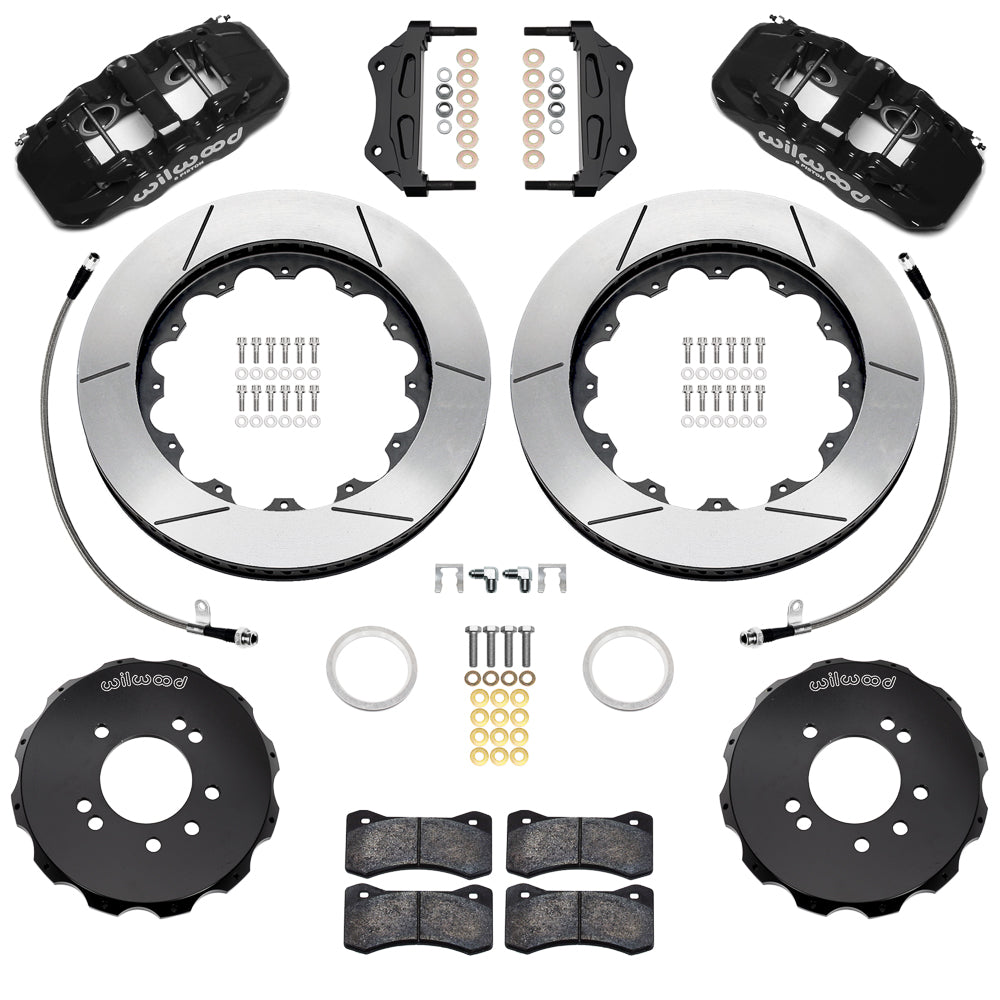

Kit contents and separate parts
- Manufacturer part number: 140-18254
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: included; DOT-compliant hoses
Installation documents
Rotors and mounting dimensions
- Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: GT Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 72 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Fitment & Compatibility
Choose this AERO6 arrangement for the listed 1995–1998 Nissan Skyline R33 front hubs and disc spindles. The 14-inch rotors, larger pad footprint and six-piston calipers require clearance checks using the linked drawing. Mount the hats with the specified registration hardware and confirm the existing stud diameter and lug arrangement, particularly on modified hubs. The kit includes braided hydraulic hoses. Dust shields need the instructed trimming, and the final installation must verify caliper centering, hose movement and spoke clearance together. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
