Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996) — Wilwood Drilled/Slotted Front Brakes, Red AERO6, 14.00-inch Rotors

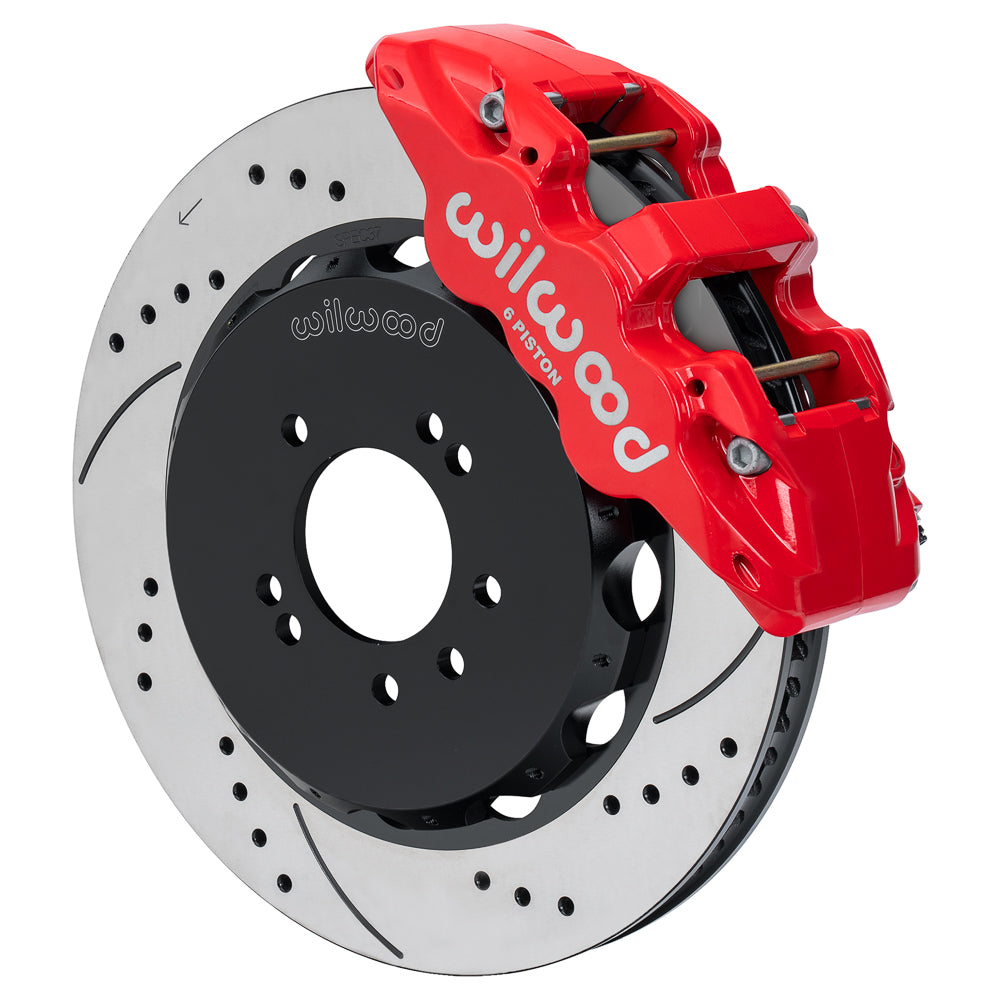

This red AERO6 package combines six-piston front calipers with 14.00 x 1.25-inch drilled and slotted rotors. The separate hats retain the factory Nissan hub bearings, and the supplied BP-10 pad set fits the AERO6's larger pad envelope. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

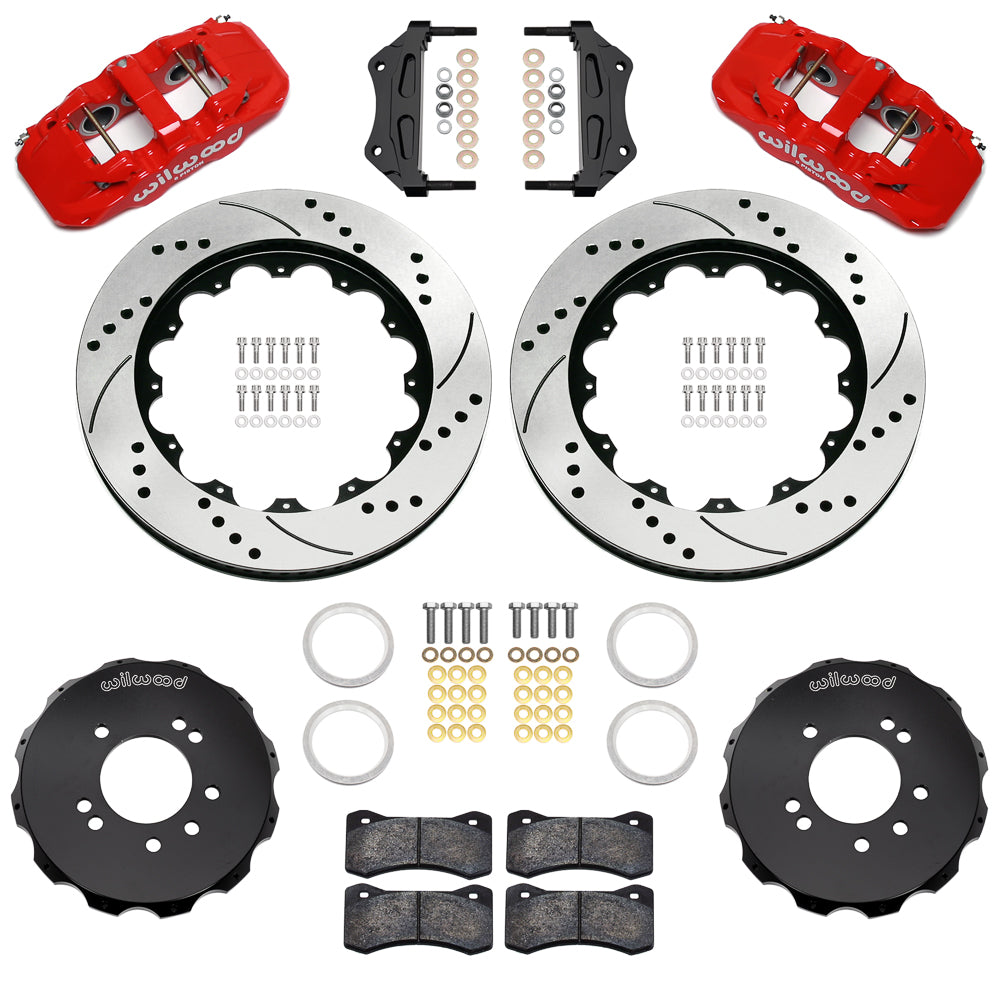

Kit contents and separate parts

• Manufacturer part number: 140-18251-DR
• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Related installation parts to select for the application: 220-18241; 220-12862

Fitment & Compatibility

The AERO6 brackets and two-piece rotors are intended for the listed Nissan factory front assemblies: 1989–1998 240SX, 1989–1994 Skyline and 1990–1996 300ZX. Keep the original hubs and match the hat's four-/five-lug clearance holes and registration adapter to them. The six-piston caliper and 14-inch rotor must clear the wheel spokes as well as the barrel. Consult the application table for ABS and trim details, then follow the guide's vehicle-specific fastener selection and dust-shield modification. Supply compatible brake flexlines separately and check their routing through steering and suspension travel. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: SRP Drilled & Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

• Calipers: AERO6; 6 pistons
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-18241, 220-12862
