Wilwood Drilled/Slotted 14.00-inch Rotors with Black AERO6 — Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996) Front Kit

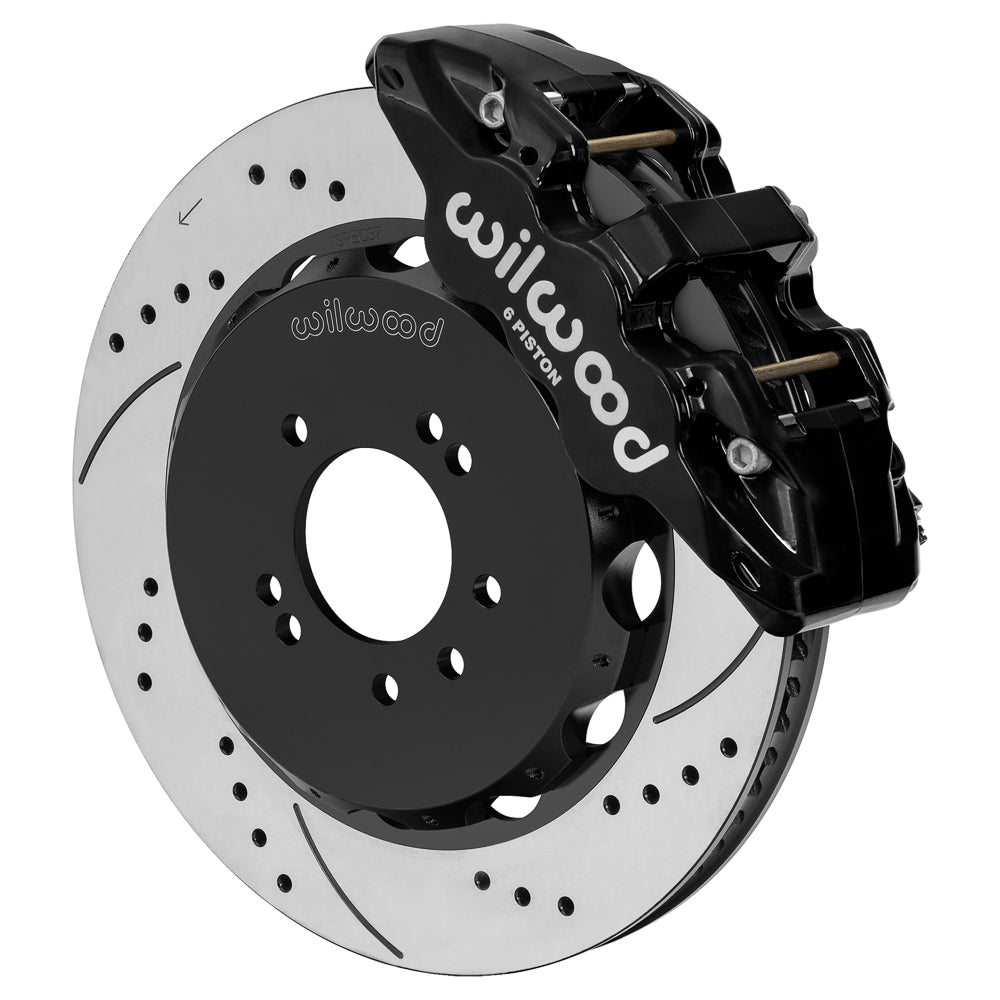

AERO6 six-piston calipers, BP-10 pads and drilled/slotted 14-inch discs make up this Nissan front friction package. The 1.25-inch vented rotors have 72 curved vanes and bolt to aluminum hats, with application-specific brackets positioning the black calipers around them. Wilwood Engineering designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977; it is based in Camarillo, California, and serves motorsport, street-performance and specialized applications.

Fitment & Compatibility

The AERO6 brackets and two-piece rotors are intended for the listed Nissan factory front assemblies: 1989–1998 240SX, 1989–1994 Skyline and 1990–1996 300ZX. Keep the original hubs and match the hat's four-/five-lug clearance holes and registration adapter to them. The six-piston caliper and 14-inch rotor must clear the wheel spokes as well as the barrel. Consult the application table for ABS and trim details, then follow the guide's vehicle-specific fastener selection and dust-shield modification. Supply compatible brake flexlines separately and check their routing through steering and suspension travel. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Technical Details

Calipers and pads

• Calipers: AERO6; 6 pistons
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: SRP Drilled & Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

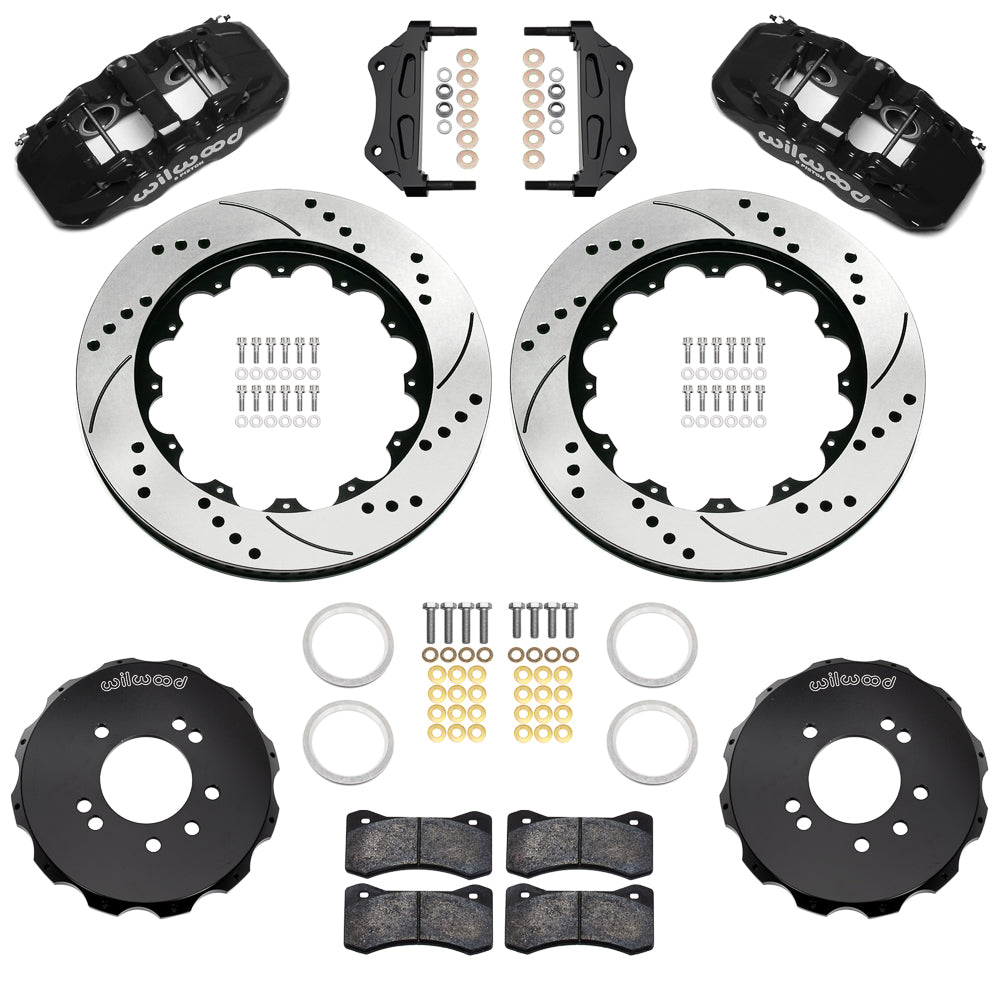

Kit contents and separate parts

• Manufacturer part number: 140-18251-D
• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Related installation parts to select for the application: 220-18241; 220-12862

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

With over 20 years of experience in brake systems and restoration, PMB Performance can help check the mounting arrangement, wheel clearance and remaining installation parts for your build.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-18241, 220-12862
