Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996) Front Brake Assembly: 14.00-inch GT Slotted Rotors, Black Wilwood AERO6

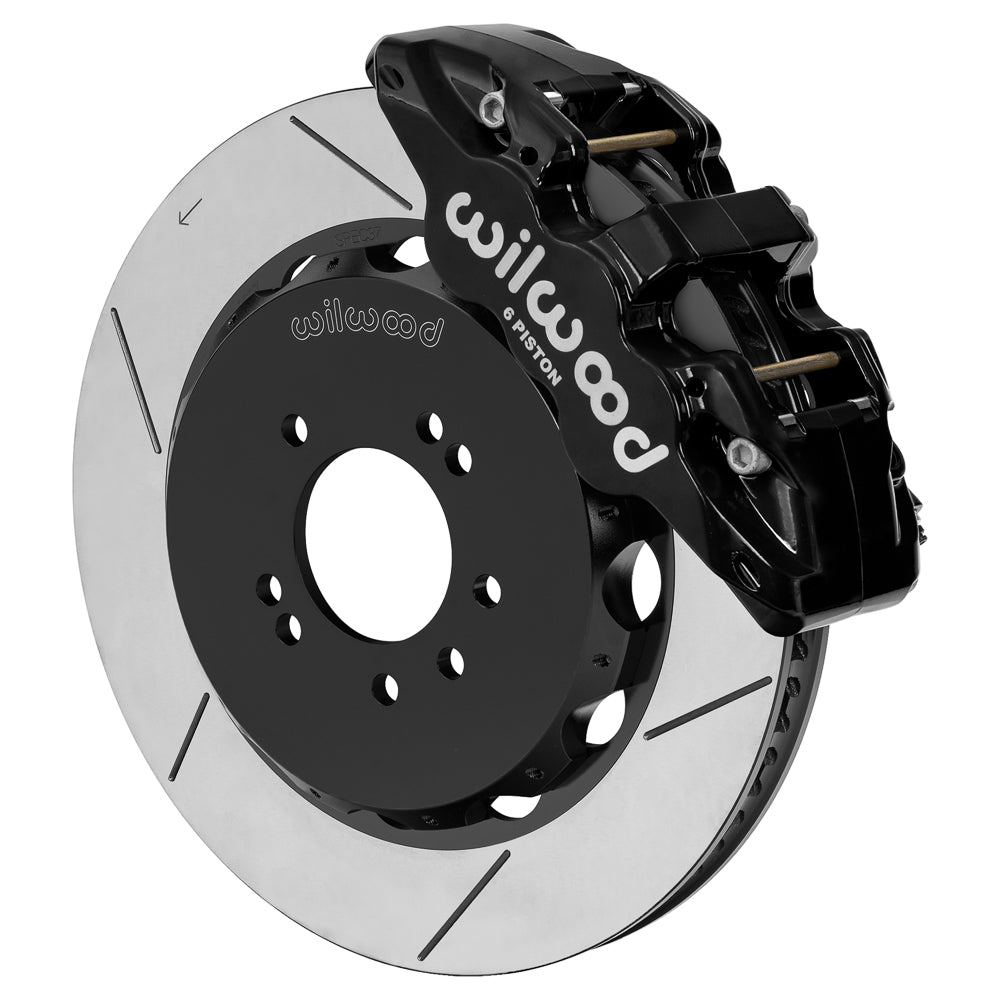

The AERO6 caliper brings an 11.1-square-inch pad area to this black 14-inch Nissan front kit. Six stainless pistons act on BP-20 pads against GT slotted Spec-37 rotors, with aluminum hats mounting the discs to the existing four- or five-lug hubs. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.

Technical Details

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

• Calipers: AERO6; 6 pistons
• Caliper finish: Black Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-20
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

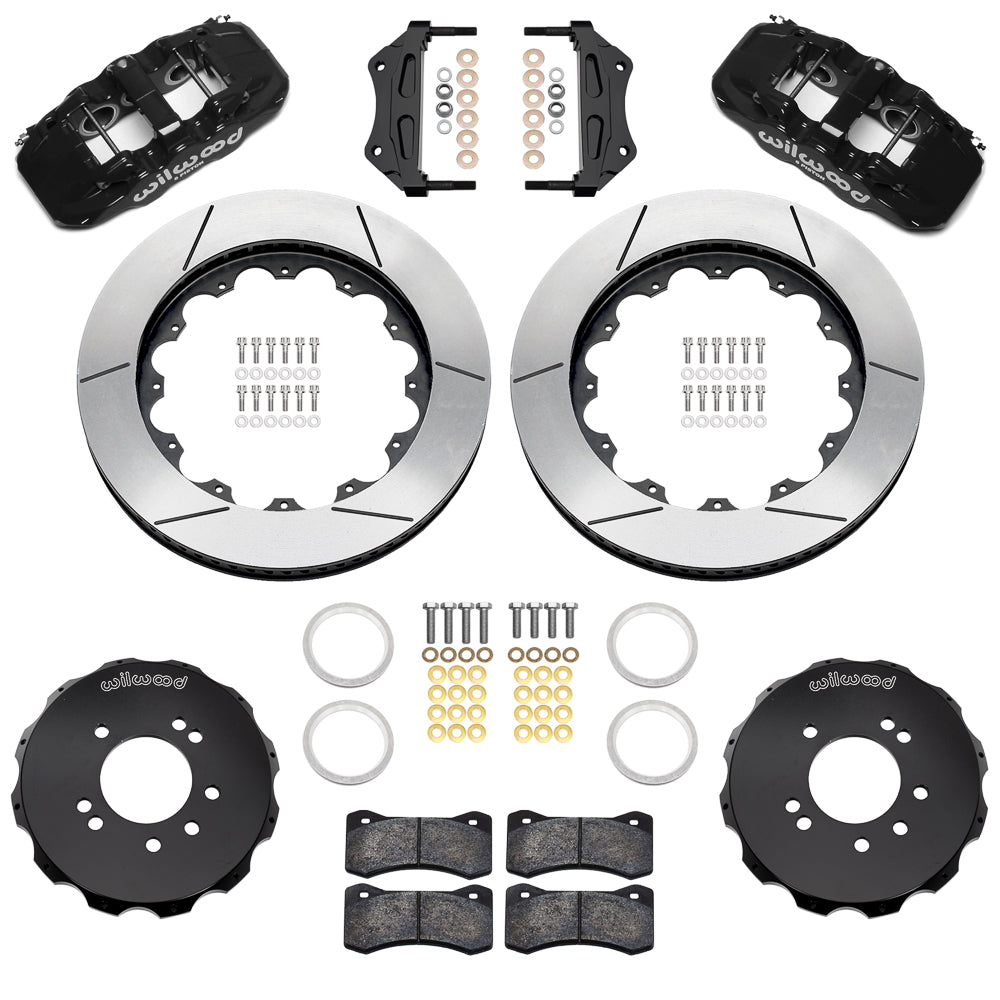

Kit contents and separate parts

• Manufacturer part number: 140-18251
• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Related installation parts to select for the application: 220-18241; 220-12862

Fitment & Compatibility

The AERO6 brackets and two-piece rotors are intended for the listed Nissan factory front assemblies: 1989–1998 240SX, 1989–1994 Skyline and 1990–1996 300ZX. Keep the original hubs and match the hat's four-/five-lug clearance holes and registration adapter to them. The six-piston caliper and 14-inch rotor must clear the wheel spokes as well as the barrel. Consult the application table for ABS and trim details, then follow the guide's vehicle-specific fastener selection and dust-shield modification. Supply compatible brake flexlines separately and check their routing through steering and suspension travel. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-18241, 220-12862
