Front Wilwood FNSL6R Brake Conversion — Red Calipers, 14.00-inch GT Slotted, Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996)

GT slotted rotor faces and red powder-coated calipers identify this 14-inch Superlite front assembly. The vented Spec-37 discs and BP-20 pads are supplied as an axle package, retaining the Nissan hubs and requiring separately selected hoses for the vehicle's hydraulic connections. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications.

Technical Details

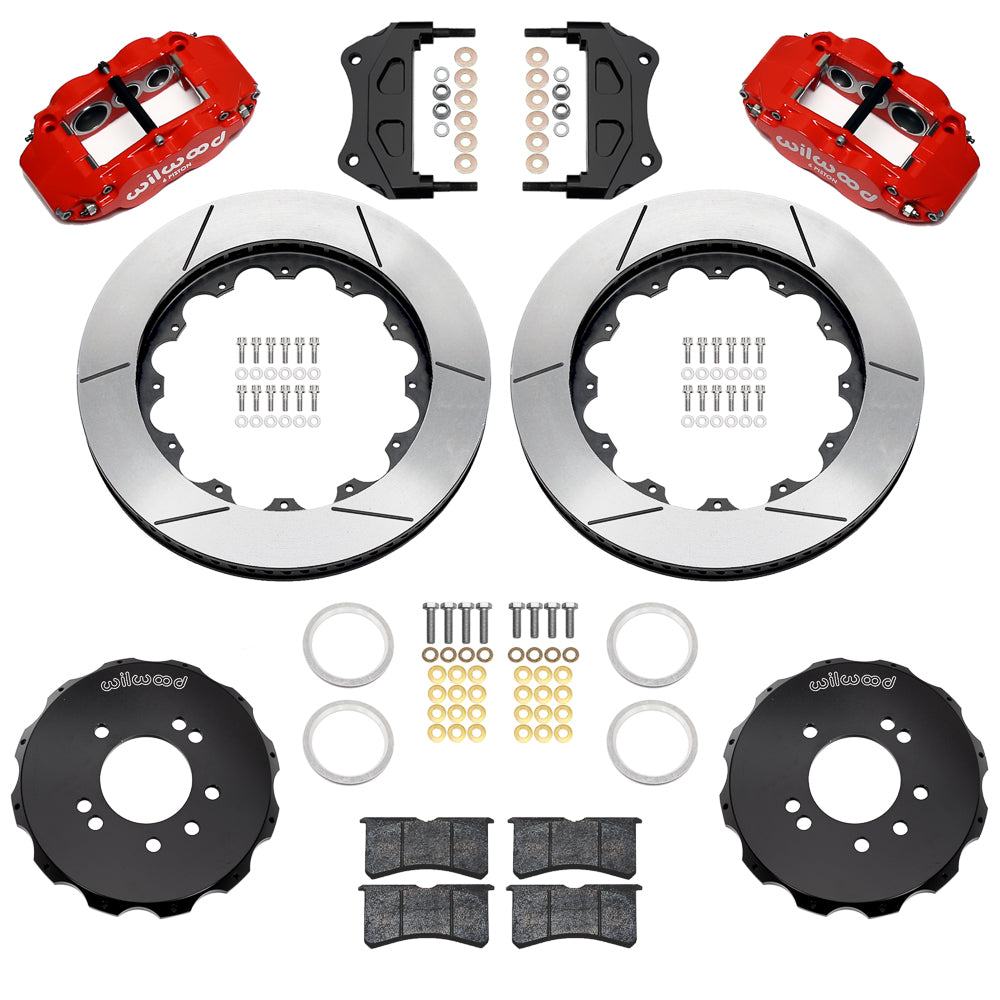

Kit contents and separate parts

• Manufacturer part number: 140-18247-R
• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Related installation parts to select for the application: 220-18241; 220-12862

Fitment & Compatibility

Use this 14-inch package on the factory disc spindles and hubs specified for Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996). Its larger rotor envelope makes a wheel-template check essential before assembly. The retained hub determines the wheel bolt pattern; align the four- or five-lug hat holes with that hub and fit the correct register adapter. The installation guide distinguishes Nissan mounting-bolt arrangements and requires dust-shield trimming. No flexlines are supplied: choose the correct hose kit for the vehicle. Confirm the individual ABS and submodel restrictions in the table. Nominal minimum wheel diameter: 18 in; 457.2 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Rotors and mounting dimensions

• Rotors: 14.00 in; 355.6 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: GT Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 72 curved
• Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

• Calipers: FNSL6R; 6 pistons
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-20
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance has supported brake and restoration projects for more than 20 years. Share your vehicle and installed chassis hardware with us for help selecting the correct brake package.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-18241, 220-12862
