Red FNSL6R Calipers and 12.88-inch Drilled/Slotted Rotors — Wilwood Front Kit for Nissan 240SX (1989–1998), Skyline (1989–1994) and 300ZX (1990–1996)

Red powder-coated six-piston calipers sit over black-coated SRP rotors in this 12.88-inch Nissan front brake package. The 1.25-inch-thick vented discs use aluminum hats, and BP-10 pads are included; installation also requires the correct vehicle-specific hydraulic hoses. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its components include calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to suit the complete brake system.

Technical Details

Rotors and mounting dimensions

• Rotors: 12.88 in; 327.15 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
• Friction faces: SRP Drilled & Slotted
• Rotor coating/finish: Black Electro Coat
• Internal vanes: 48 curved
• Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
• Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm

Calipers and pads

• Calipers: FNSL6R; 6 pistons
• Caliper finish: Red Powder Coat
• Body construction: Forged aluminum
• Pistons: stainless
• Mounting: radial
• Hydraulic inlet: 1/8-27 NPT
• Included pad compound: BP-10
• Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

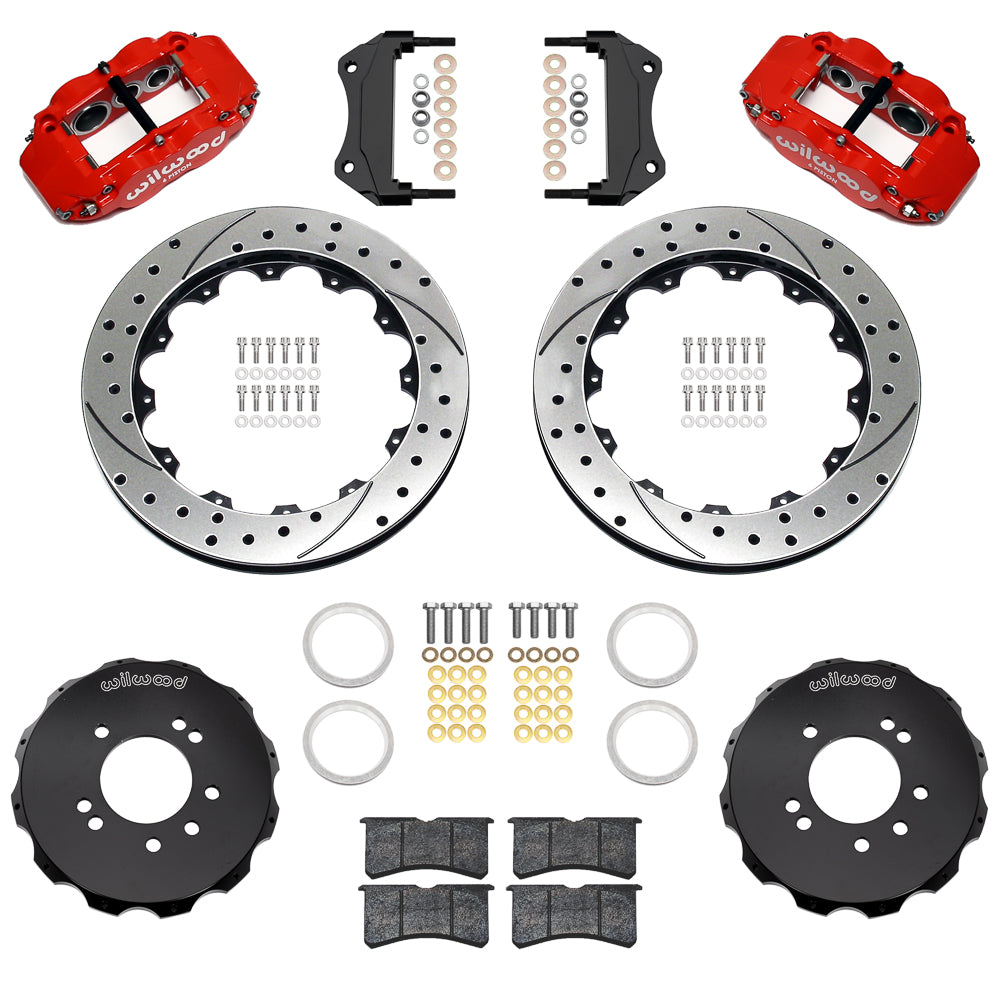

Kit contents and separate parts

• Manufacturer part number: 140-18243-DR
• Supply: one brake kit; components for both sides of the axle
• Mounting hardware: included
• Hubs: not included
• Spindles, master cylinder and brake booster: not included
• Brake flexlines: not included
• Related installation parts to select for the application: 220-18241; 220-12862

Fitment & Compatibility

Retains the factory front hubs on the specified 1989–1998 Nissan 240SX, 1989–1994 Skyline and 1990–1996 300ZX applications. The hat accepts four- and five-lug 4.50-inch stud patterns; this clearance arrangement does not convert the hub to another wheel pattern. Select the registration adapters and mounting bolts for the particular Nissan upright, following the instructions for the 240SX and Skyline. Trim the dust shield as directed. This 12.88-inch package requires separately purchased vehicle-specific flexlines. The table identifies the ABS and trim restrictions that must also be satisfied. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.

Installation documents

• Installation instructions

WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

PMB Performance brings more than 20 years of brake and restoration experience to parts selection. Contact us with the installed spindle or axle details if you need help matching this kit.

Vehicle Applications

Application Notes

1. Line kit included (manufacturer): None
2. Front line-kit reference: 220-18241, 220-12862
