Product details

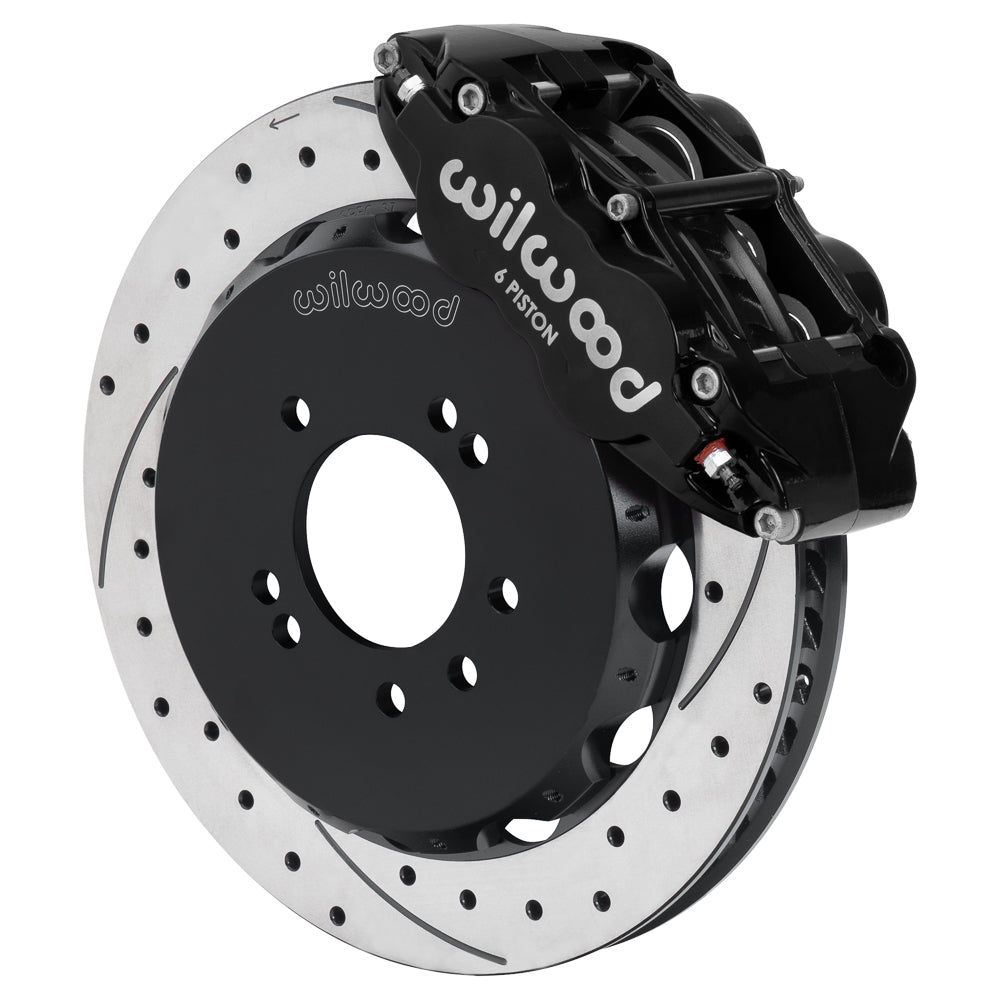

Drilled and slotted 12.88-inch rotors distinguish this black Superlite 6R front kit for Nissan 240SX, Skyline and 300ZX applications. BP-10 pads work in radial-mount forged calipers, and the two-piece rotor assemblies retain the existing hubs rather than supplying replacements. Wilwood Engineering, based in Camarillo, California, has designed and manufactured disc brake systems since its founding by Bill Wood in 1977. The range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
Calipers and pads
- Calipers: FNSL6R; 6 pistons
- Caliper finish: Black Powder Coat
- Body construction: Forged aluminum
- Pistons: stainless
- Mounting: radial
- Hydraulic inlet: 1/8-27 NPT
- Included pad compound: BP-10
- Listed piston bore sizes: 1.62 / 1.12 / 1.12 in

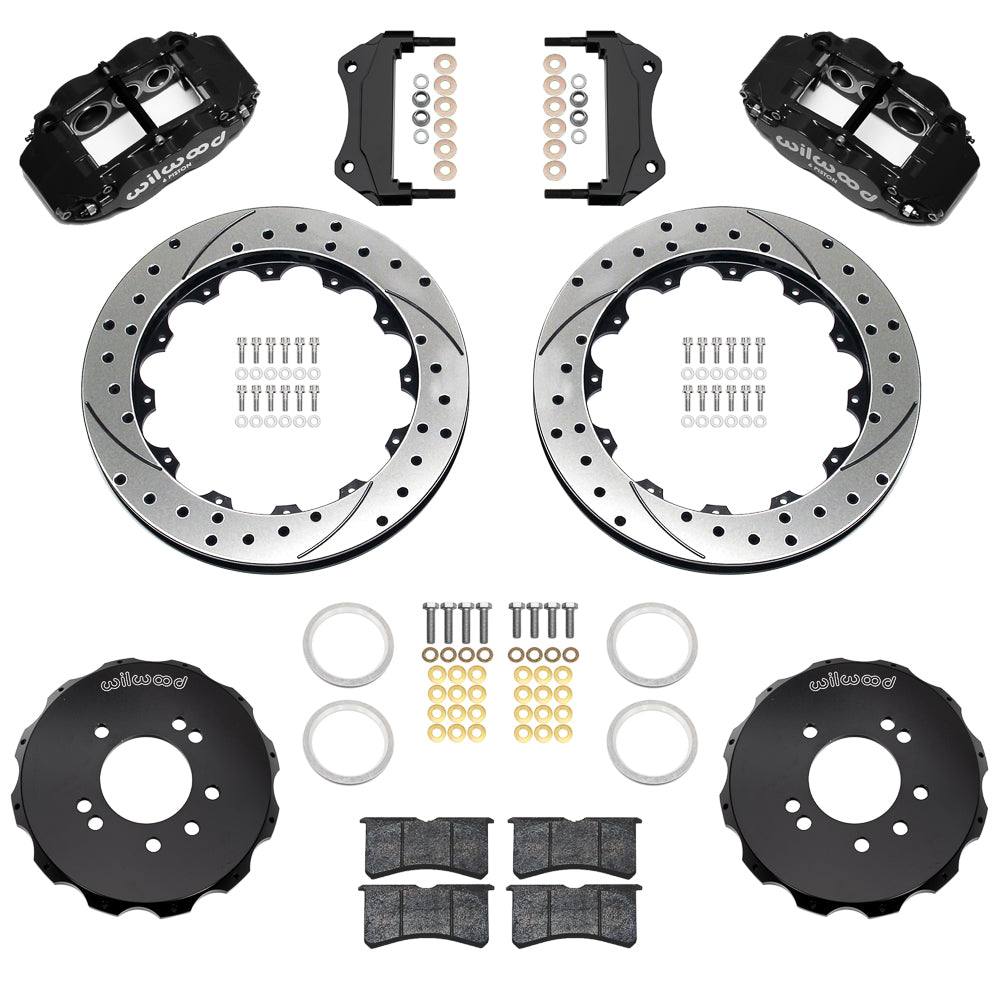

Kit contents and separate parts
- Manufacturer part number: 140-18243-D
- Supply: one brake kit; components for both sides of the axle
- Mounting hardware: included
- Hubs: not included
- Spindles, master cylinder and brake booster: not included
- Brake flexlines: not included
- Related installation parts to select for the application: 220-18241; 220-12862
Installation documents
Rotors and mounting dimensions
- Rotors: 12.88 in; 327.15 mm diameter x 1.25 in; 31.75 mm thick; vented Spec-37 Iron
- Friction faces: SRP Drilled & Slotted
- Rotor coating/finish: Black Electro Coat
- Internal vanes: 48 curved
- Hats: Aluminum; Black E-Coat; 0.595-inch hat offset
- Rotor/hat wheel-stud clearance patterns: 4 x 4.5 in; 4 x 114.3 mm; 5 x 4.5 in; 5 x 114.3 mm
Fitment & Compatibility
Retains the factory front hubs on the specified 1989–1998 Nissan 240SX, 1989–1994 Skyline and 1990–1996 300ZX applications. The hat accepts four- and five-lug 4.50-inch stud patterns; this clearance arrangement does not convert the hub to another wheel pattern. Select the registration adapters and mounting bolts for the particular Nissan upright, following the instructions for the 240SX and Skyline. Trim the dust shield as directed. This 12.88-inch package requires separately purchased vehicle-specific flexlines. The table identifies the ABS and trim restrictions that must also be satisfied. Nominal minimum wheel diameter: 17 in; 431.8 mm. The linked wheel-clearance diagram must confirm barrel and spoke clearance; wheel diameter alone does not guarantee fit.
WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Our team at PMB Performance draws on 20+ years of brake and restoration work. We can help you review the application requirements before you assemble the system.
Vehicle Applications
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1989-1993 | Nissan | 240SX | w/ Antilock Brakes | Disc | Disc | Front Kit | 1, 2 | |
| 1989-1993 | Nissan | 240SX | w/o Antilock Brakes | Disc | Disc | Front Kit | 1, 2 | |
| 1990-1996 | Nissan | 300ZX | 2+2 | 2+2 | Disc | Disc | Front Kit | 1, 2 |
| 1990-1996 | Nissan | 300ZX | Base | Base | Disc | Disc | Front Kit | 1, 2 |
| 1990-1996 | Nissan | 300ZX | Turbo | Turbo | Disc | Disc | Front Kit | 1, 2 |
| 1994-1998 | Nissan | 240SX | 4 Lug w/o Antilock Brakes | Disc | Disc | Front Kit | 1, 2 | |
| 1994-1995 | Nissan | 240SX | 5 Lug w/ Antilock Brakes | Disc | Disc | Front Kit | 1, 2 | |
| 1994-1998 | Nissan | 240SX | 5 Lug w/o Antilock Brakes | Disc | Disc | Front Kit | 1, 2 | |
| 1996-1998 | Nissan | 240SX | SE Models 5 Lug w/Antilock Brakes | Disc | Disc | Front Kit | 1, 2 |
Application Notes
- Line kit included (manufacturer): None
- Front line-kit reference: 220-18241, 220-12862
